MULTILIFT Ultima S Flex - Page 68

68
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
User Manual

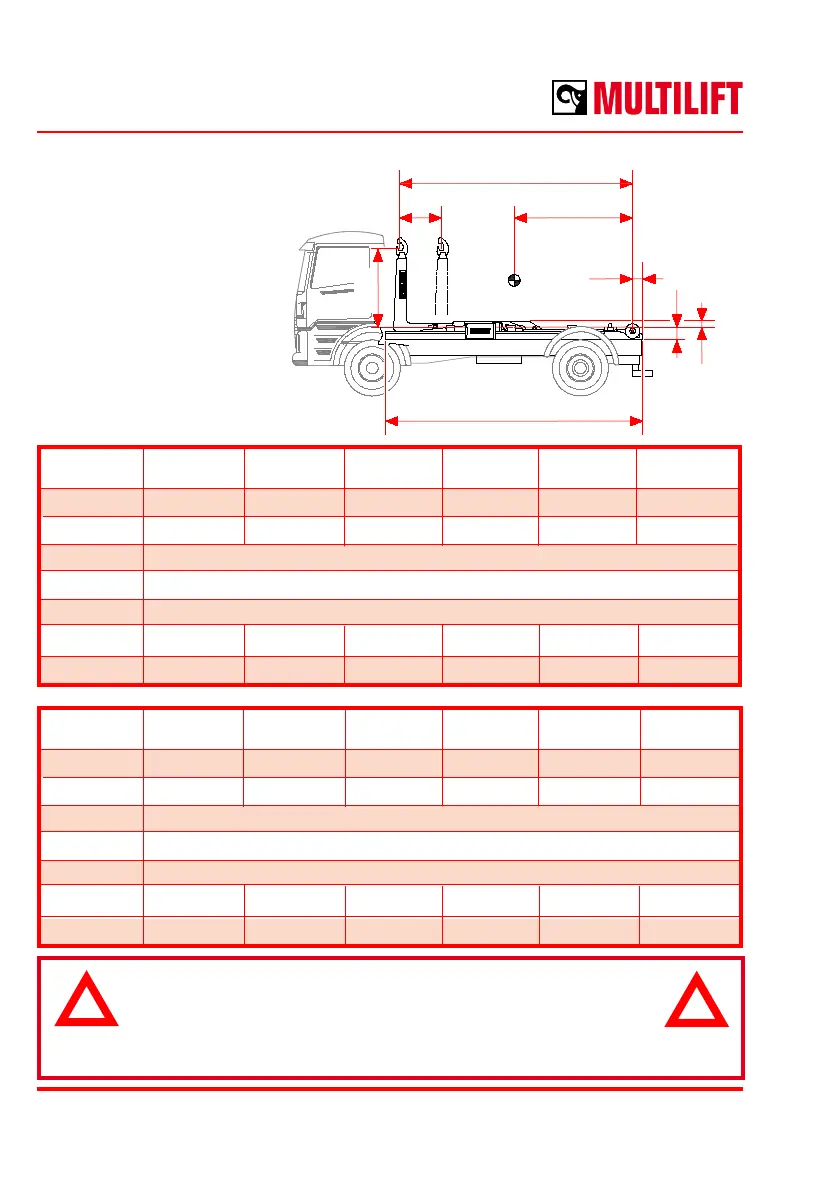

Ult. 14S 41 43 46 51 53 56
G in (mm) 160.6 (4080) 168.1 (4270) 180.3 (4580) 200 (5080) 211 (5360) 218.9 (5560)
HM in (mm) 35.4 (900) 35.4 (900) 35.4 (900) 43.3 (1100) 43.3 (1100) 51.2 (1300)
h in (mm) 9.06 (230) [special 9.84 (250)]
H in (mm) See table “Container country specic standard dimensions”
t in (mm) 4.92 (125) [special 4.13 (105)]
B in (mm) 85.8 (2180) 129.5 (2290) 96.5 (2450) 106.3 (2700) 112.2 (2850) 116.1 (2950)
SL in (mm) 189.3 (4808) 197.2 (5008) 209 (5308) 226.7 (5758) 256.2 (6508) 256.2 (6508)
Ult. 16S 46 51 53 56 59 61
G in (mm) 180.3 (4580) 200 (5080) 211 (5360) 218.9 (5560) 230.7 (5860) 239.4 (6080)
HM in (mm) 35.4 (900) 43.3 (1100) 43.3 (1100) 51.2 (1300) 57.1 (1450) 57.1 (1450)
h in (mm) 9.06 (230) [special 9.84 (250)]
H in (mm) See table “Container country specic standard dimensions”
t in (mm) 4.92 (125) [special 4.13 (105)]
B in (mm) 96.5 (2450) 106.3 (2700) 112.2 (2850) 116.1 (2950) 118.1 (3000) 124 (3150)
SL in (mm) 209 (5308) 226.7 (5758) 256.2 (6508) 256.2 (6508) 256.2 (6508) 268 (6808)
HM
G
B
SL
6.89
(175)
h
t
H
!
!
Ultima 14S
Ultima 16S
dimensions
WARNING!
When transporting the container in position HM,
the hooklift equipment must have hydraulic body locks.
