MULTILIFT Ultima S Flex - Page 74

74
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
User Manual
!
!
Ultima 18SL
Ultima 21SL

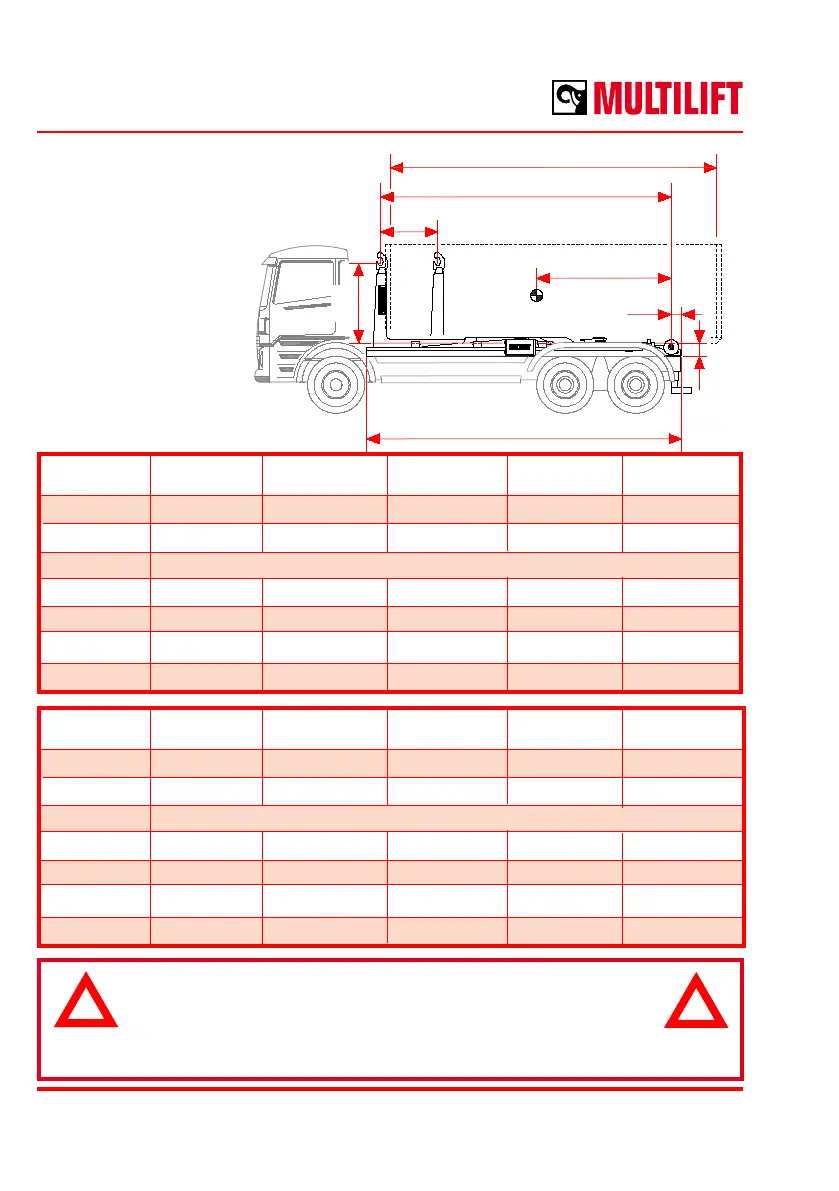

dimensions
WARNING!
When transporting the container in position HM,
the hooklift equipment must have hydraulic body locks.
SL
G
B
HM
H
LR
Ult. 18SL 49 51 52 53 56
G in (mm) 191.7 (4870) 200.8 (5100) 206.3 (5240) 211.8 (5380) 220.5 (5600)
HM in (mm) 43.3 (1100) 43.3 (1100) 43.3 (1100) 43.3 (1100) 43.3 (1100)
H in (mm) See table “Container country specic standard dimensions”
B in (mm) 113.6 (2885) 118.1 (3000) 120.9 (3070) 124 (3150) 129.9 (3300)
SL in (mm) 218.2 (5543) 230 (5843) 230 (5843) 241.9 (6143) 253.7 (6443)
LR (ft) 13.4 - 19.3 14.1 - 20.0 14.6 - 20.7 15.1 - 21.0 15.7 - 21.6
LR (m) 4.1 - 5.9 4.3 - 6.1 4.5 - 6.3 4.6 - 6.4 4.8 - 6.6
Ult. 21SL 49 51 52 53 56
G in (mm) 191.7 (4870) 200.8 (5100) 206.3 (5240) 211.8 (5380) 220.5 (5600)
HM in (mm) 43.3 (1100) 43.3 (1100) 43.3 (1100) 43.3 (1100) 43.3 (1100)
H in (mm) See table “Container country specic standard dimensions”
B in (mm) 113.6 (2885) 118.1 (3000) 120.9 (3070) 124 (3150) 129.9 (3300)
SL in (mm) 218.2 (5543) 230 (5843) 230 (5843) 241.9 (6143) 253.7 (6443)
LR (ft) 13.4 - 19.3 14.1 - 20.0 14.6 - 20.7 15.1 - 21.0 15.7 - 21.6
LR (m) 4.1 - 5.9 4.3 - 6.1 4.5 - 6.3 4.6 - 6.4 4.8 - 6.6
4.3
(110)
7.7
(195)
