Chapter 3 – Using t
he Web Management Sof
tware
MultiModem rCell User Guide
83

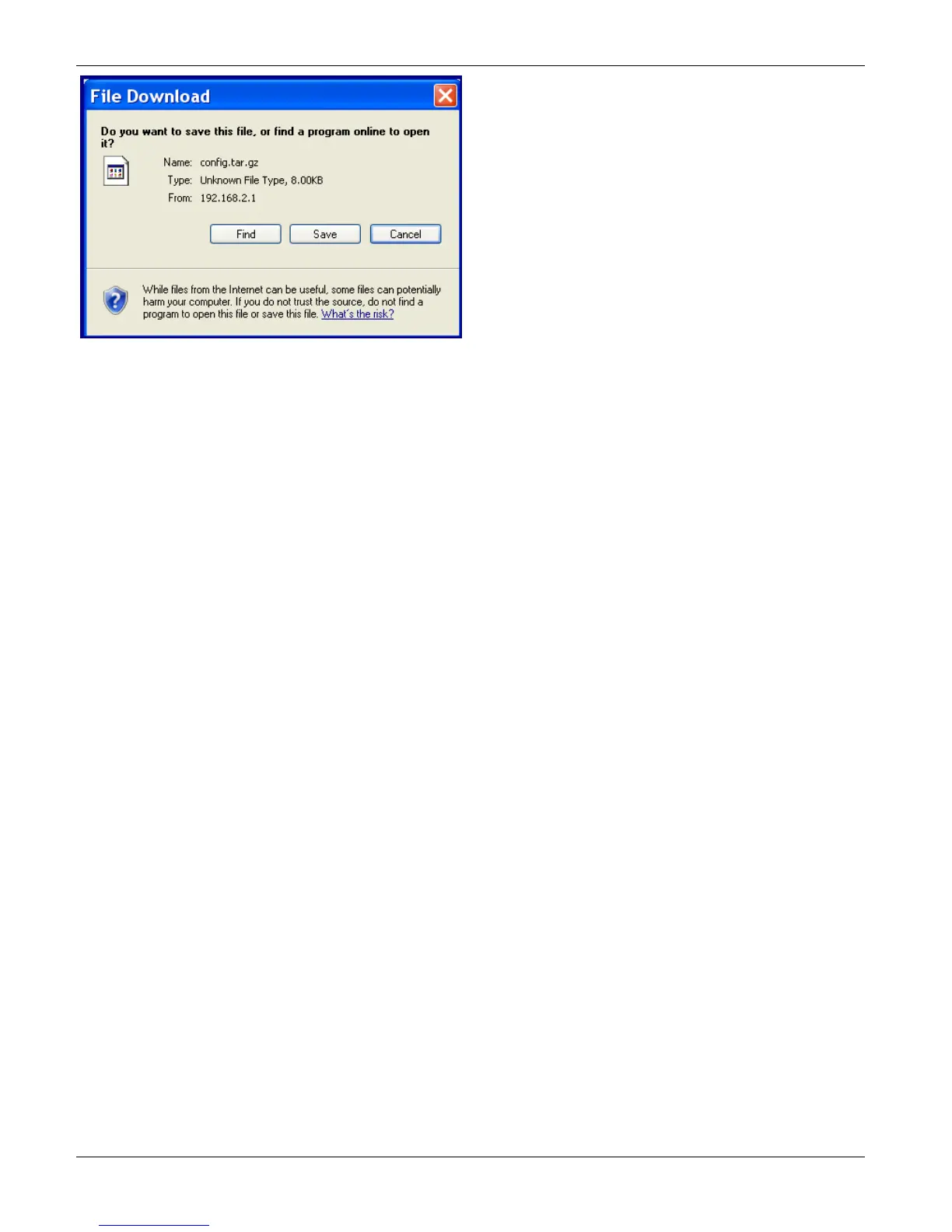

Click the
Find
,
Save
, or
Cancel
buttons as desired.
Tools, Save Configuration
Click this option to s
ave the configuration.
