Munsch NPC Series - Layout and function

Layout and function
3 Layout and function
3.1 Labels
3.1.1 Type plate
MUNSCH Chemie-Pumpen GmbH
D-56235 Ransbach-Baumbach
n
W.-Nr.
Lfrd.
impeller
serial-no.
P
Q
type
Typ
-1
Nm
M
kg/dm
Baujahr
H
kW
m /h
3
year
m
3
min
9
8
7
3
4
5
6
1
2
10

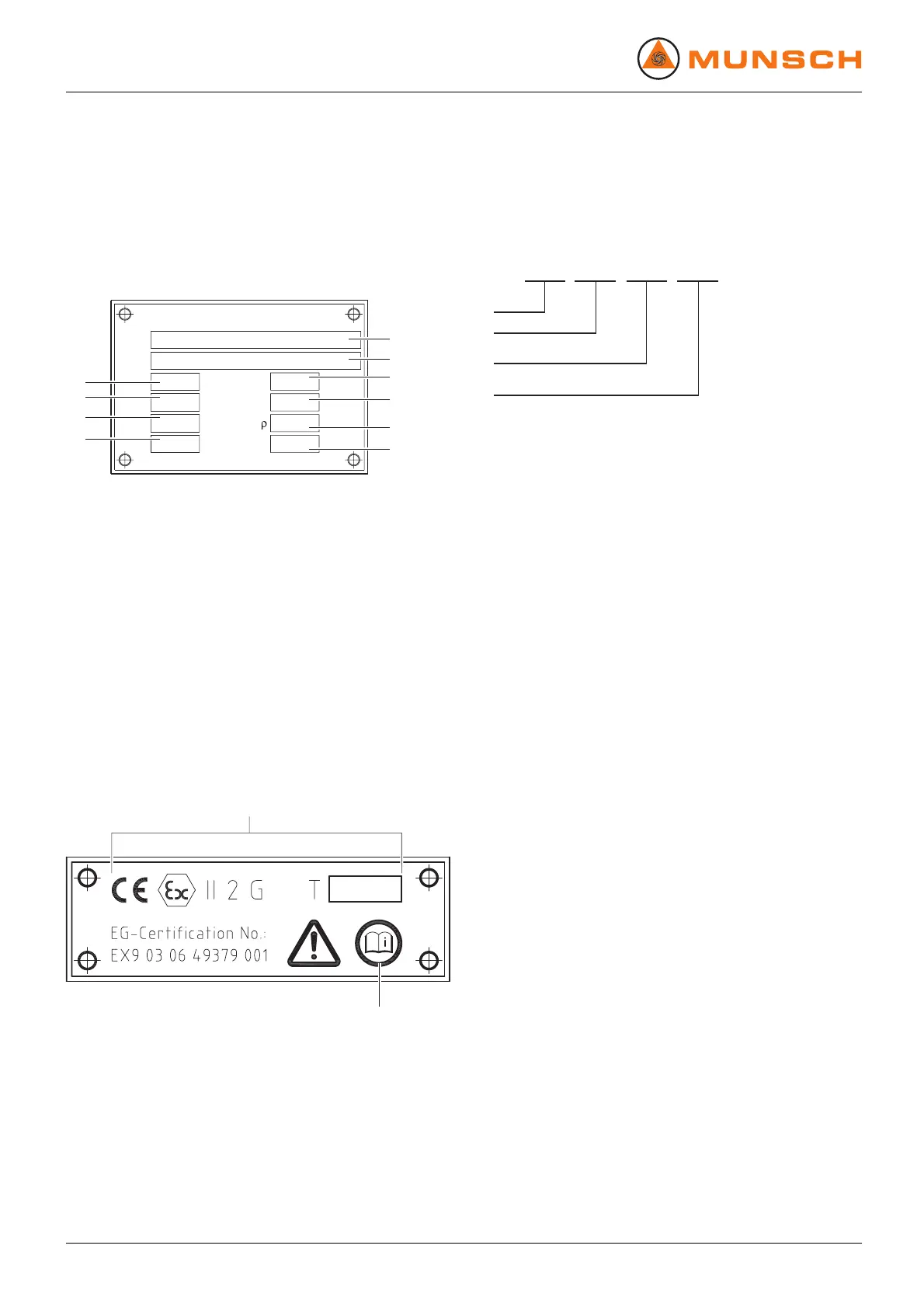

Fig. 1 Type plate (example)
1Pumptype
2 Serial number
3 Construction year
4 Total differential head
5 Density
6Torque
7 Speed
8 Power consumption
9Flowrate
10 Impeller diameter
3.1.2 ATEX plate
1
2
Fig. 2 ATEX plate (example)
1 Explosion protection mark
2 Reference to ATEX additional instructions
3.1.3 Pump type code
1
2
3
4
NPC
50 - -32 200
Fig. 3 Pump type code (example)
1 Pump series
2 Suction flange DN [mm]
3 Pressure flange DN [mm]
4 Impeller nominal diameter [mm]
10 NPC series BA-2005.07 EN – 02
