Appendix
9.2.5 Lubricants
Manufacturer
Designation
SKF LGMT3
ARAL HL3
ESSO BEACON 3
MOBIL-OIL MOBILUX 3
SHELL ALVANIA GREASE 3
Tab. 20 Lubricating greases
Bearing
bracket
Bearing
types
Position
(→ Figure
NPC – over-
view
sectional
drawing,
Page 36).
Lubricant
amount per
lubrication
point [g]
1 x NU2209 A 10
1 x 6309 B 13
L16A
1xQJ309
B13
1 x NU2210 A 11
1 x 6311 B 18
L18B
2x7311
BECBP
B36
Tab. 21 Minimum amounts for grease lubrication
Manufacturer
Designation
BP
ENERGOL GR-XP 68
DEA
FALCON CLP68
ESSO SPARTAN EP68
MOBIL GEAR 626
SHELL OMALA 68
Tab. 22 Lubricating oils
Bearing bracket
Oil volume [l]
L16A 0.35
L18B 1.0
Tab. 23 Minimum amounts for oil lubrication
9.2.6 Detergents
Application area Detergent
Foodstuffs and drinking
water sector
e.g. spirit, Ritzol 155,
strong alkaline soap suds,
steam blast (for individual
components only)
Other
Benzine, wax solvents,
diesel, paraffin, alkaline
detergents
Tab. 24 Detergents
9.2.7 Socket loads according to ISO 5199
F
z
M
z
Z
F
x
M
x
X
M
y
F
y
Y
1

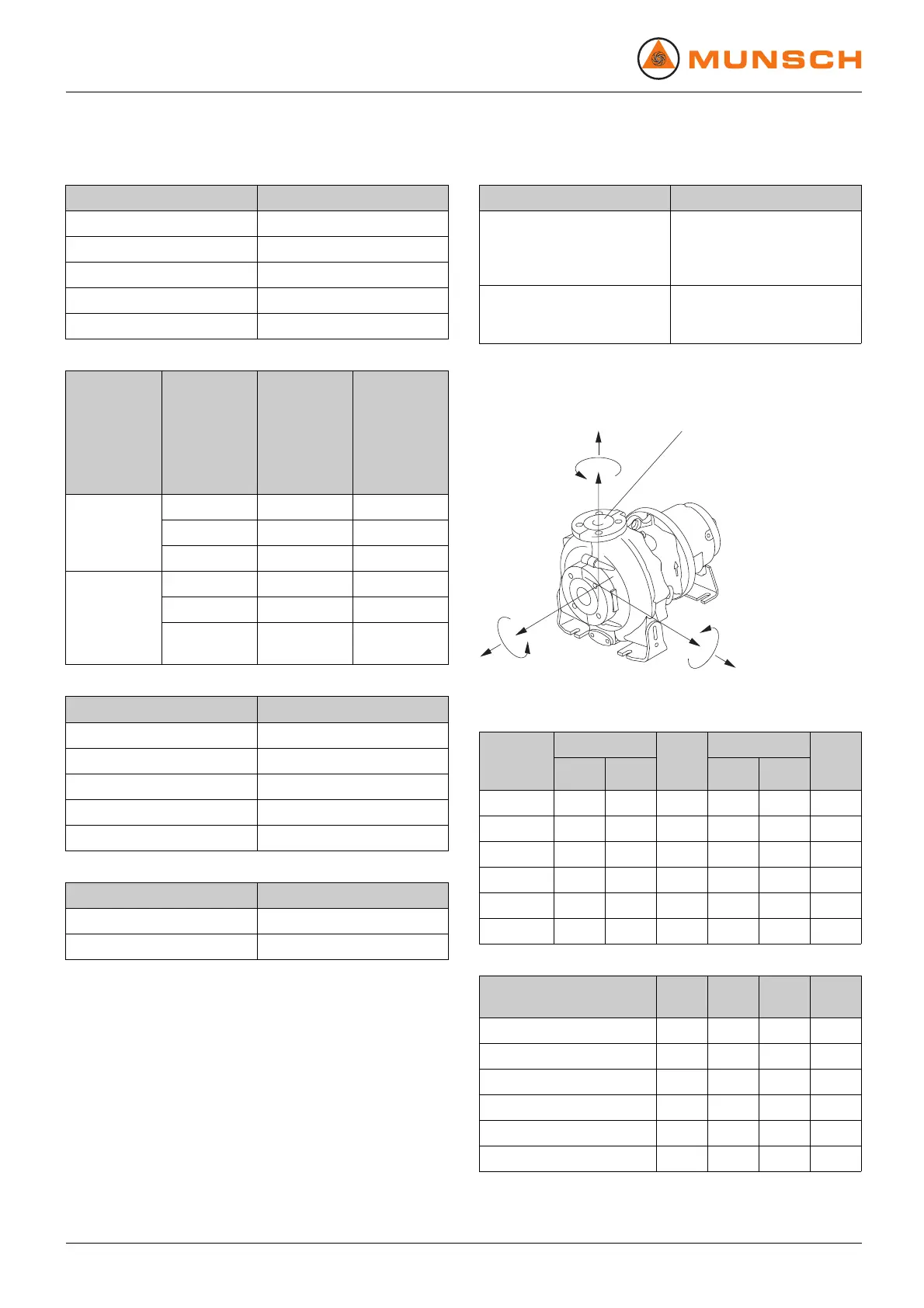

Fig. 42 Socket loads at the pump
1 Pressure socket
Fx [N] Fz [N]Nominal
diameter
DN [mm]
Pull Push
Fy
[N]
Pull Push
∑F
[N]
25 600 300 500 700 350 1100
32 800 400 700 900 450 1500
40 1100 550 900 1200 600 2000
50 1500 750 1300 1600 800 2500
65 1900 950 1600 2000 1000 3500
80 2400 1200 2100 2600 1300 4500
Tab. 25 Socket loads – forces
Nominal diameter DN
[mm]
Mx
[Nm]
My
[Nm]
Mz
[Nm]
∑M
[Nm]
25 900 600 800 1550
32 1200 800 700 1700
40 1300 900 1000 1850
50 1400 1000 1100 2000
65 1500 1100 1200 2 150
80 1600 1200 1300 2300
Tab. 26 Socket loads – torques
