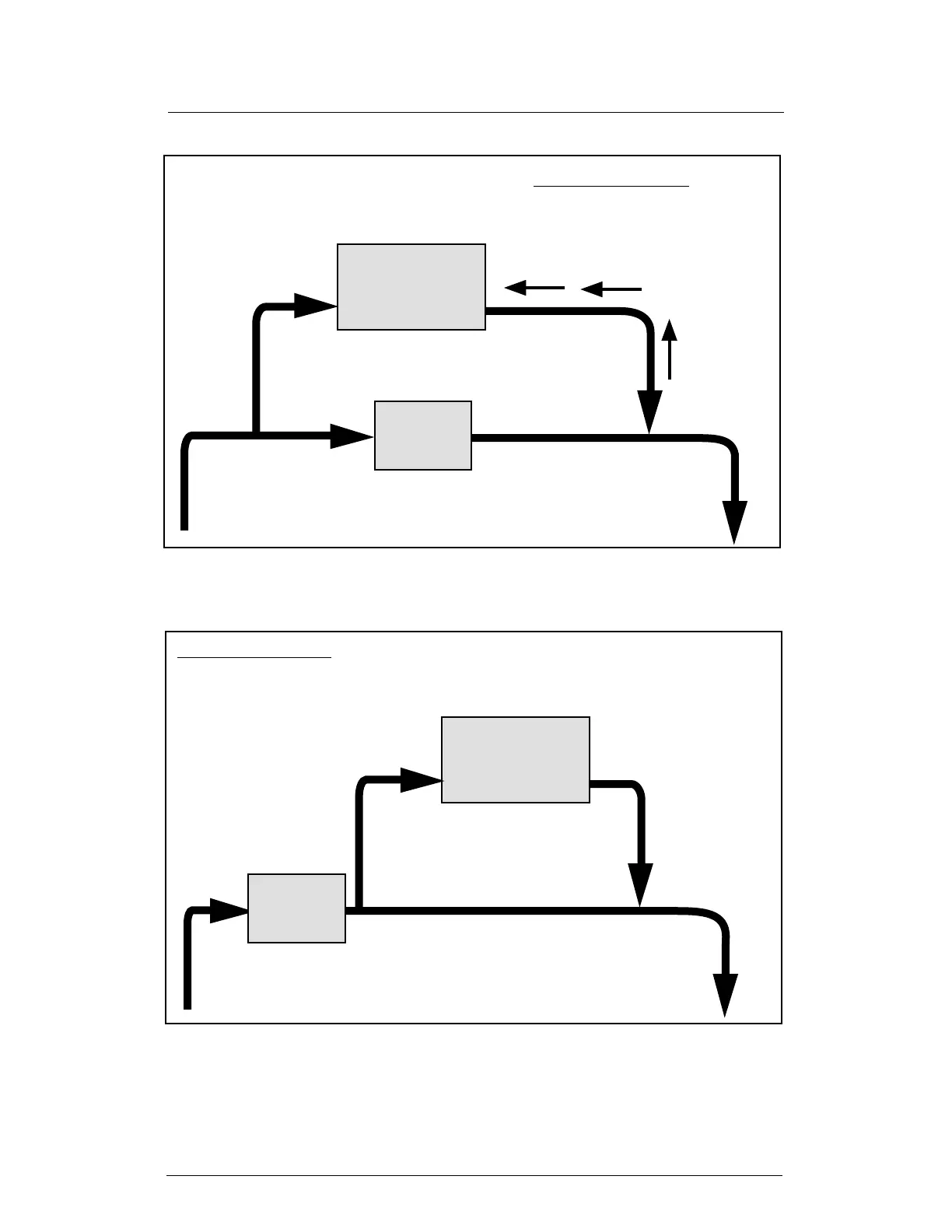

POOR ARRANGEMENT
Do not set up the HC-150 so it
bypasses the air handling unit. The air
handling unit can create back
pressure. This can cause the air to
flow backwards through the HC-150.
HC-150
DEHUMIDIFIER
AIR
HANDLING
UNIT
POOR ARRANGEMENT
When set up this way, the air handling
unit cannot condition the air temperature
after it leaves the HC-150.
FIGURE 3–4
DO NOT INSTALL HC-150 THIS WAY
PART B
PART A
