Plus Dehumidification system
3 System design and function
3.1
Main
function
®Munters
The
Munters Plus unit is designed
to
control the air quality in archives, laboratories, clean rooms
or
other
applications with high demands
on
climate.
All units are always delivered with a dehumidifier.
Other
components such as cooling and heating coils,
humidifiers
or
supply fans are delivered depending
on
the individual system specification.
The
system is set
up
and operated from the operator panel. Wall sensors
or
duct sensors measure the
temperature and humidity
of
the process
air.
The
control system and electrical safety functions for
all
the
components are placed in the electrical panel.
All components are regulated proportionately and configured to achieve optimal capacity and energy use
efficiency.
The
electric heater
in
the dehumidifier has thyristor control and the electric heaters for tempering
the air are pulse controlled.
The
supply air fan runs continually to ensure precise climate control. Regulation
can
be
time controlled
on
a weekly, monthly and stipulated full-day basis as well as
winter/
summer periods
with specific operational temperature and humidity settings. Several possibilities exist for connecting to
building management systems for controlling and monitoring the functions. Contact your nearest Munters
representative for
more
information
on
automatic systems
or
bus connections.
3.2 System design
7
l[:J]
■
888

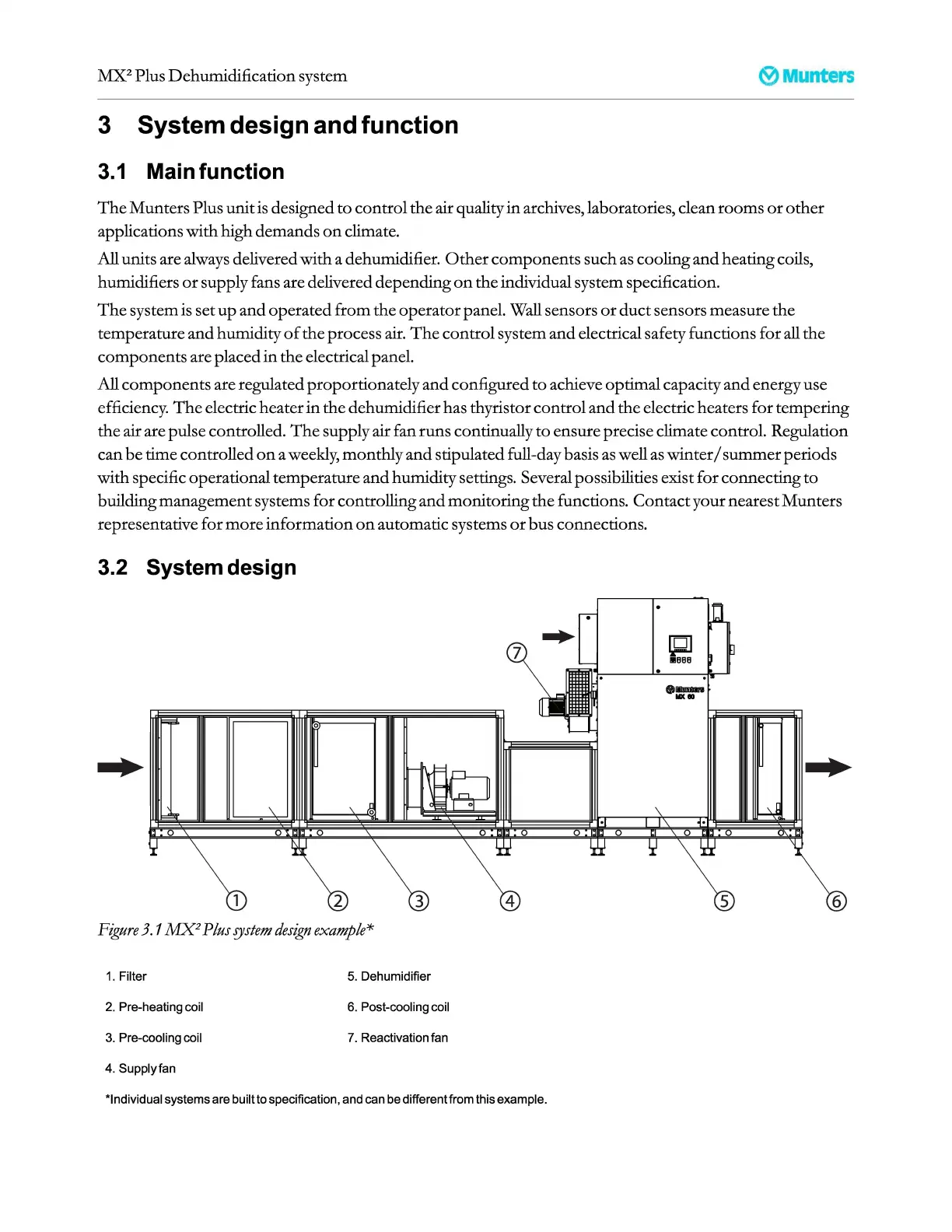

Figure
3.1
MX
2
Plus
system
design
example*
1. Filter 5. Dehumidifier
2. Pre-heating
coil
6. Post-cooling
coil
3. Pre-cooling
coil
7. Reactivationfan
4. Supply
fan
*Individual systems are built
to
specification,
and
can
be
different from this example.
