MX
2
Plus Dehumidification system
®Munters
4.1.4
High
temperature cut-out
The
dehumidifier is equipped with safety thermostats (HTCO) which prevent it from being overheated and
damaged
if
the reactivation air becomes
too
hot.
The
thermostat sensing bulb is located in the reactivation air
duct
and measures the temperature in front
of
the rotor.
If
the reactivation air temperature exceeds the thermostat setting, the reactivation heater is
switched
off
and the alarm message "React Heater
HTCO"
is shown
on
the control panel display.
After an alarm, the safety thermostat must
be
reset by pressing the
button
on
the thermostat housing. See
Figure4.5
for
how
to
access the thermostat housing.
In
the case
of
electrical reactivation, reset also the circuit breakers for the heater
on
the electrical panel.
MX
2
30 MX
2
30
• • I
••
..
•.:
...
•
MX
2
35-95
~~
Mll'IIIJ
•

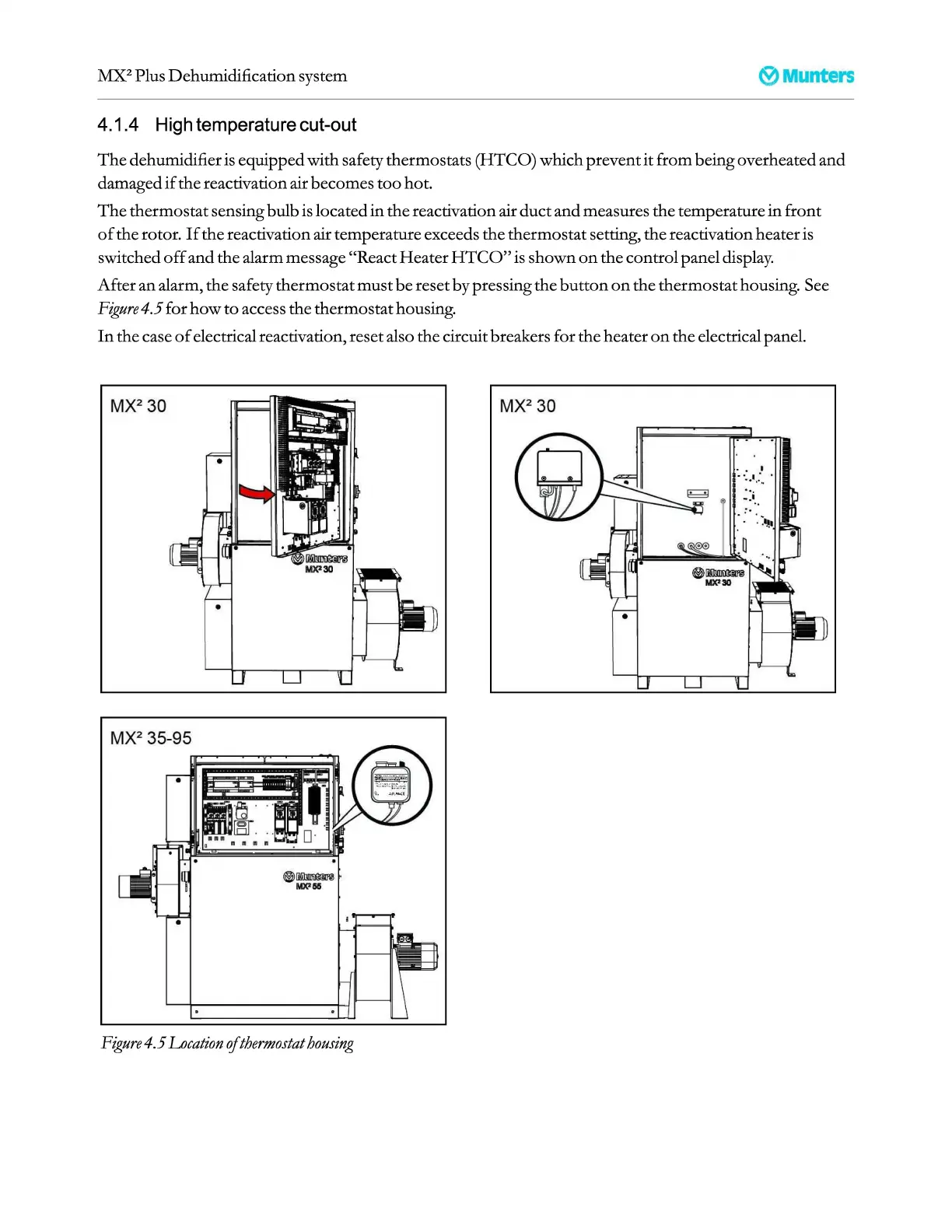

Figure
4.5
Location
of
thermostat
housing
