Plus Dehumidification system
4.1.3 Pressure test
points
The
built-in pressure test points are used for measuring pressure drop across the
rotor
during basic
installation work and inspection
of
the
rotor
condition.
For
airflow adjustment, refer to the Installation instructions.
(9)Munters
TP1
TP2 TP3 TP4

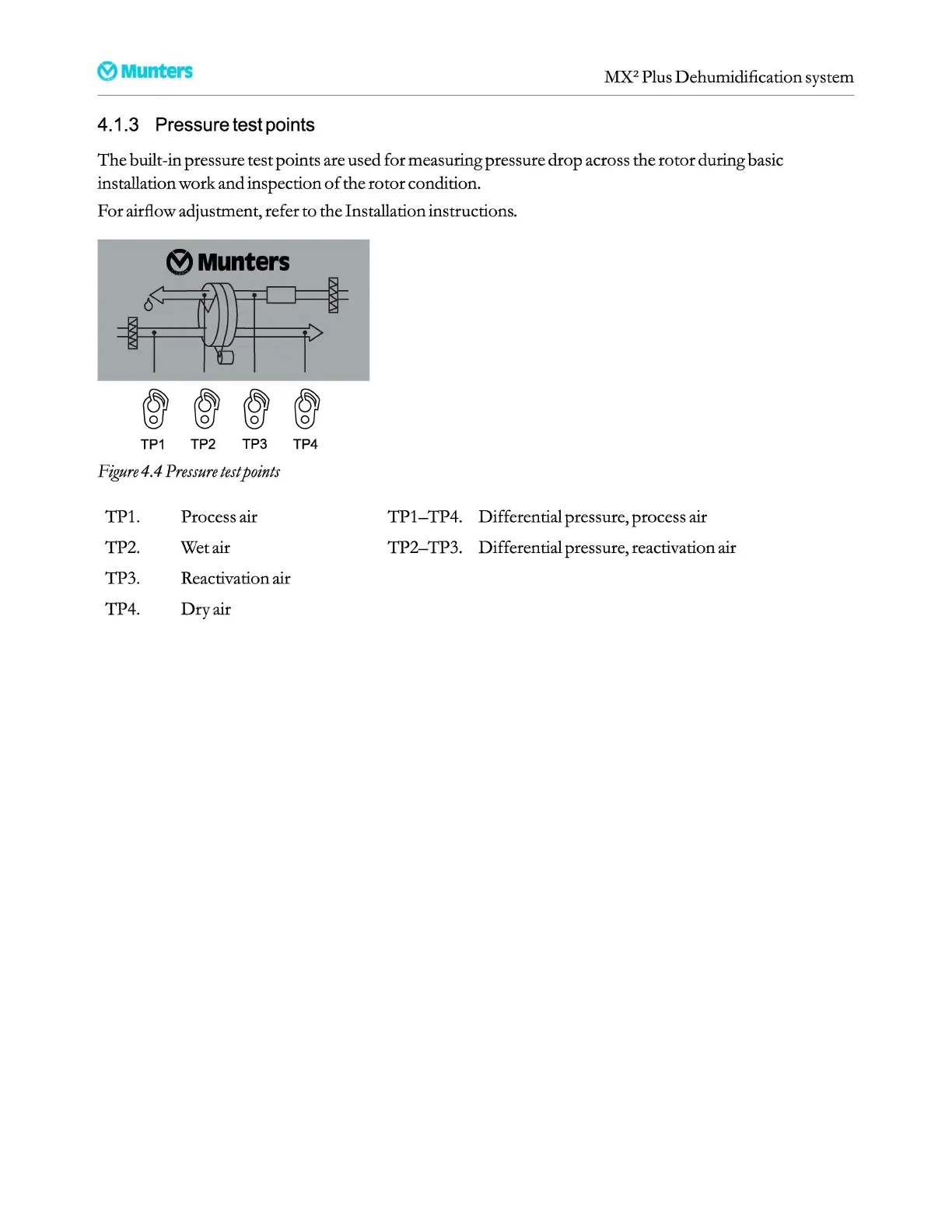

Figure4.4
Pressure
testpoints
TP1.
TP2.
Process air
Wet air
TP3. Reactivation air
TP4.
Dry
air
TP1-TP4.
Differential pressure, process air
TP2-TP3.
Differential pressure, reactivation air
