Munters MX2 Plus - Dehumidifiercomponents

MX
2
Plus Dehumidification system
®Munters
4.1.2 Dehumidifiercomponents

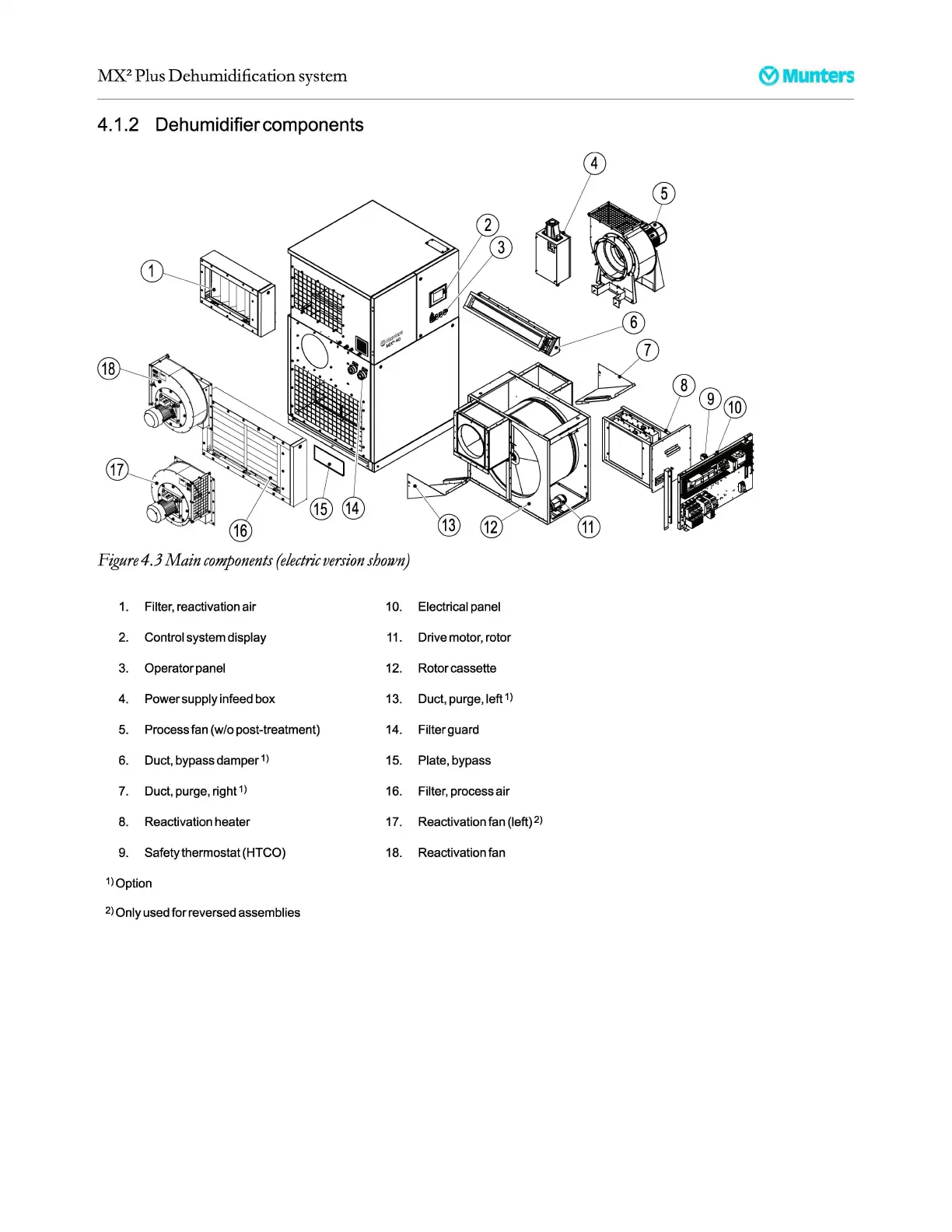

Figure4.3 Main components (electric version shown)
1. Filter, reactivation air 10. Electrical panel
2. Control system display 11 .
Drive motor, rotor
3. Operator panel 12. Rotor cassette
4. Power supply infeed box 13.
Duct, purge, left 1)
5.
Process fan (w/o post-treatment) 14. Filter guard
6. Duct, bypass damper
1
> 15. Plate, bypass
7.
Duct, purge, right 1 l
16. Filter, process air
8.
Reactivation heater 17.
Reactivation fan (left) 2)
9. Safety thermostat (HTCO) 18. Reactivation fan
1
lOption
2) Only used for reversed assemblies
