To avoid electric shock, do not test the capacitor carrying voltage. Discharge the capacitor shortly
before measuring the large capacitor.
1. Insert the connecting plug of the red test probe into the positive
Cap jack and the connecting plug of the black test probe
into the COM jack.
2. Rotate the function switch to point the arrow to the Ω Cap range;
press the “SELE” button again to switch to the Cap range.
3. Measure the small capacitance; press the "REL" button to remove
the lead resistance and distributed capacitance before measurement.
4. Contact the test probe and the metal lead of the capacitor under test.
5. Read the capacitance value displayed on the meter. The displayed
results include values, decimal points, and polarity.

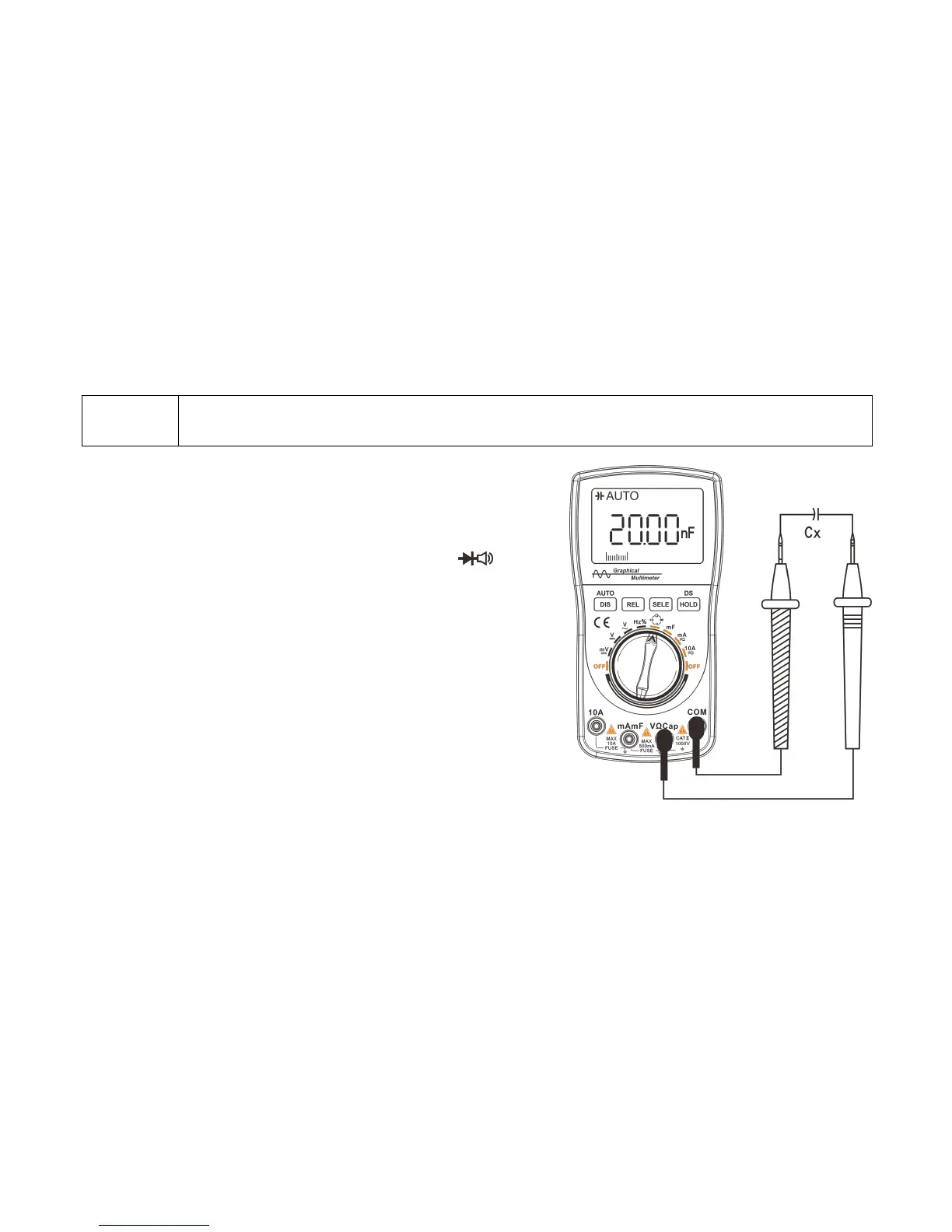

Diagram of capacitance measurement
