Waveform display operation
Enabling waveform display mode
Hold down the “DIS” button for 2 seconds to select the waveform display mode.
Prompt!
The waveform display function is only available in the voltage/current range.

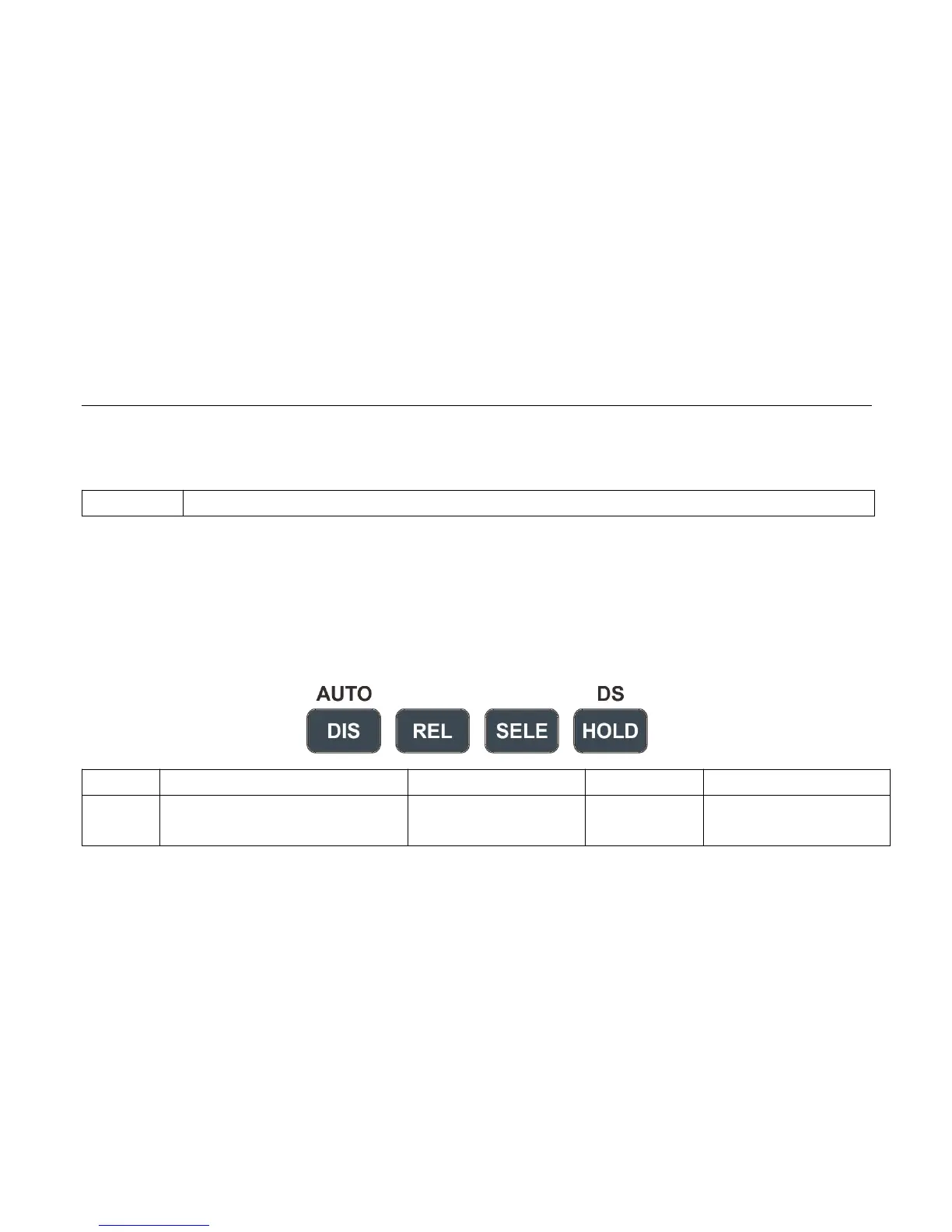

Buttons and main menu
The buttons for waveform display are located in the lower part of the LCD screen, which can be in combination to
realize a variety of functions.
The basic operations are described specifically as follows:
Button
DIS
AUTO
REL/SELE
HOLD
Function
Enabling waveform display (Hold
down)
Displaying stable
waveform
Change time
base
Saving waveform (10
groups)
