VJ-1638/1638W OPERATION MANUAL ERRATA
October 2012
VJ1638xE-A-01c 15 MUTOH INDUSTRIES LTD.

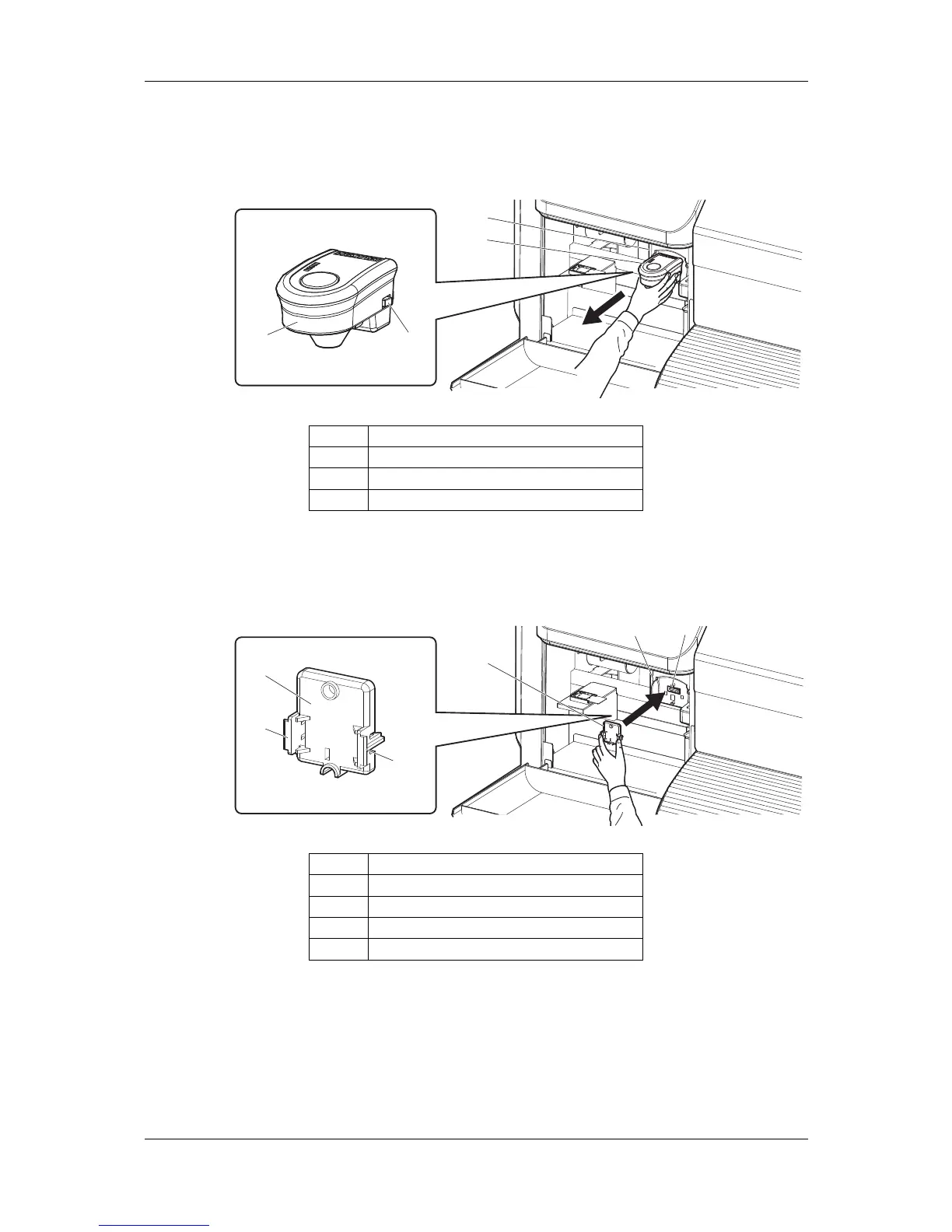

19. While pressing the release buttons on both sides of spectrophotometer, pull it forward to
remove it from the print head.
1
2
1
3
No. Name
1 Spectrophotometer
2 Release buttons
3 Print head section
20. Firmly pinch the tabs on both sides of the connector cap with your fingers, and install it to the
connector at the print head.
1
2
2
4
1
3
No. Name
1 Connector cap
2 Tabs
3 Print head section
4 Connector
