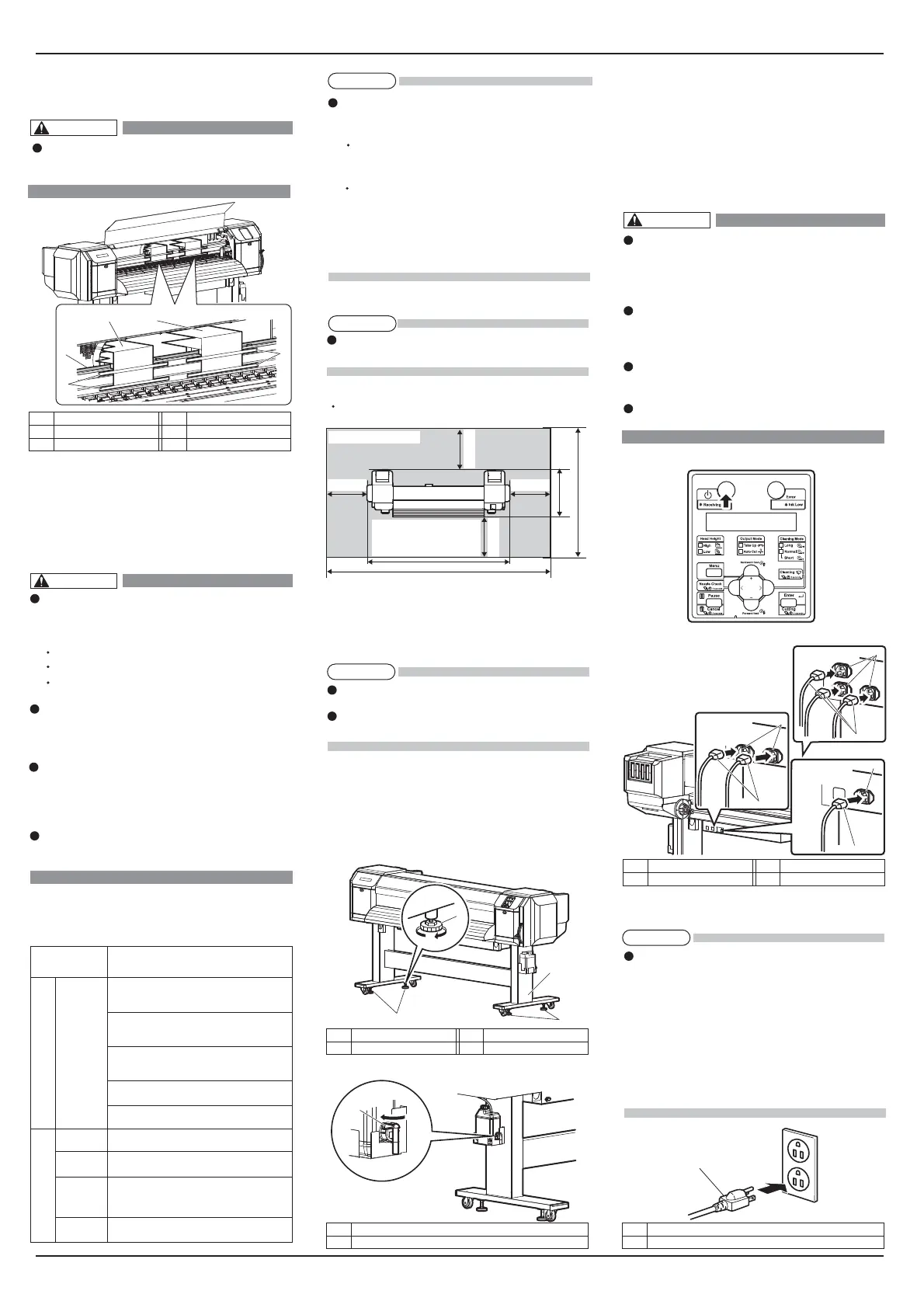

VJ-2638X/1938X/1638X/1938WX/1638WX INSTALLATION MANUAL
VJx638xE-I-05 4
No. Name
1 Adjuster
No. Name
2 Stand
VJ-1638X
1
2
1
2
VJ-1938WX
VJ-1638WX
1
2
VJ-2638X/
1938X
4. Peel off the tape, be careful not to come in contact
with T fence, and remove the Bearer collapse
prevention material and Bearer fix.
4 Installation
Procedures and environment for installing this product
are explained.
4.1 Installation environment
Install this product to the appropriate place with
reference to the following.
4.1.1
Installation environmental condition
Select an installation location in accordance with the
table below.
4.1.2 Installation space
Install on a level floor which meets the following condition.
It has enough strength to support the weight of the
printer and the stand.
4.2 Installation procedure
Install this product to the installation place in
accordance with the list shown below.
1. Check that the eight butterfly bolts attaching the
stand and the printer are not loose.
2. Carry the printer to the installation place.
3. Turn the following adjusters in the direction as
shown below to prevent the printer from moving.
・Adjusters : 4 locations
4. Confirm that the waste fluid valve is closed.
5. Check that the eight butterfly screws (8 pieces)
attaching the stand and the printer are not loose.
5 Connecting the power cable
This section explains how to connect the power cable.
Follow the steps below to connect the power cable.
1. Confirm that the product is turned OFF.
2. Connect the power cables to the AC inlets on the
rear of the product.
VJ-2638X/1938X : 3 locations
VJ-1638X : 2 locations
VJ-1938WX/1638WX : 1 location
3. Correctly insert the power cable plug into the power
socket.
NOTE
For temperature and humidity, avoid locations
such as the following. There is a possibility that
the print quality will be affected.
Places where temperature or humidity may
rapidly change, even though within the required
conditions.
Places that receive direct sunlight, increased illu-
mination or direct air, for example from an air
conditioner.
To keep the temperature and humidity constant,
install this product in a location where the air
condition is adjustable.
To use the two power cables plugged in
the inlets, total capacity described below is
required. If the power source cannot supply
the required capacity, plug the two or more
power cables in the different power sources
respectively.
VJ-2638X: at “EcoMode” : 26A or more
at “Powerful” : 30A or more
VJ-1938X : 30A or more
VJ-1638X : 19A or more
VJ-1938WX/1638WX : 2.5A or more
NOTE
More than 2940 Pa (300 kg/m
2
)Floor strength of
installation place
Rated
Frequency
50/60Hz
Change
rate
Operative
condition
Guaranteed
range of
printing
accuracy
Temperature: 20 °C to 32 °C
Humidity: 40% to 60%, No Condensation
Temperature: 22 °C to 30 °C
Humidity: 40% to 60%
Temperature: within 2 °C per hour
Humidity: within 5% per hour
VJ-2638X:
(Main) AC100-240V; 10A-5A
(Heater 1/2) AC100-240V; 10A-5A
VJ-1938X:
(Main) AC100-240V; 12A-6.5A
(Heater 1/2) AC100-240V; 9A-4.5A
VJ-1638X:
(Main) AC100-240V; 9A-6A
(Heater) AC100-240V; 10A-5A
VJ-1938WX:
AC100-240V; 2.5A-1.0A
VJ-1638WX:
AC100-240V; 2.5A-1A
Power Specification
Environmental
conditions
Rated
voltage
and
Consump-
tion
Current
1
NOTE
Please check that the butterfly bolts are not loose
before/after carrying this product.
When transferring or carrying outside, separate the
printer and the stand.
1
2
3
4
1
Make sure not to damage T fence during
operation. If T fence is damaged, it will
affect print results.
WARNING
No. Name
1 Tape
2 T fence
No. Name
3 Bearer protective material
4 Bearer fix
For the weight of the printer and the stand, refer to
the Operation Manual.
NOTE
WARNING
Be sure to use the specified power cable
(separately sold).
Using power cables other than the
specified can cause an electric shock or
fire.
Use a power cord set which is compati-
ble with the safety standards, power
supply voltage, and plug shape used in
the country where this printer is used.
Use a power cord set which is equipped
with a protective earth, and securely
connect it to the outlet.
Do not use a damaged power cable.
It may cause an electric shock or fire.
1
1
1
2
Do not install the printer in the following
places where there is a possibility that the
printer may be damaged or might fall or be
fallen by chance.
On a shaky stand
Slanting location
Places where vibration of other
machines etc. is transmitted.
Do not stamp on the printer or do not place
heavy things on top of it. The printer may
be damaged or might fall or be fallen by
chance.
Do not block the vent when covering the
printer with cloths, such as a blanket or
tablecloth.
If the vent is blocked, heat may accumulate
inside the printer and may cause a fire.
Do not install the printer in a location that
has high humidity or is dusty.
It could lead to electric shock and fire.
WARNING
No. Name
1 Waste fluid valve
No. Name
1 AC inlet
No. Name
2 Power cable
No. Name
1 Power cable
650mm 1,000mm
1,000mm
1,000mm
886mm
3,000mm
Minimum height:1,550mm
VJ-2638X : 3,708mm
VJ-1938X/1938WX : 2,983mm
VJ-1638X/1638WX : 2,698mm
VJ-2638X : 5,400mm
VJ-1938X/1938WX : 4,633mm
VJ-1638X/1638WX : 4,400mm
1
To Next Page
