- 123 -
MAINTENANCE 6
6
6.11. Checking and lubricating the drive chain
To perform this operation, you must put the motorcycle
on the rear stand, upright on a horizontal surface and
with the gear in neutral.
❏ Checking the chain adjustment

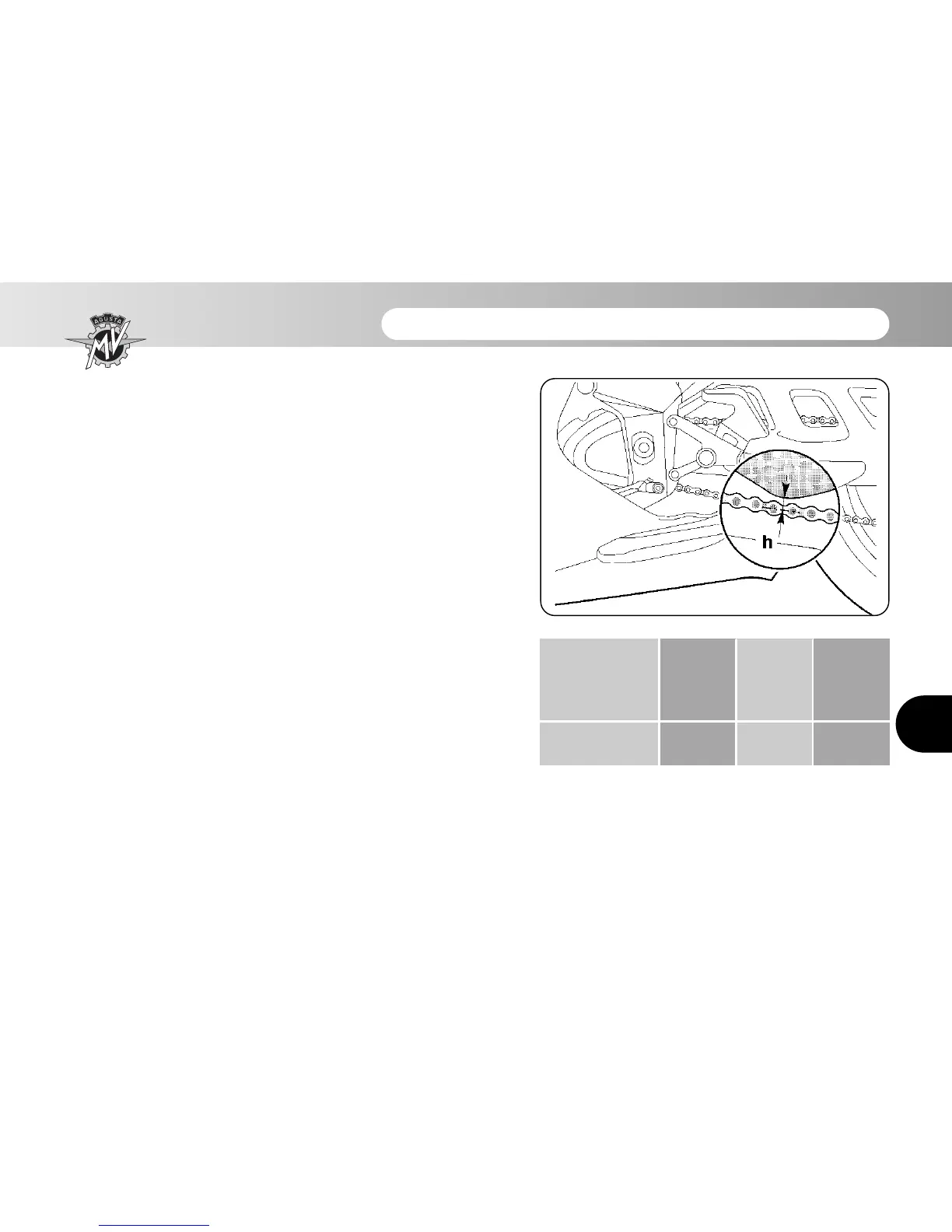

The h distance between the axis of the chain and the
lower chain guard changes according to the number of
teeth of the rear sprocket (see table). Manually turn the
rear wheel and carry out the check at several points
along the chain. The distance between the chain and
the lower chain guard must remain constant as the
wheel turns. If the chain is only partially loosened, it
means that some chain links are flattened or seized. If
the distance is greater than the indicated value, have
the chain adjusted by your local MV Agusta dealer.
Number of
teeth of the
rear sprocket
h
Z = 37
2 mm
Z = 38
4 mm
Z = 39
6 mm
