7� Montez le groupe moteur sur la colonne (g. 8).
8� Branchez les tuyaux d’huile suivant le schéma (g. 9).
USER’S GUIDE V1.2 201503
- 8 -

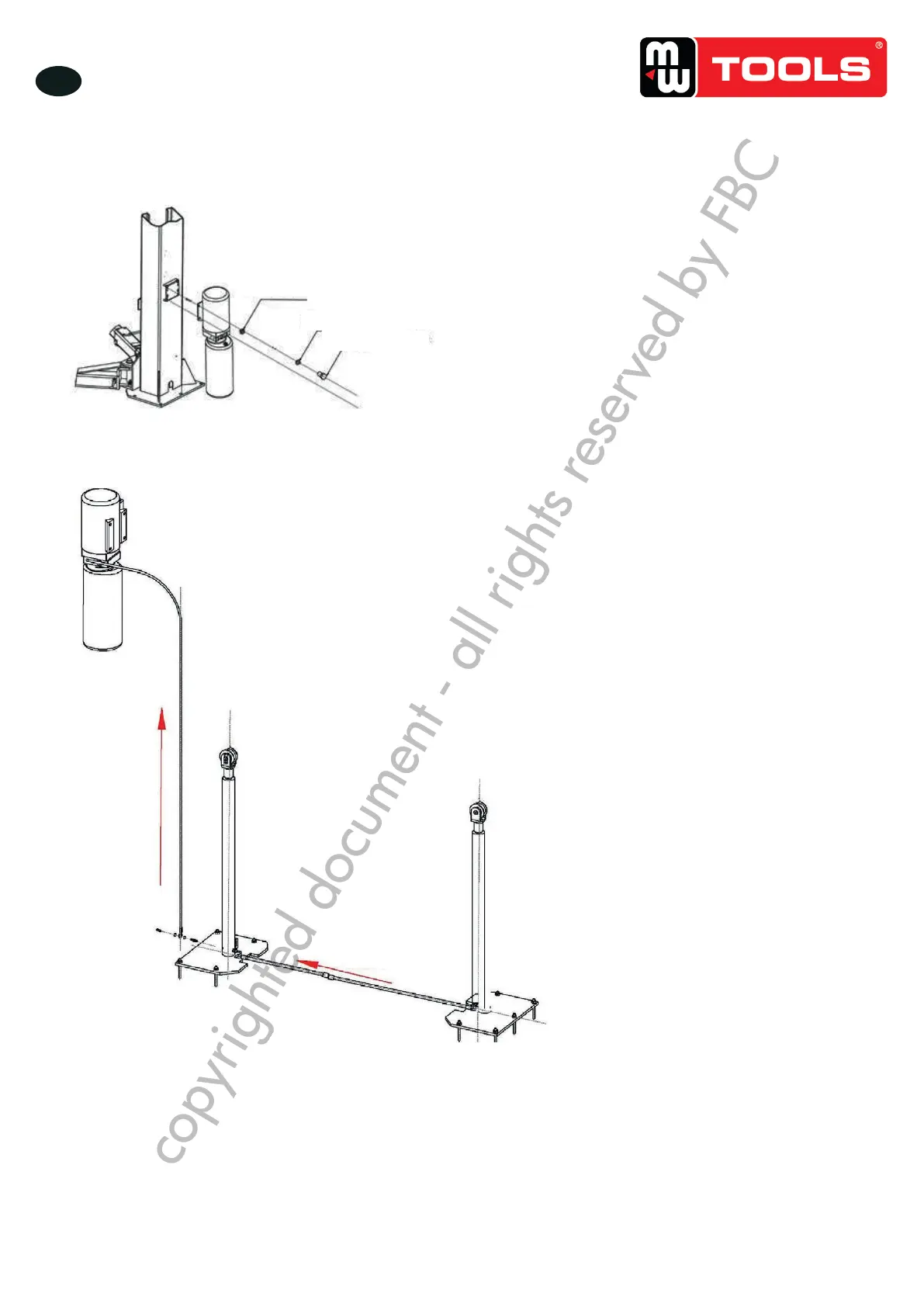

Step7: Mount the power unit onto the power sid e post. (Fig 8)
Step8: Connect oil hoses. (Fig 9)
Fig 7
Fig 8
Fig� 8
Boulon hex M8
Rondelle M8
Boulon hex M8*16
USER’S GUIDE V1.2 201503
- 9 -
Connect the oil hose as per the following diagram.
Step9: Fix the base plate. (Fig 10)
Step10: Install lifting arms. (Fig 11)
Fig 9
Fig 10
Fig� 9
Tuyau 1
Tuyau 2
