hyperion X5 2D/3D - TECHNICAL MANUAL
EN
CONTROL BOARDS DESCRIPTION

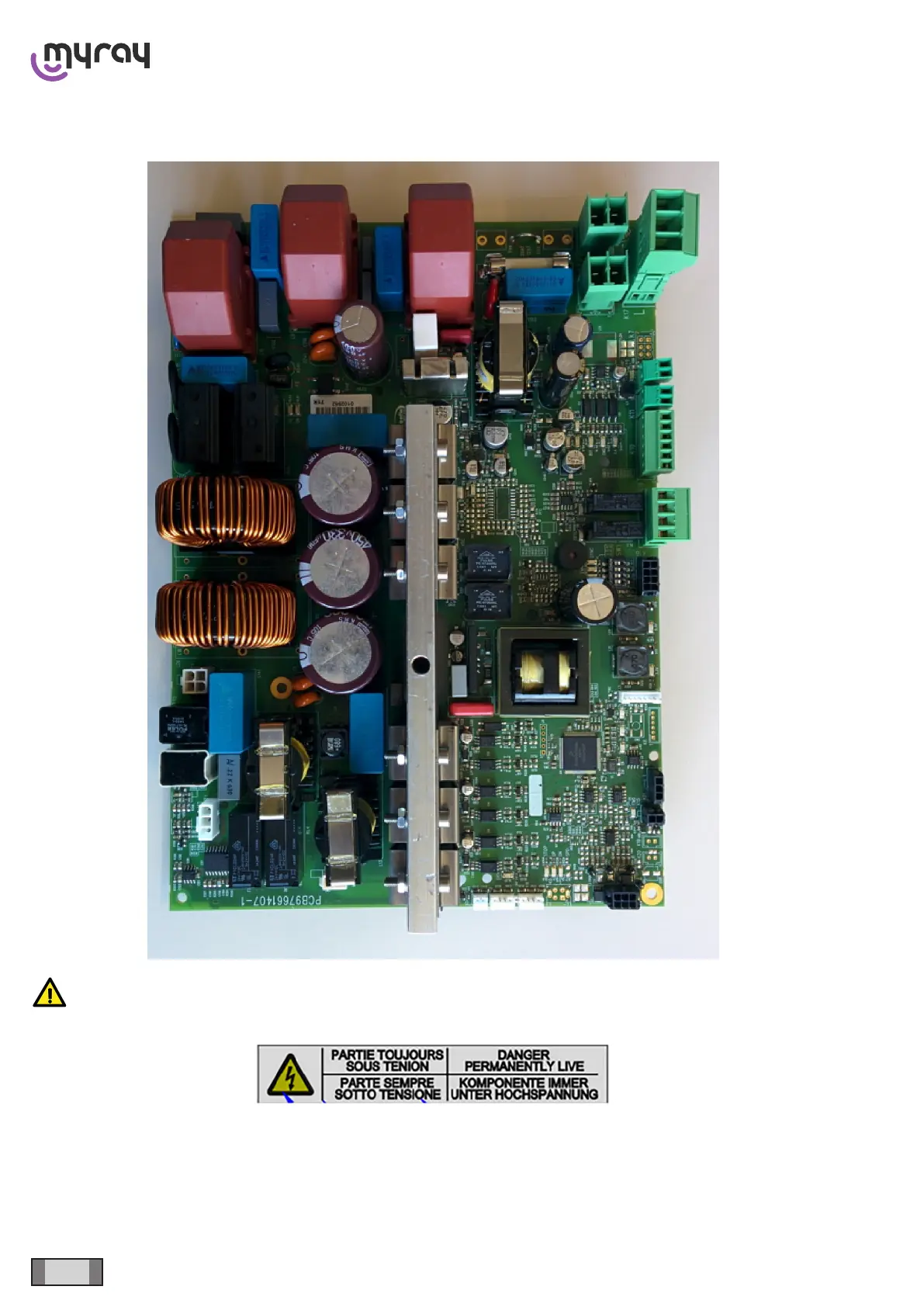

5.2 POWER BOARD 97661407
WARNING: The K17 input terminal board is always powered (live), as marked on the info plate below:
Before handling always cut the power via the external circuit breaker.
Once the power to the device has been cut wait at least 60 seconds before handling the boards so that the condensers
have time to discharge.
