hyperion X5 2D/3D - TECHNICAL MANUAL

COVER, HANDLES, MIRROR REMOVAL

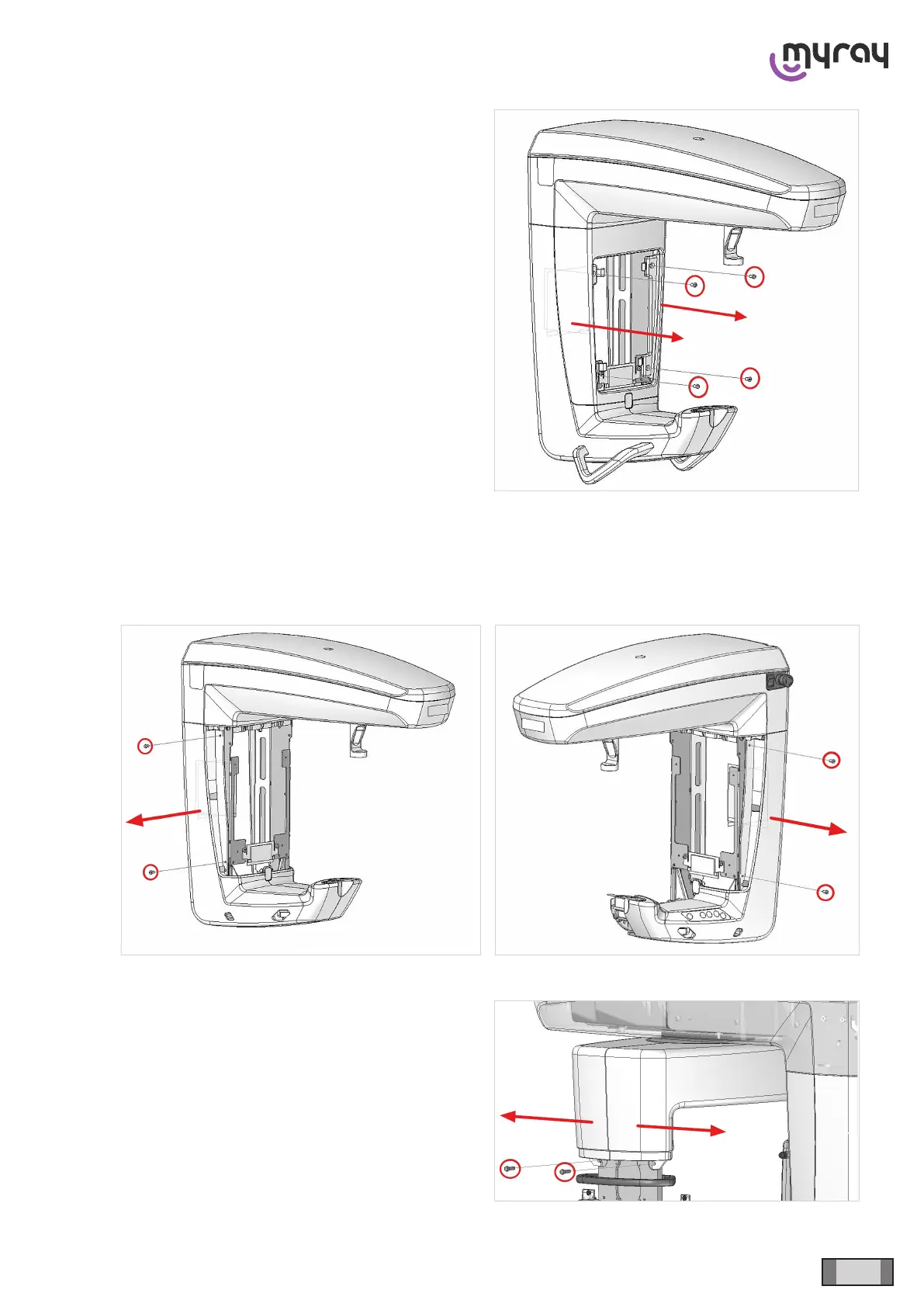

2.5 MIRROR FRAME COVER

Loosen the highlighted screws and remove the cover.

2.6 SIDE COVERS

Loosen the highlighted screws and remove the (interlo-

cking) side covers.

2.7 ARCH COVER

NOTE Before removing the arch cover, it is necessary to

remove the sensor cover.

Loosen the highlighted screws and remove the (interlo-

cking) side covers of the arch.
