MZ TS 150 - Engine; Cycle Parts; Electrical Equipment

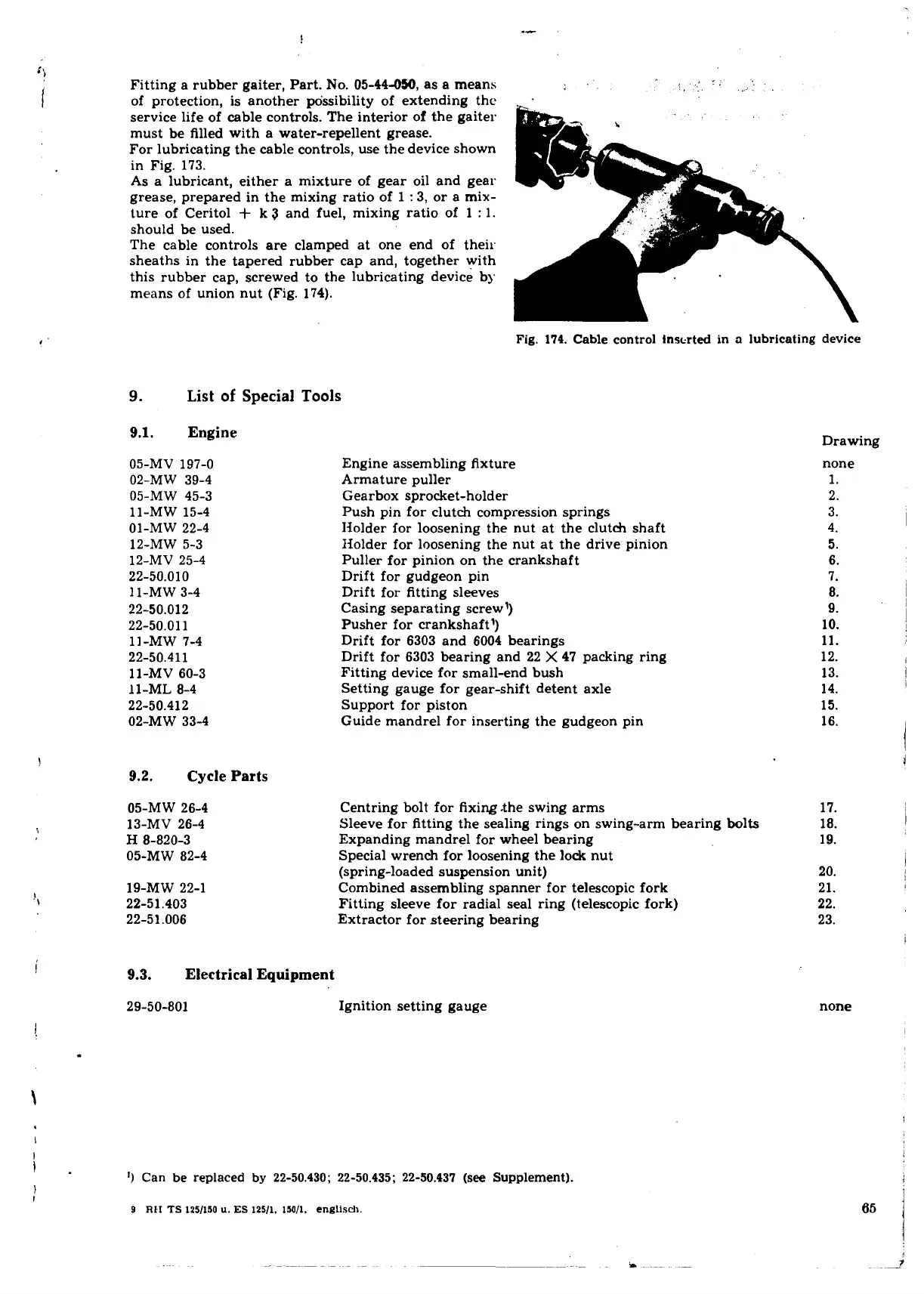

Fitting a rubber gaiter, Part. No. 05-44-050, as a means
of protection, is another possibility of extending thc
service life of cable controls. The interior of the gaiter
must be filled with a water-repellent grease.
For lubricating the cable controls, use the device shown
in Fig. 173.
As a lubricant, either a mixture of gear oil and gear
grease, prepared in the mixing ratio of 1
: 3, or a mix-
ture of Ceritol
+ k 3 and fuel, mixing ratio of 1 : 1.
should be used.
The cable controls are clamped at one end of their
sheaths in the tapered rubber cap and, together with
this rubber cap, screwed to the lubricating device by
means of union nut (Fig. 174).
9.1. Engine
9.2. Cycle Parts
Fig. 174. Cable control Inserted in n lubricating device
Engine assembling fixture
Armature puller
Gearbox sprocket-holder
Push pin for clutch compression springs
Holder for loosening the nut at the clutch shaft
Holder for loosening the nut at the drive pinion
Puller for pinion on the crankshaft
Drift for gudgeon pin
Drift for fitting sleeves
Casing separating screw1)
Pusher for crankshaft1)
Drift for 6303 and 6004 bearings
Drift for 6303 bearing and 22
X 47 packing ring
Fitting device for small-end bush
Setting gauge for gear-shift detent axle
Support for piston
Guide mandrel for inserting the gudgeon pin
Centring bolt for fixing .the swing arms
Sleeve for fitting the sealing rings on swing-arm bearing bolts
Expanding mandrel for wheel bearing
Special wrench for loosening the lock nut
(spring-loaded suspension unit)
Combined assembling spanner for telescopic fork
Fitting sleeve for radial seal ring (telescopic fork)
Extractor for steering bearing
9. List of Special Tools
Drawing
none
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
9.3. Electrical Equipment
29-50-801 Ignition setting gauge none
i.
l) Can be replaced by 22-50.430; 22-50.435; 22-50.437 (see Supplement).
