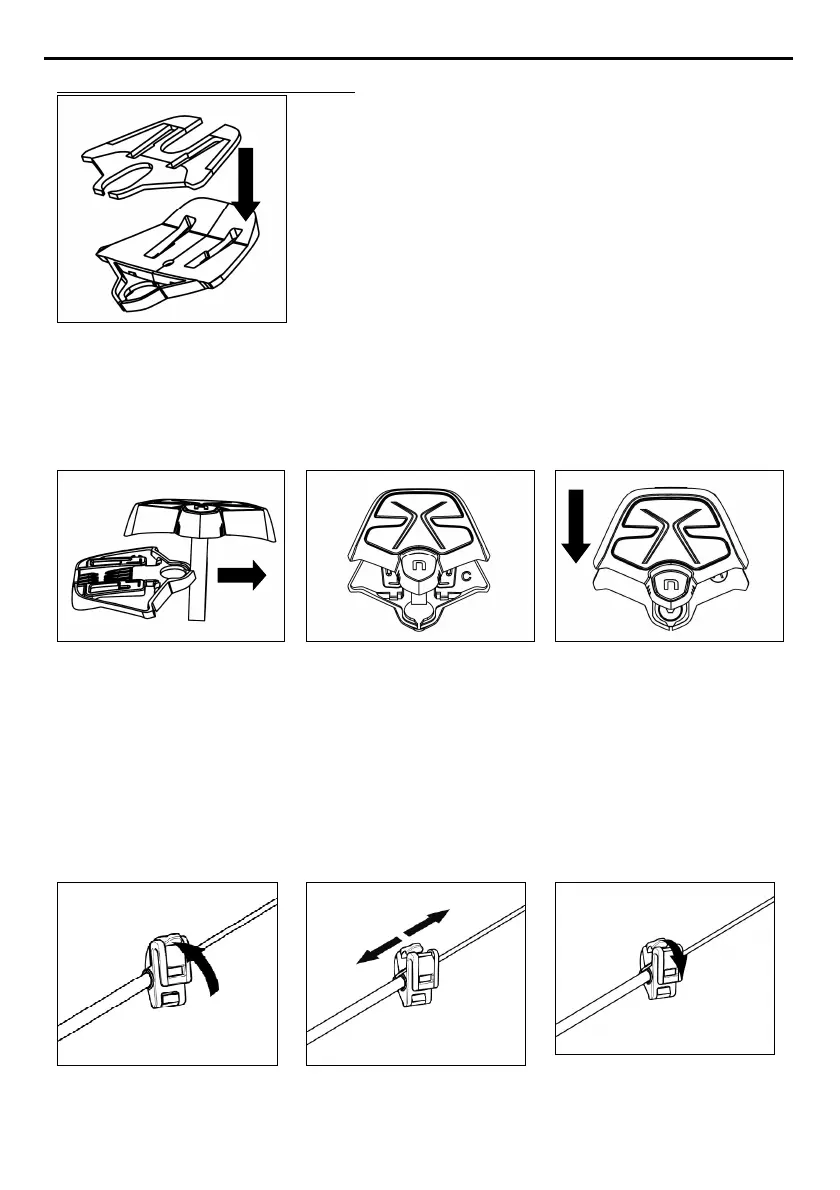

POSITIONING ADAPTERS “B”, ”C” AND ”D”
Fig. 29
• Select the specific adapter for your helmet
model.
• Apply the double-sided adhesive tape
supplied with the adapter (Fig. 29).
• After having repositioned the shell edge
gasket, completely remove the film of the
double-sided adhesive tape.
• Insert the flex cable of the ESS system in the hole of the adapter, as shown in Fig. 30.
• Rotate the adapter and apply it to the helmet shell. The adapter has to match up with the lines of
the helmet and allow easy access to the screw of the shell edge gasket (Fig. 31).
• Hook the light to the adapter, making it slide downwards (Fig. 32).
Fig. 30
Fig. 31
Fig. 32
• Remove the protective film from the ESS system.
3.3.
Adjusting the microphone
The B902L system makes it possible to adjust the position of the microphone in order to facilitate its
positioning in the different helmet models. Proceed as follows:
• Open the clip positioned on the microphone boom, operating as indicated in Fig. 33.
• Adjust the microphone (Fig. 34).
• Close the clip (Fig. 35).
Fig. 33
Fig. 34
Fig. 35
To ensure good voice transmission quality, it is recommended to position the microphone sponge at
the side of your mouth.
