PPA55xx Quick User Guide
Page 103

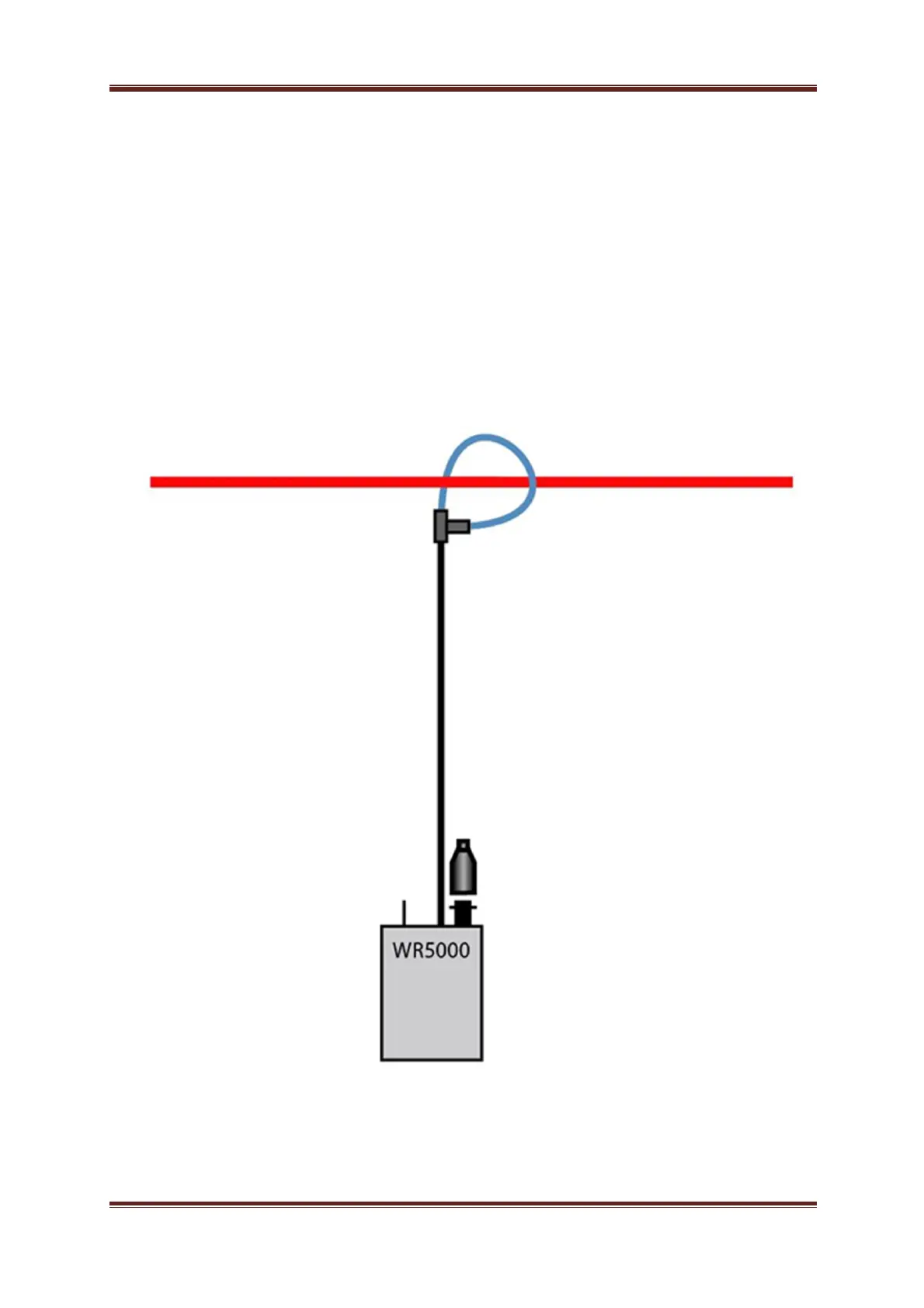

Connect up the Rogowski Coil as shown, wrap the clear plastic tube around the
conductor and slot into the “T”piece connector, tighten the connector nut to
secure the lead into position
A single coil wrapped around the conductor will result in voltage measurement
equal to the 2mV/A detail on the WR5000 as set on previous page
If the coil is double wrapped around the conductor then the voltage value will
double accordingly
BNC BNC safety lead
DC Input
Conductor passing through
Rogowski Coil
