PPA55xx Quick User Guide
Page 81

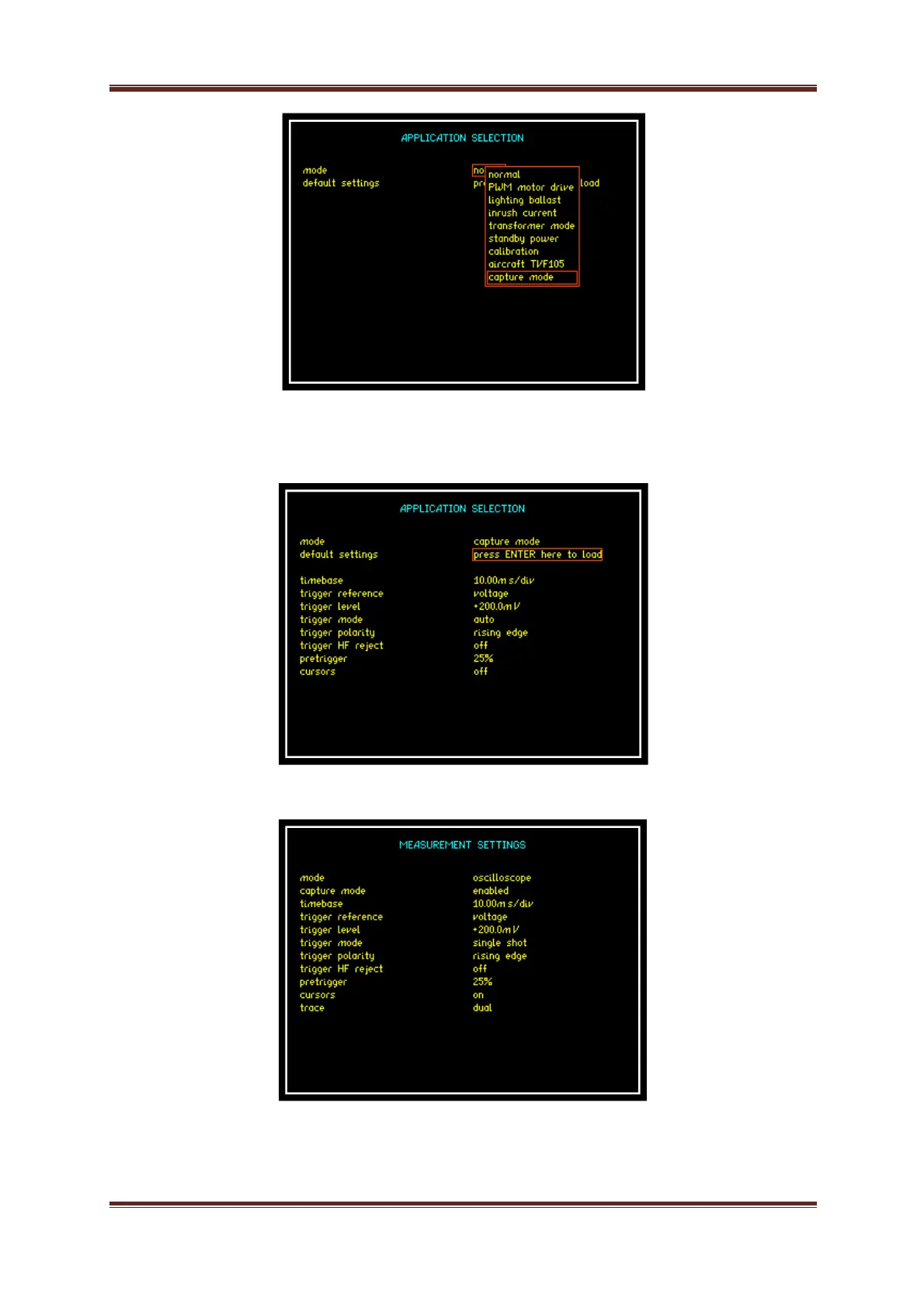

The Capture mode settings are then displayed. Select the Default settings and press enter
Press the mode button and confirm that the settings are as shown in the screenshot below.
Press the enter button, the PPA display shown will now be in Oscilloscope mode.
