14 of 26
GT 710-8710 OPUS Low Energy Swing Doors Quick Set-Up and Parts Guide www.NabcoEntrances.com
P/N C-00178 Rev 12-20-17
DN 1099
Spacer
Sex Bolt
12.25” Track
1/4-20 x 2-1/4”
Phillips Head Screw
Swing Door
0 - 1/4” Reveal using a Straight Arm
To prevent the Swing Arm from
hi ng the Lip of Header, a Spacer is
used with 12.25” Tracks.

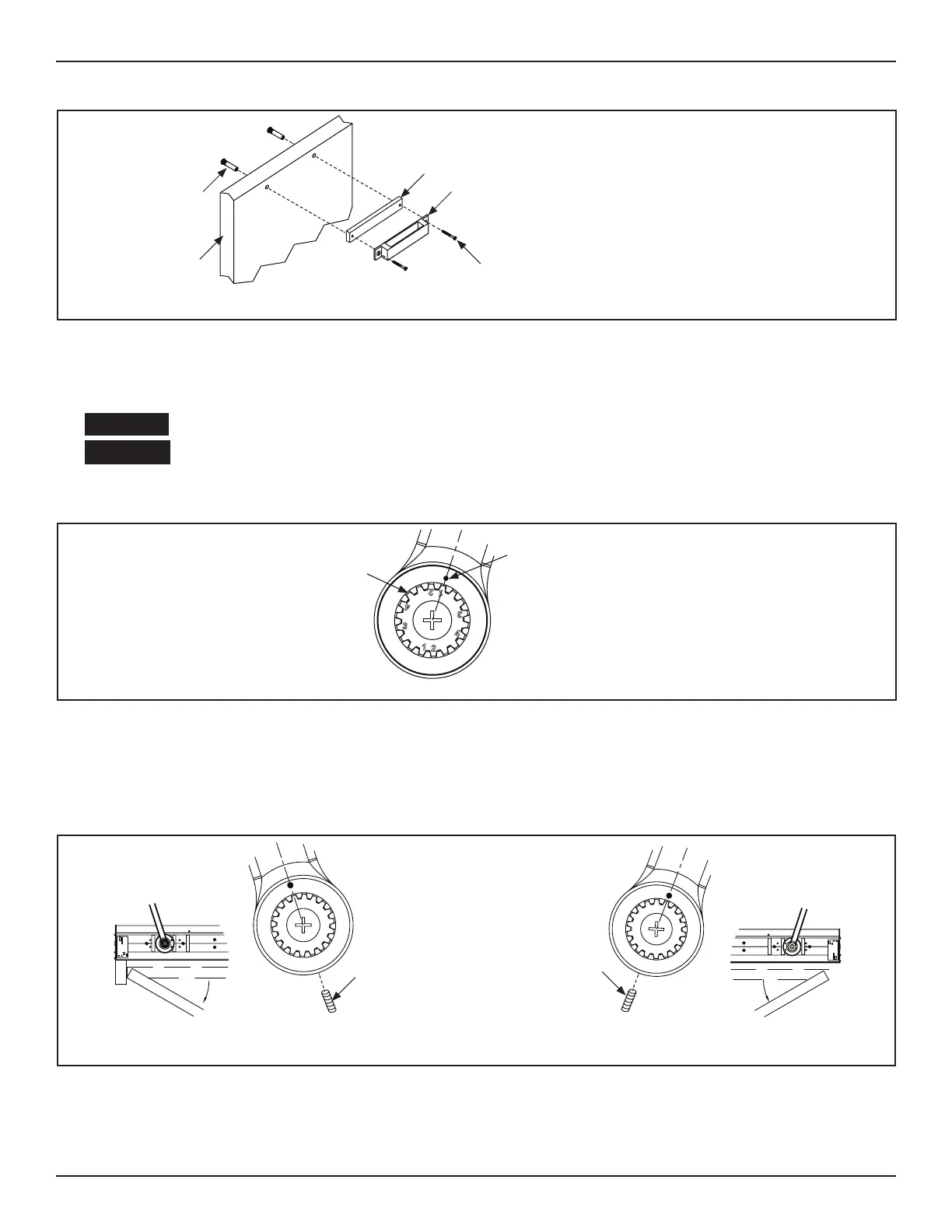

Figure 18 Secure the Track to the Swing Door
CHAPTER 7: INSTALL THE TOP HALF OF SWING ARM
SECTION 71: Set Pre-Load
Proper Preload is critical for the Control/Operator to open/close the Swing Door correctly.
Power must be turned OFF during the Swing Arm installation.
DN 1120
Pre-Load Numbers
Pre-Load Mark
221
1
44
33
221
1
3
3
44
PRELOAD: 1 NOTCH = 18 DEGREES
Figure 19 Pre-Load Numbers
RH Outswing LH Outswing RH Inswing LH Inswing RH Inswing-0 Reveal LH Inswing-0 Reveal
1 2 3 4 4 3
RIGHT HAND
OUTSWING
LEFT HAND
OUTSWING
DN 1113
10-25x.25”
Set Screw
10-25x.25”
Set Screw
DN 0020
DN 0021
MAIN SPEED
LATCH SPEED
For Commercial or Industrial Use
Manufactured
Pedestrian Commercial & Industrial
Commande de porte pietonniere a
60 Hz
S82 W18717 Gemini Drive
Muskego, WI 53150 USA
Pedestrian Door Operator
usage commercial ou industriel
TL
Model No.
NABCO
ENTRANCES
GYRO TECH
115 Volts
Amps
Max
501 S
in
LISTED
BACK CHECK
2
1
2
1
4
3
3
4
MAIN SPEED
LATCH SPEED
BACK CHECK
For Commercial or Industrial Use
Manufactured
Pedestrian Commercial & Industrial
Commande de porte pietonniere a
60 Hz
S82 W18717 Gemini Drive
Muskego, WI 53150 USA
Pedestrian Door Operator
usage commercial ou industriel
TL
Model No.
NABCO
ENTRANCES
115 Volts
Amps
Max
501 S
in
LISTED
21
4
3
21
3
4
Figure 20 Preload: Outswing Arm
