6 of 26
GT 710-8710 OPUS Low Energy Swing Doors Quick Set-Up and Parts Guide www.NabcoEntrances.com
P/N C-00178 Rev 12-20-17
DN 1109
Mark Measurement
across Top door frame
1/8”
(GT 710)
Top of Door
1-1/8”
(GT 8710)

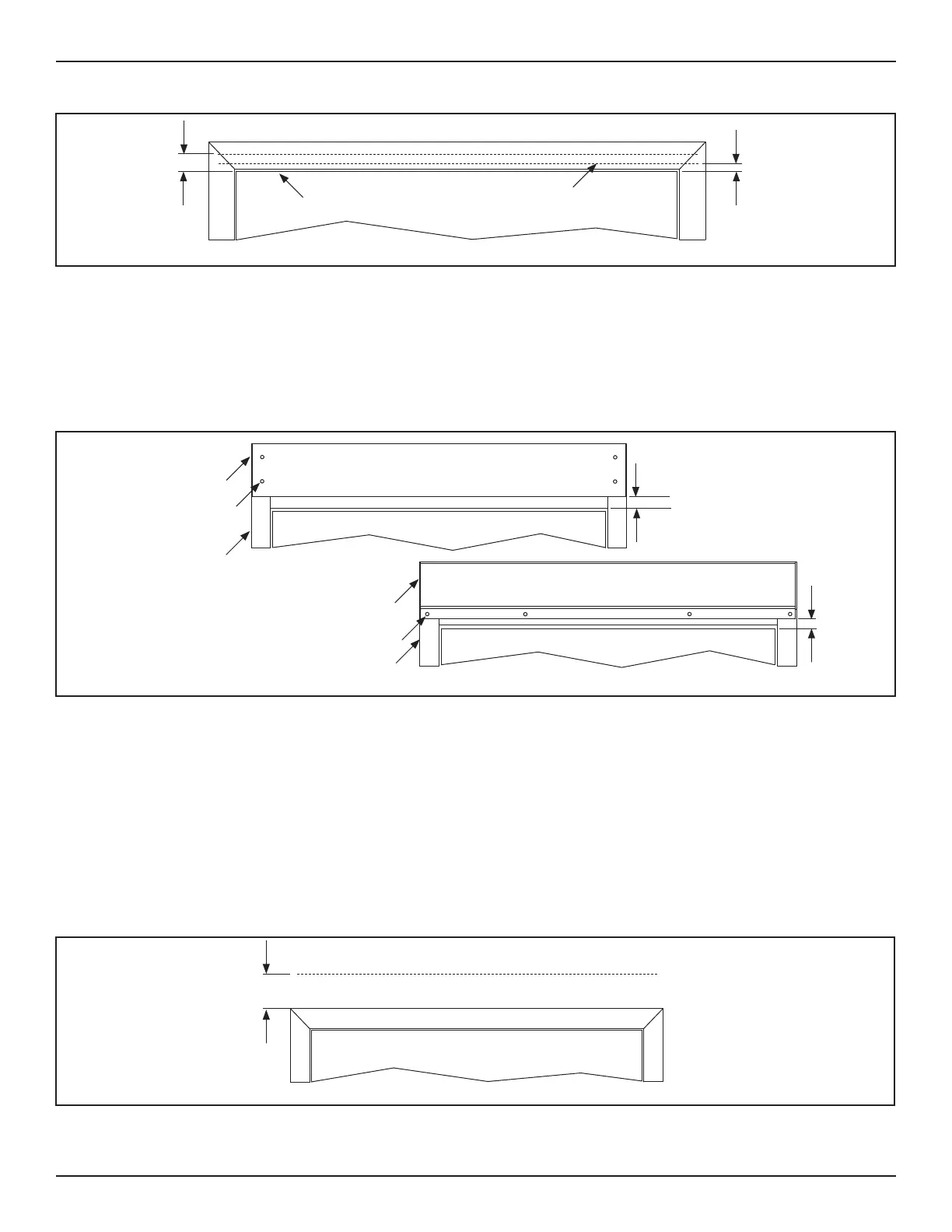

Figure 4 Measure from the Top of Swing door to the Top Door Frame
X
X
DN 1116
Pivot side of Header
1/4” screw holes
1-1/8”
(GT 8710)
Pivot Door Jamb
1/8”
(GT 710)
Pivot side of Header
1/4” screw holes
Pivot Door Jamb
Figure 5 Position Header onto Door Frame
SECTION 43: Install the Shim (Metal Door Frames)
DN 1084
Measure between
Top of Door Frame
and Top of Header
Figure 6 Measure for Shim Dimension
To Next Page
