www.NabcoEntrances.com GT 710-8710 OPUS Low Energy Swing Doors Quick Set-Up and Parts Guide
Rev 12-20-17 P/N C-00178
Note: It may be necessary to remove the Motor/Operator from the Header to reduce weight, while posioning the Header onto
the Door Frame.
Cover in Closed Posi on
Swing
UP
to Open
Li UP to
Pull out
Remove Screws
GT 8710 Header
GT 710 Header

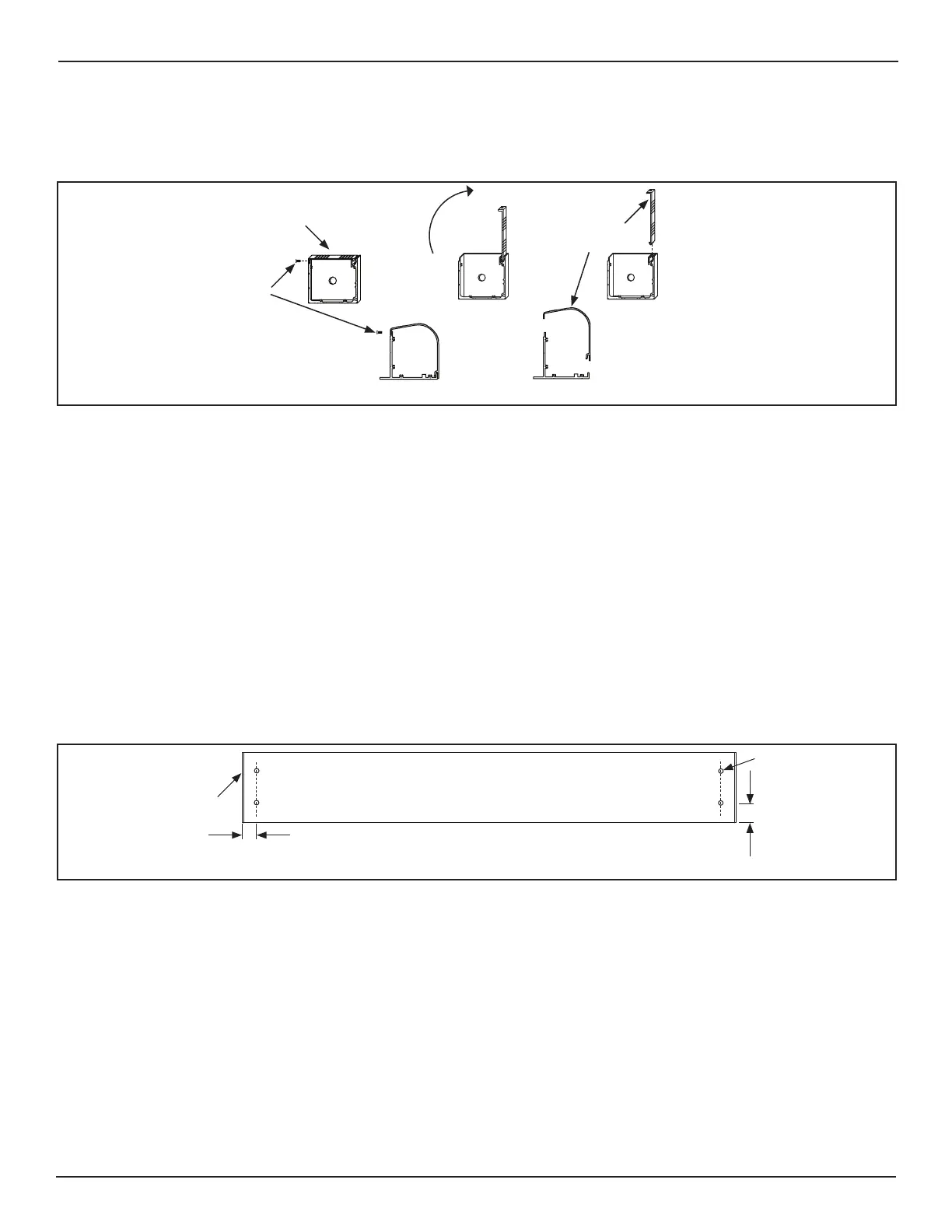

Figure 2 Remove Cover from Header
SECTION 41: Drill Holes in Header (GT8710)
FOR GT710 UNITS SKIP TO
SECTION 4.2
Note: Protect Header Components from metal chips when drilling.
5
DN 1086
Pivot side of Header
1”
at least
1/2”
Figure 3 Drill 1/4” Screw holes on both sides of Header
SECTION 42: Prepare the Door Frame
Note: The following instrucons are for typical Metal Doors and Frame Prole. It is recommended to use lag bolts.
Note: If the Door Frame is not properly reinforced nor anchored to the building surface, and/or is hollow, reinforce the Door
Frame with 1/4-20 blind rivnuts (not provided by NABCO).
Note: If the Door Frame is not Metal, ensure the Door Frame being used is of equal strength.
Note: Spindle locaon is very important when measuring from the Door Jamb.
X
X
