Nabco GYRO TECH Nabco Multi-Module - Mode 1 - Bi-Directional Door Sequencer Diagram - Analog Control

Page 10 www.NabcoEntrances.com 5-7-10
Nabco Multi-Module

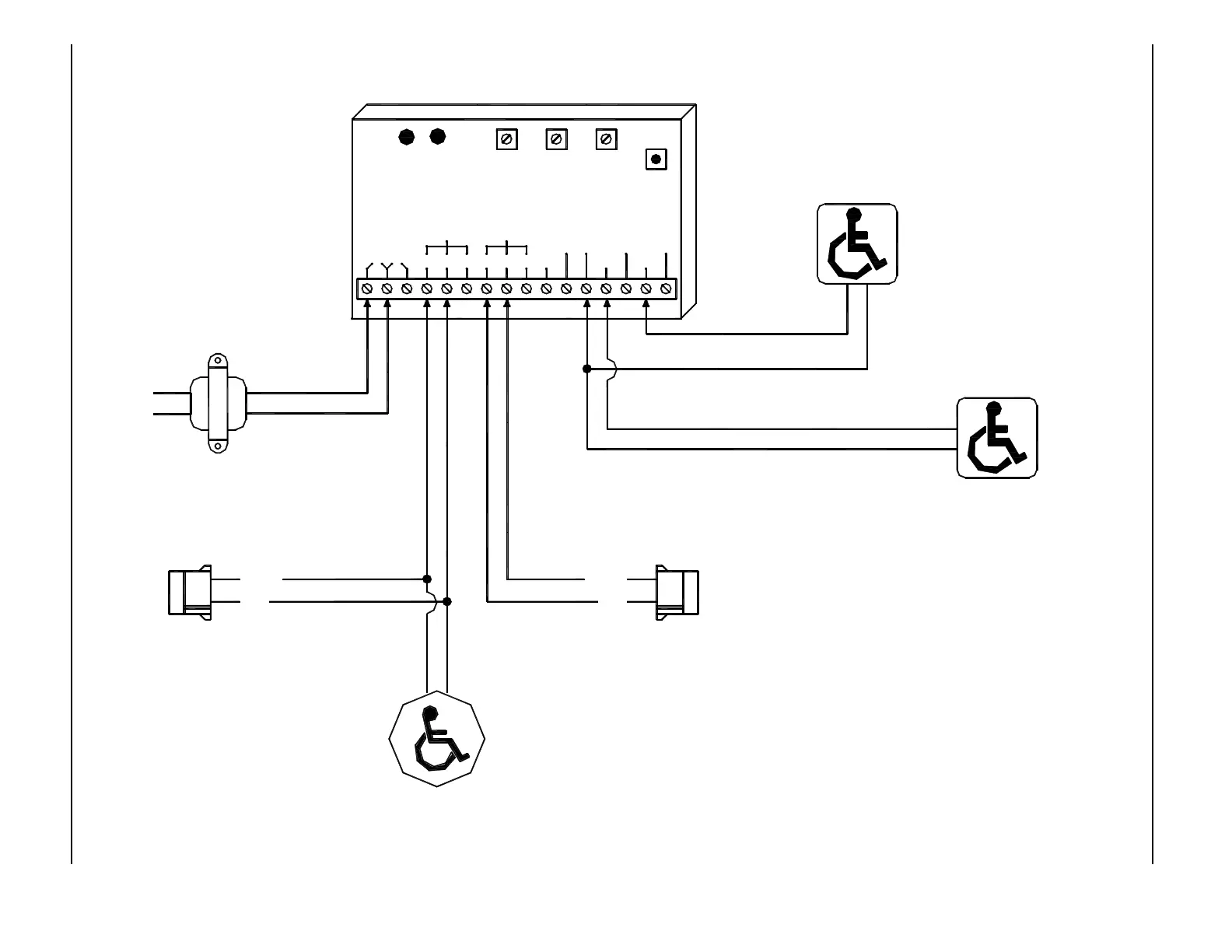

MODE 1 - BI-DIRECTIONAL DOOR SEQUENCER DIAGRAM - ANALOG CONTROL
iti-200S
RELAY2RELAY1
WET3WET2
DRY2DRY1
DRY
COMCOM
WET
WET1N.O. COM N.C.N.C.COMN.O.
12V24V
LED LED
RL2RL1
RELAY 1
ON TIME
DOO
(DELAY
ON
OPERATE)
RELAY 2
RELAY 2
ON TIME
SW 1
MODE
SWITCH
DN 0302
Normally Open - Dry Contacts
INTERIOR PUSH SWITCH
EXTERIOR PUSH SWITCH
Normally Open - Dry Contacts
OPTIONAL VESTIBULE PUSH SWITCH
Normally Open - Dry Contacts
NOTE:
1. When the module is triggered
by push switch (DRY1)
Relay # 1 will activate
first, then after an adjustable
delay, Relay # 2 will activate.
When the module is triggered
by the push switch (DRY2)
Relay # 2 will activate
first, then after an adjustable
delay, Relay # 1 will activate.
2. A black circle indicates a
wire connection.
3. Power supply inputs not
polarity sensitive.
BLACK
RED
RED
BLACK
Activation Connector
on Exterior Analog
Control
Activation Connector
on Interior Analog
Control
Transformer
P/N 14-2101
24 VAC
24 VAC120 VAC
