Nabco U30 User Manual

Rev. 3-12-13 Part #15-9000-30
www.NabcoEntrances.com U30 Microprocessor Control
2-5 Geng Started
CHAPTER 2: GETTING STARTED
Secon 2a: About the U30 Microprocessor Control
The U30 Microprocessor Controller (P/N 24-8901-30) is utilized on all GT-1175 Slide Door
systems to control numerous operating characteristics that include (but not limited to): speed,
recycling sensitivity and reduced opening width. Please see .

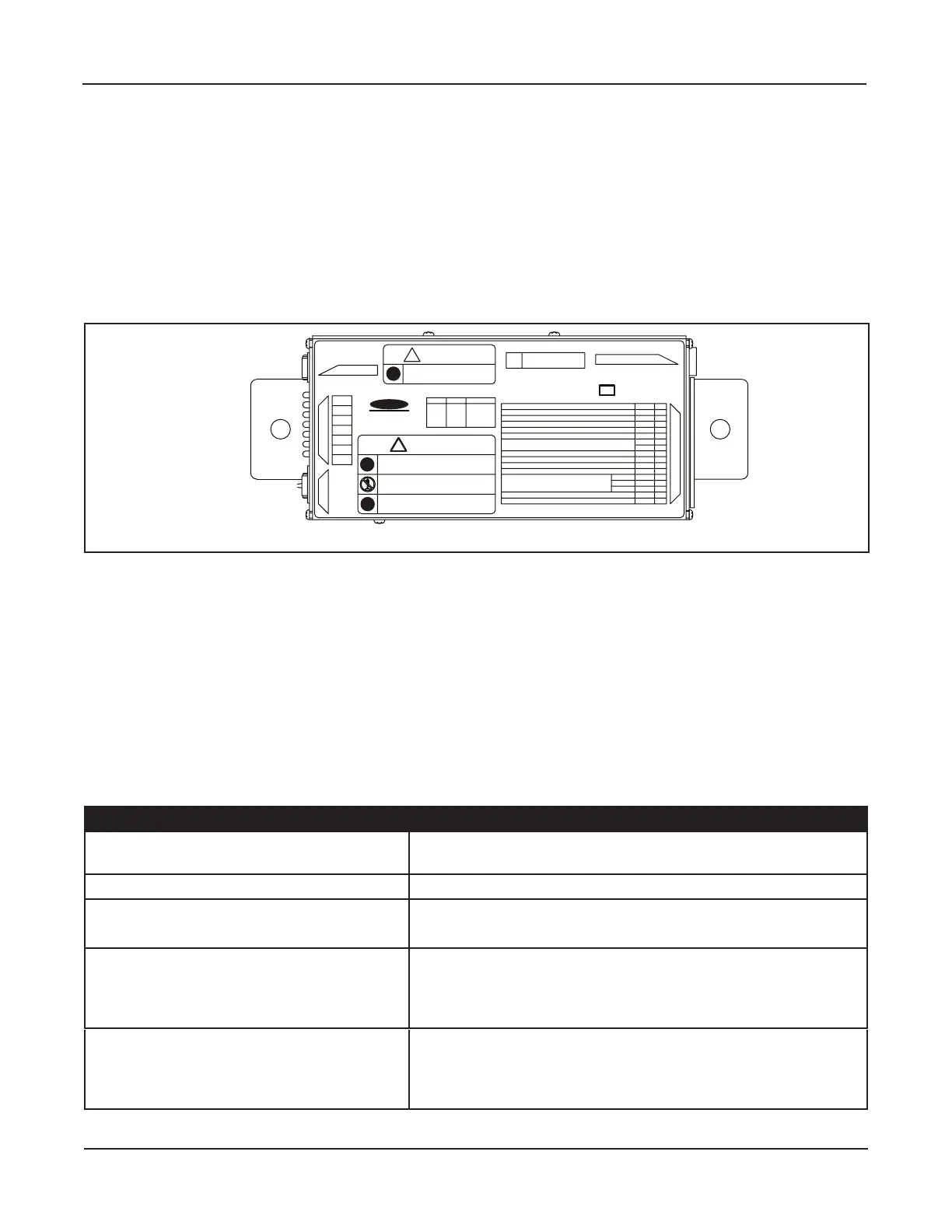

Figure 2-1 U30 Microprocessor Control
DN 0650
RELATED DEVICES･16P
12
13
14
15
16
No.
11
10
9
8
7
6
5
4
3
2
1
SYMBOL
H
M0
9DC12V
SQ
OUT
Common
N/C
N/O
OUT.A
OUT.B
OUT.C
7
BA
62
SLS
M1
6B
7
61
Sequential Activation
Auxiliary Output (Open-Collector)
5Amax.(0-20V), 3.2Amax.(20-30V)
30V(42.4Vpeak)max.
Contact Output (Class2 Load only)
12VDC-(Common)
FUNCTION [SLIDING DOOR]
Reduced Opening Switch
Breakout Detector
Sidelite Presence Sensor
Exterior Activation
Holding Beam
Interior Activation
12VDC-(Common)
12VDC+
Mode Switch (see Mode SW Usage shown left)
CAUTION
!
Do not disassemble the control box.
There are no user serviceable parts
inside.
To maintain warranty,repairs must be
made by authorized NABCO facilities.
Adjustments to the door can only be made
with the NABCO Handy Terminal.
GYRO TECH
NABCO
fire
ly.
Mode SW Usage
Gnd
GndGnd
Open
Open
Open
Gnd
Open
M0
M1
MODE
TWO WAY
ONE WAY
NIGHT
HOLD OPEN
HANDY TERMINAL･6P
248901-
Microprocessor Controller
No.
To protect against risk of
or electric shock,use only the
certified NABCO power supp
WARNING
MOTOR･12P
ERROR
POWER
BA
62
H
6B
61
INDICATORS
POWER･2P
20VAC 50/60Hz
!
!
!
!
The U30 Microprocessor Controller is also utilized to output power to accessories and/or
auxiliary equipment such as:
► Sensors
► Modules
There are times when the U30 Microprocessor Controller is not utilized to output power because
some accessories and/or auxiliary equipment are shipped with it’s own dedicated power supply.
Secon 2b: Specicaons
Table 2-1 
Electricity Description
Power Source 20 VAC (±10%) 50-60Hz, 100 VA (Class 2)
(Use genuine Class 2 power supply module ONLY)
Current Consumption Max. 5A
Power Output
(#9DC, 12V and #7)
12 VDC 0.35 amps (350 mA)
Class 2 Power Supply
Output Rating

Relay Output
X Max. 30V (42.4V peak)
X Max. 5A (0 to 20V) or 3.2A (20 to 30V)
X Class 2 Load Only
Output Rating
(# OUT and #7)
Open collector Transistor Output
► Max. 30V (42.4V peak)
► Max 50mA
► Class 2 Load Only
