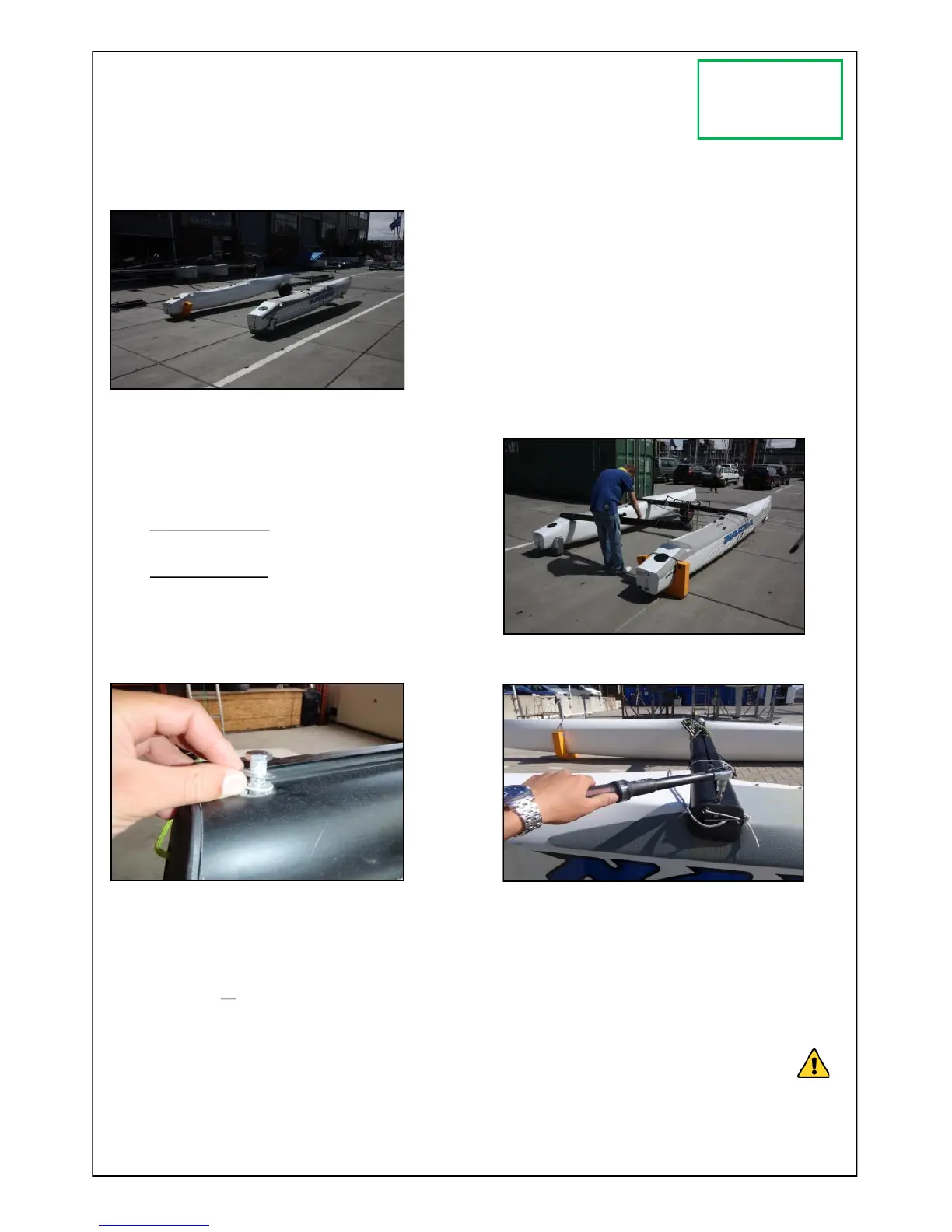

1. Platform assembly
1. Place the starboard and port hull next to each other
and make sure that the hulls are facing the same way
2. Open the crossbar kit and grease the eight beambolt
inserts on the hulls.
use a big wheel trolley and sterns to level the hulls .
3. Place the crossbars in the crossbar sockets on the
hulls and make sure that the crossbars are facing
the right way.
The front crossbar has a jib track mounted, which
should be on top and facing the front of the boat.
The rear crossbar has two eyelets mounted on the
back which should be facing the back of the boat.
Take me to align the crossbars !
4. Grease all bolts and make sure the berglass washer is at the boem and the metal washer on top .
The washers for the front crossbar are allready put in the slot on top of the front crossbar.
5. Handght all the bolts before pung tension on them.
6. Aer hand ghtening the bolts, use a torque wrench to ghten the beambolts to 30 Nm maximum.
Do not exceed the recommended 30 Nm, over ghtening the bolts results in damaged threads.
1.1 Hull assembly
Tools needed:
- torgue wrench
- sockets
