ATTENTION!
Please make all the connections to your C 568 with the unit unplugged. It is also advisable to power down or unplug all associated components while
making or breaking any signal or AC power connections.
1 LINE OUT: Connect to the corresponding analog audio input of an
amplier, receiver or stereo system.
2 DIGITAL OUT (COAXIAL, OPTICAL): The digital playback audio output
signal is available at these ports. Connect the optical or coaxial digital
OUT ports to the corresponding S/PDIF digital input of an amplier,
receiver, computer soundcard or other digital processors.
3 +12V TRIGGER IN: This input allows the C 568 to be switched remotely
to standby and ON by ancillary equipment, such as an amplier,
preamp, AV processor, etc. The controlling device must be equipped
with a 12 V trigger output to use this feature. Connect this +12V-trigger
input to the remote component’s corresponding +12V DC output jack
using a mono cable with 3.5mm male plug.
WARNING
If the male plug of the mono cable (with or without +12V DC) is
connected to C 568’s +12V TRIGGER IN, the Standby button in the front
panel as well as the corresponding ON/OFF function keys in the remote
control will be disabled. Unplug the mono cable to maintain normal
power ON/OFF function procedures.
4 IR IN: This input is connected to the output of an IR (infrared) repeater
(Xantech or similar) or the IR output of another component to allow
control of the C 568 from a remote location.
5 AC MAINS INPUT: The C 568 comes supplied with a separate AC Mains
cable. Before connecting the cable to a live wall socket ensure that it
is rmly connected to the C 568’s AC Mains input socket rst. Always
disconnect the AC Mains cable plug from the live wall socket rst, before
disconnecting the cable from the C 568’s Mains input socket.

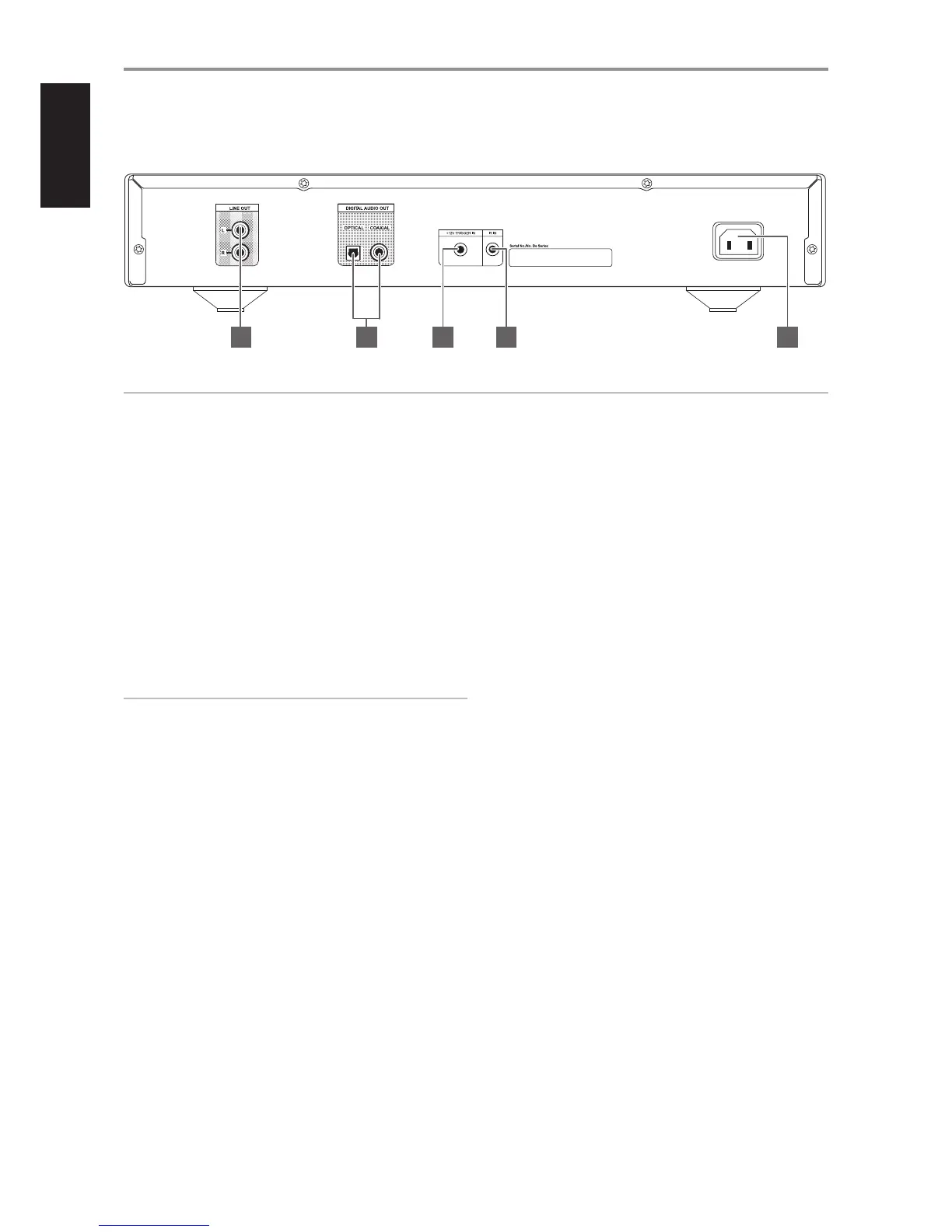

IDENTIFICATION OF CONTROLS
REAR PANEL
© NAD C 568
2 3 4 51
8
