NAD C715 - C715 C EXPLODED VIEW (230 V European version without DAB receiver); C715 C EXPLODED PART LIST; SCREW

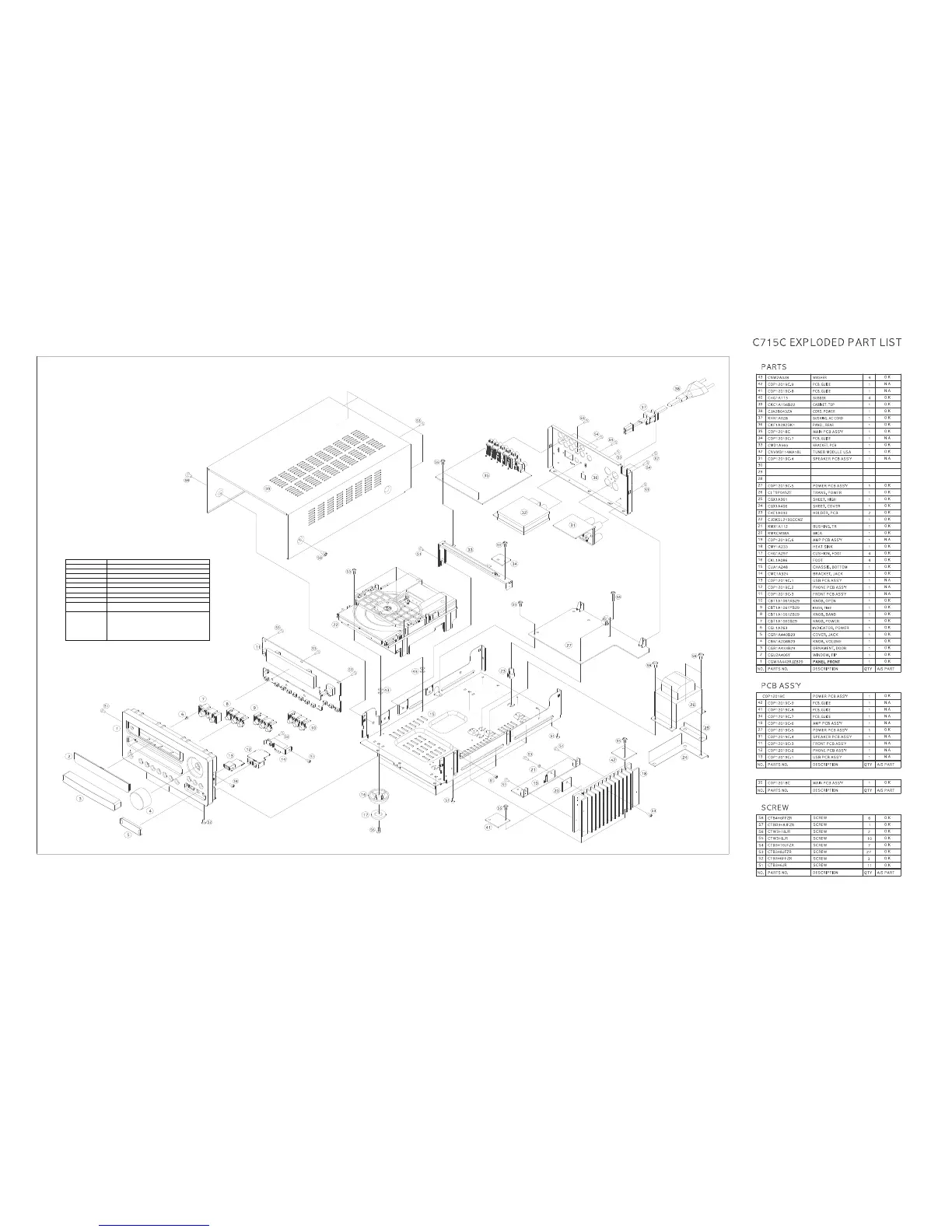

C715C EXPLODED VIEW (230V European version without DAB receiver)
1-11 1-12
CD Mechanism Sony**
Classification
Time of application
POWER PCB
POWER PCB ASS'Y
DAB MODULE
Rear Panel
Washer
Nut
CD Mechanism
Program
**Chart B C715 change LIST
C715C, C715AH, C715DABC CD Mechanism change
2008.10 Start
CJDWSL11VF Sanyo
N AD C515/C715 FIRMWARE LOADER
Change both mechanism and program simultaneously.
The new Sanyo mechanism will not work with a servo
which has original Sony firmware installed.
.
