NAD C715 Service Manual

TDA 7292
+5V
18K15K
IN (L)
1μF
15K 1μF
MUTE/
ST-BY
GND
IN (R)
1μF
4.7Ω
4.7Ω
100nF
100nF
OUT (L)
OUT (R)
1000μF
1000μF
+V
S
3
5
7
9
6
11
2
4
+
+
-
-
D94AU085
RL (L)
RL (R)
-V
S
μP
560Ω
18K
IN- (L)
8
10 IN- (R)
1
560Ω
18K
This is preliminary information on a new product now in development. Details are subject to change without notice.
April 2005
1
2
3
4
5
6
7
9
10
11
8
IN+(1)
IN-(1)
GND
IN-(2)
IN+(2)
-V
S
MUTE/St-By
OUTPUT(2)
+V
S
OUTPUT(1)
-V
S
TAB CONNECTED TO PIN 6
D95AU316
Pin Connection (Top view)

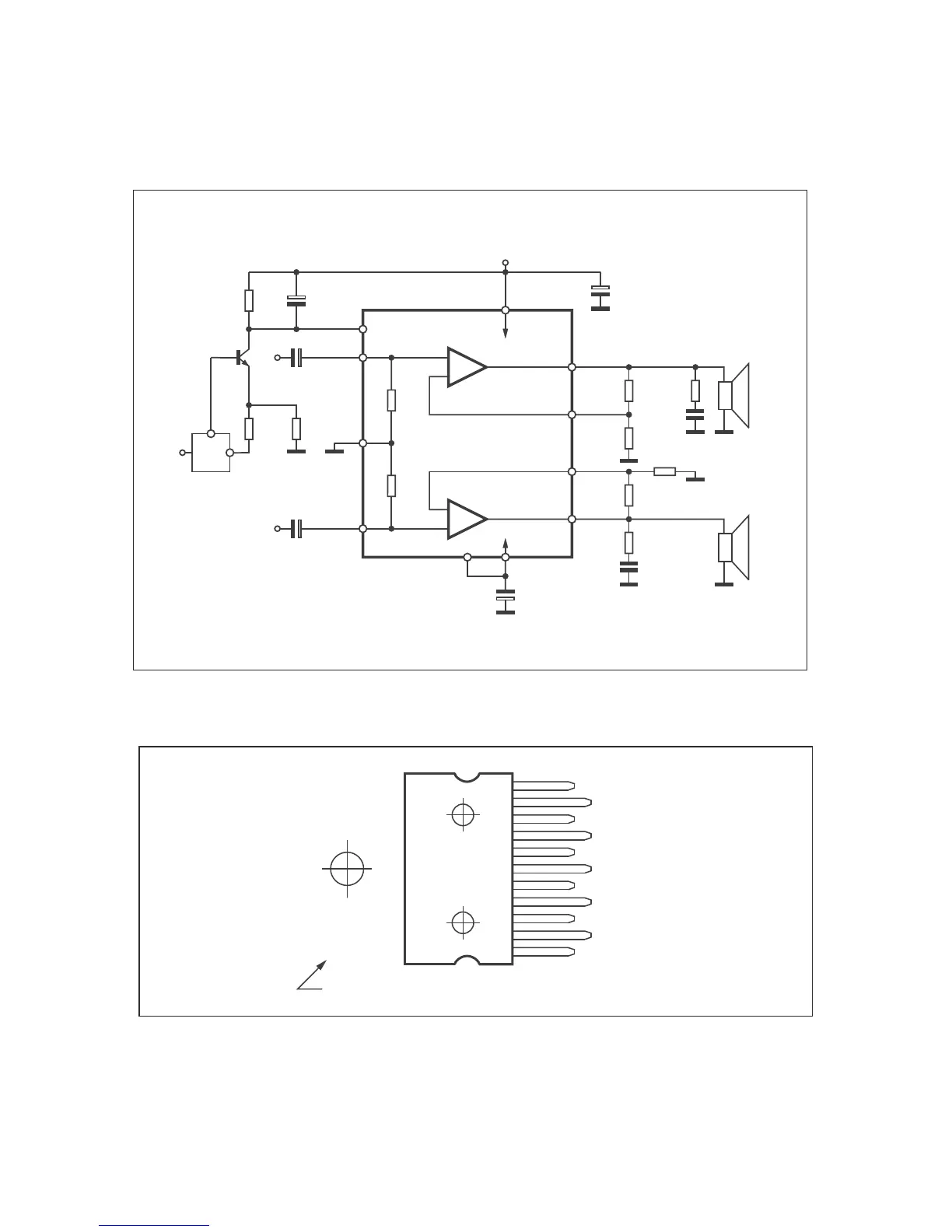

Typical Application Circuit in Split Supply
2-32

NAD C715 Specifications

General

Frequency range	80 - 22000 Hz
Audio formats supported	MP3
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.15 %
Digital tuner	Yes
Supported radio bands	AM, FM
Device type	Portable CD player
Product color	Black
Disc loading type	Tray
Channel separation	78 dB
Number of optical discs	1 discs
Volume control	Rotary
Video in	1
Package depth	116 mm
Package height	362 mm
Package weight	6000 g

Weight and Dimensions

Depth	324 mm
Width	213 mm
Height	103 mm
Weight	4500 g
