NAD C715 - C715 AH EXPLODED VIEW (120 V North American version); C715 AH EXPLODED PART LIST; SCREW

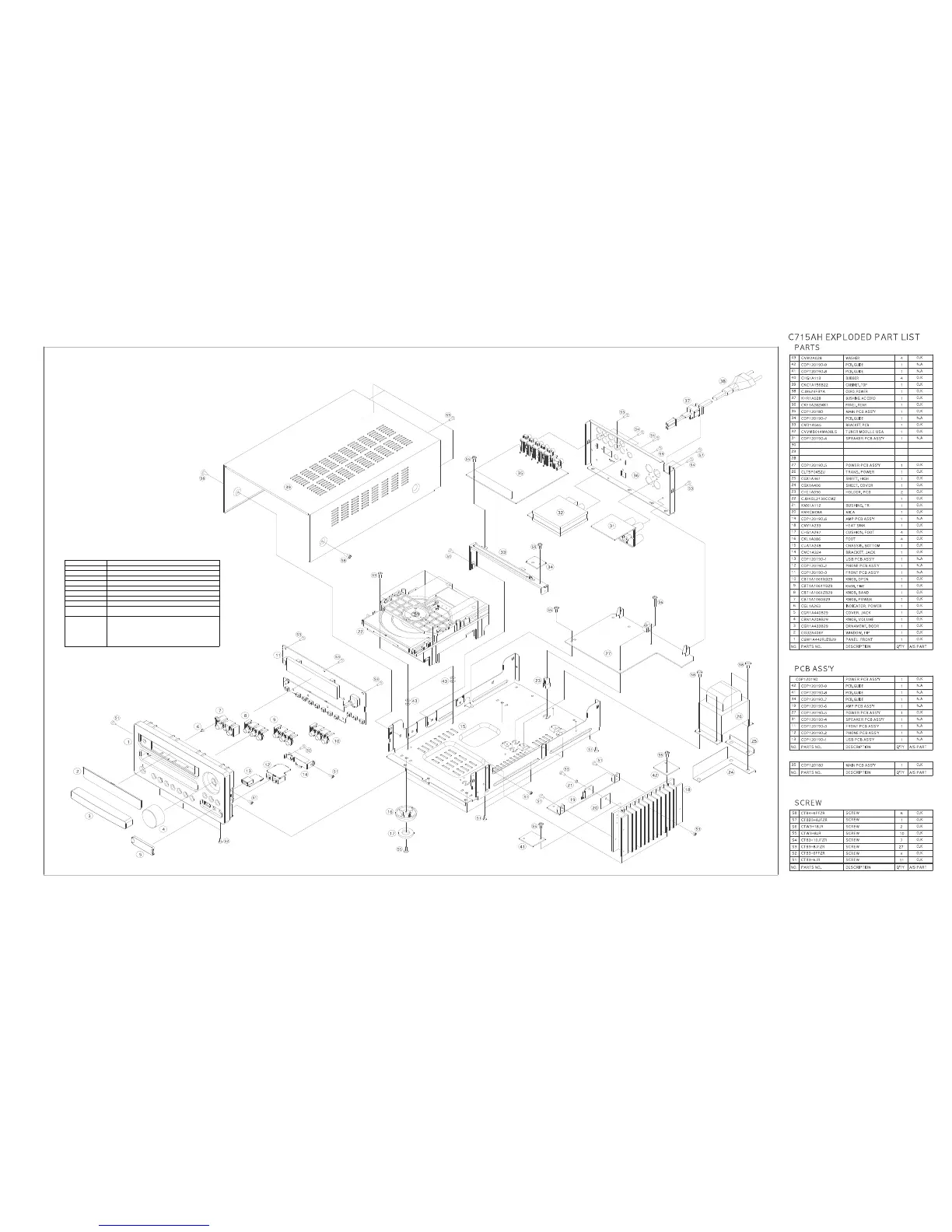

C715AH EXPLODED VIEW (120V North American version)
1-9 1-10
CD Mechansim Sony**
Classification
Time of application
POWER PCB
POWER PCB ASS'Y
DAB MODULE
Rear Panel
Washer
Nut
CD Mechanism
Program
**Chart B C715 change LIST
C715C, C715AH, C715DABC CD Mechanism change
2008.10 Start
CJDWSL11VF Sanyo
NAD "C515/C715 FIRMWARE LOADER"
Change both mechanism and program simultaneously.
The new Sanyo mechanism will not work with a servo
which has original Sony firmware installed.
