NAD C715 Service Manual

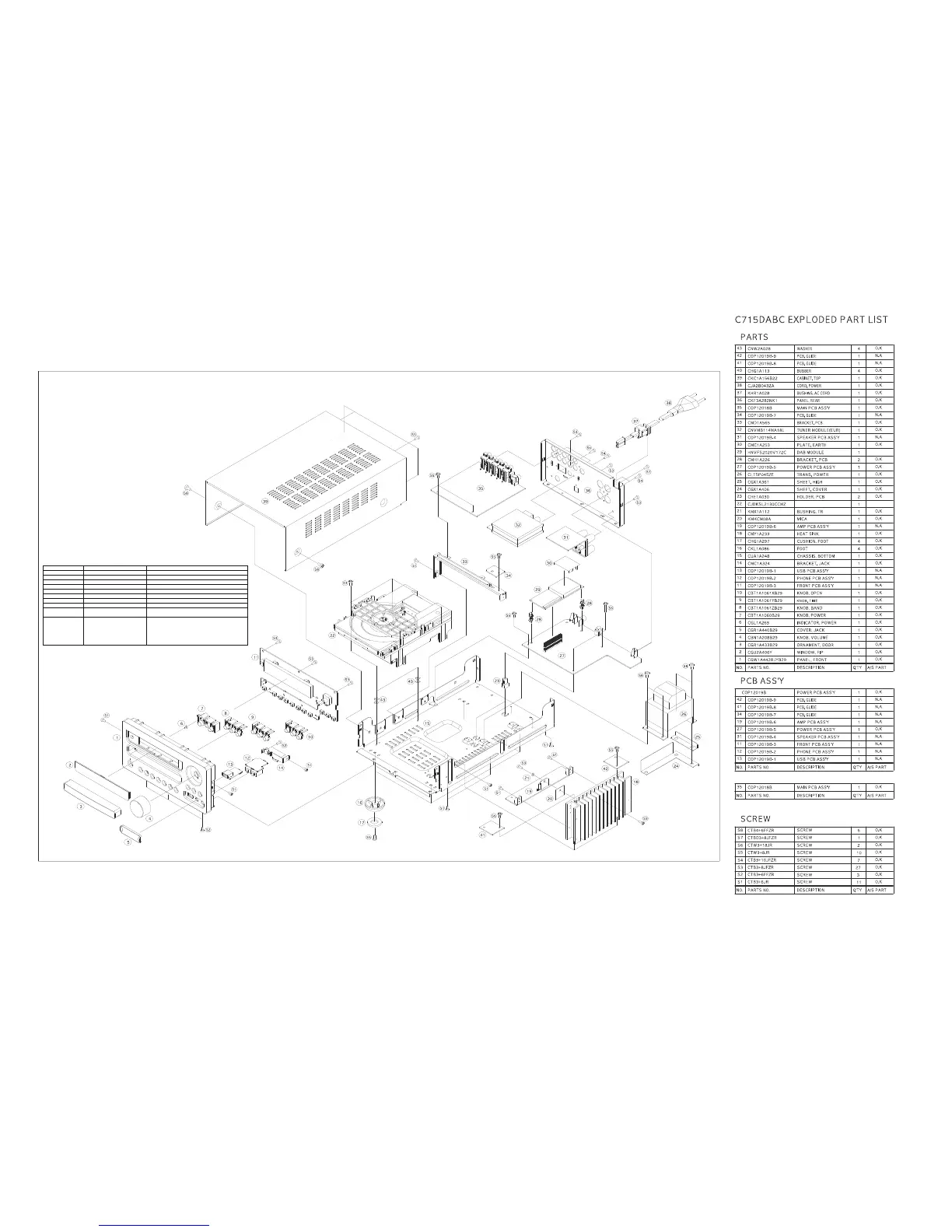

C715DABC EXPLODED VIEW (230V European version with DAB receiver)
1-13 1-14
W/O F -C onnector
CD Mechanism Sony **
Classification
C715DABC OLD (DAB 1.0 MODULE)
Time of application 2007.11 Start to A86C71512400 End
POWER PCB CUP12019Z
POWER PCB ASS'Y COP12019B
DAB MODULE HNVFS2020V172C
Rear Panel CKF3A282NK1
Washer -
Nut -
CD Mechanism CJDKSL2130CCMZ Sony
Program
NAD_c715_2007_10_13-01.hex /
NAD_c715_2008_10-02.hex
It is possible to use "C515/C715
FIRMWARE LOADER" with the old
NAD "C515/C715 FIRMWARE LOADER"
Change both mechanism and program simultaneously.
The new Sanyo mechanism will not work with a servo
which has original Sony firmware installed.
DAB 1.0 MODULE
**Chart B C715 change LIST
C715C, C715AH, C715DABC CD Mechanism change
2008.10 Start
-
-
-
-
-
-
CJDWSL11VF Sanyo
See chart B
See chart B

NAD C715 Specifications

General

Frequency range	80 - 22000 Hz
Audio formats supported	MP3
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.15 %
Digital tuner	Yes
Supported radio bands	AM, FM
Device type	Portable CD player
Product color	Black
Disc loading type	Tray
Channel separation	78 dB
Number of optical discs	1 discs
Volume control	Rotary
Video in	1
Package depth	116 mm
Package height	362 mm
Package weight	6000 g

Weight and Dimensions

Depth	324 mm
Width	213 mm
Height	103 mm
Weight	4500 g
