NAiS FP Series Technical Manual

FP0 RTD Unit

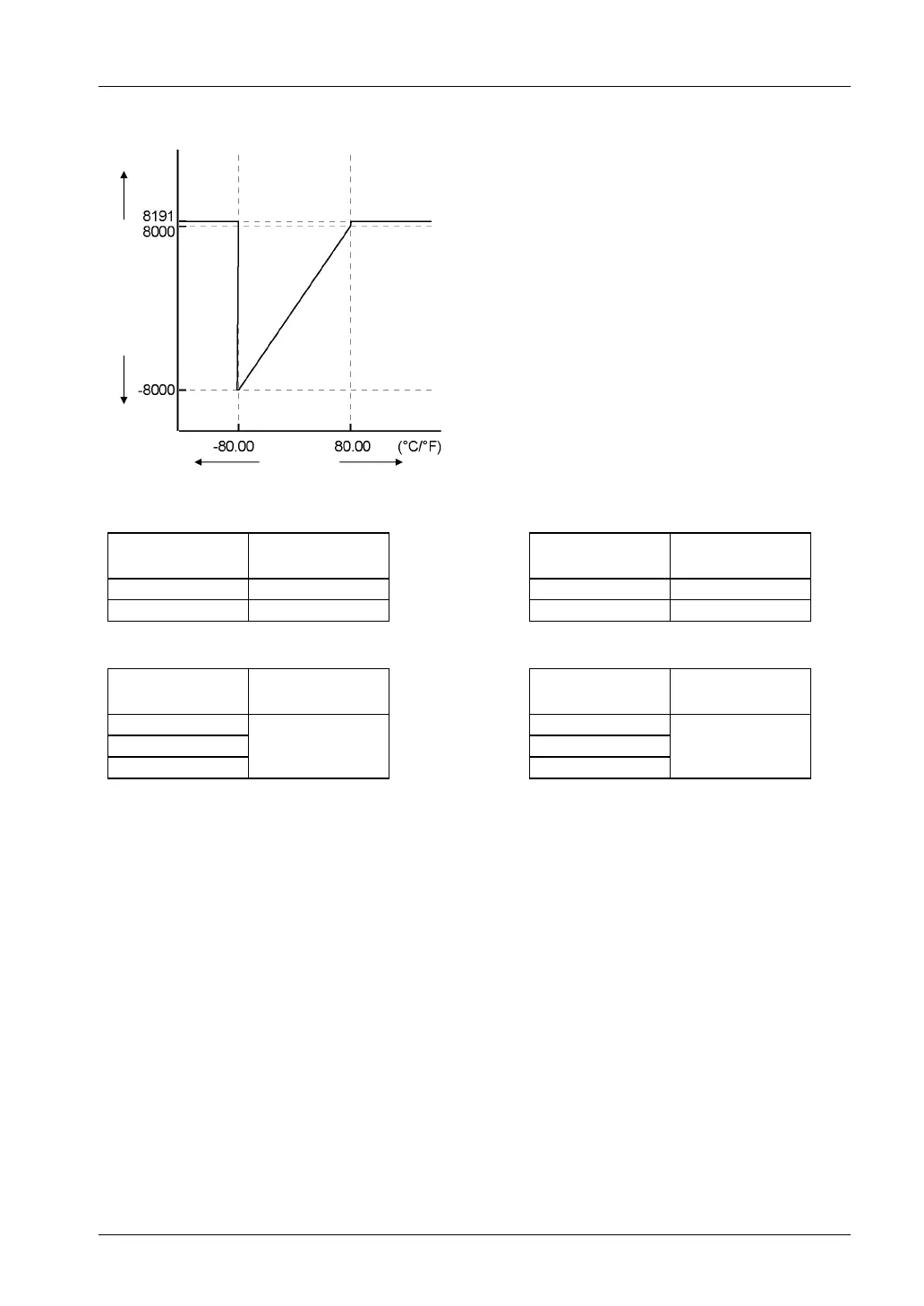

Conversion Characteristics
Input range: -80.00°C to 80.00°C/-80.00°F to 80.00°F, resolution: 0.01K/0.01°F
Converted
value
Input value
Correspondence table for A/D conversion values
Analog input
value (°C)
Digital output
value
Analog input
value (°F)
Digital output
value
-80.00 -8000 -80.00 -8000
+80.00 +8000 +80.00 +8000
Processing if the input value range is exceeded
Analog input
value (°C)
Digital output
value
Analog input
value (°F)
Digital output
value
-80.01 or less -80.01 or less
+80.01 or more +80.01 or more
RTD broken
8191
RTD broken
8191
9
