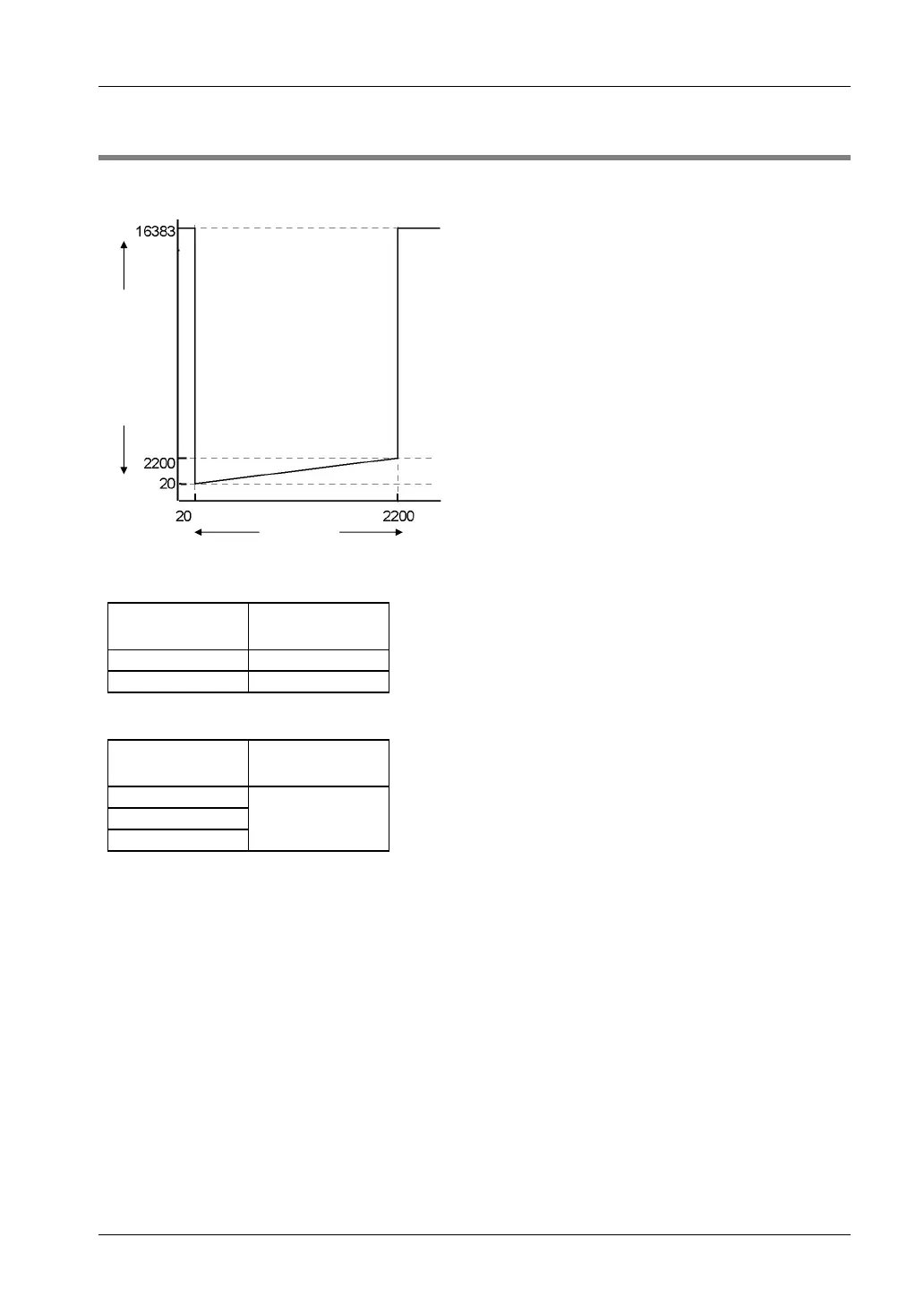

Conversion Characteristics
FP0 RTD Unit
4.4 Resistor
Input range: 20
Ω
to 2200
Ω
, resolution: 1
Ω
Converted
value
Inpu
t value
(
Ω
)
Correspondence table for A/D conversion values
Analog input
valu
e (
Ω
)
Digital output
valu
e
+20 +20
+2200 +2200
Processing if the input value range is exceeded
Analog input
valu
e (
Ω
)
Digital output
valu
e
+19 or less
+2201 or more
Resistor broken
16383
12
20
22
Table of Contents
Before Beginning
2
Limited Warranty
2
Important Symbols
3
Table of Contents
6
Precautions before Use
8
1 Unit Outline
10
Functions
10
Product Number
10
Expansion Limit
10
Part Names and Functions
11
2 Input Range Setting Switch
13
3 Wiring
14
4 Conversion Characteristics
15
Pt1000
17
Ni1000
19
Resistor
21
5 O Allocation and Sample Programs
23
I/O Numbers
23
Programming with FPWIN Pro
25
Programming with FPWIN GR
26
RTD Types Pt100, Pt1000, Ni1000
26
RTD Type Resistor
27
6 When an Error Occurs
29
Troubleshooting
29
Digital Value When out of Measuring Range
29
7 Specifications
30
8 Dimensions
33
Index
34
Record of Changes
36
