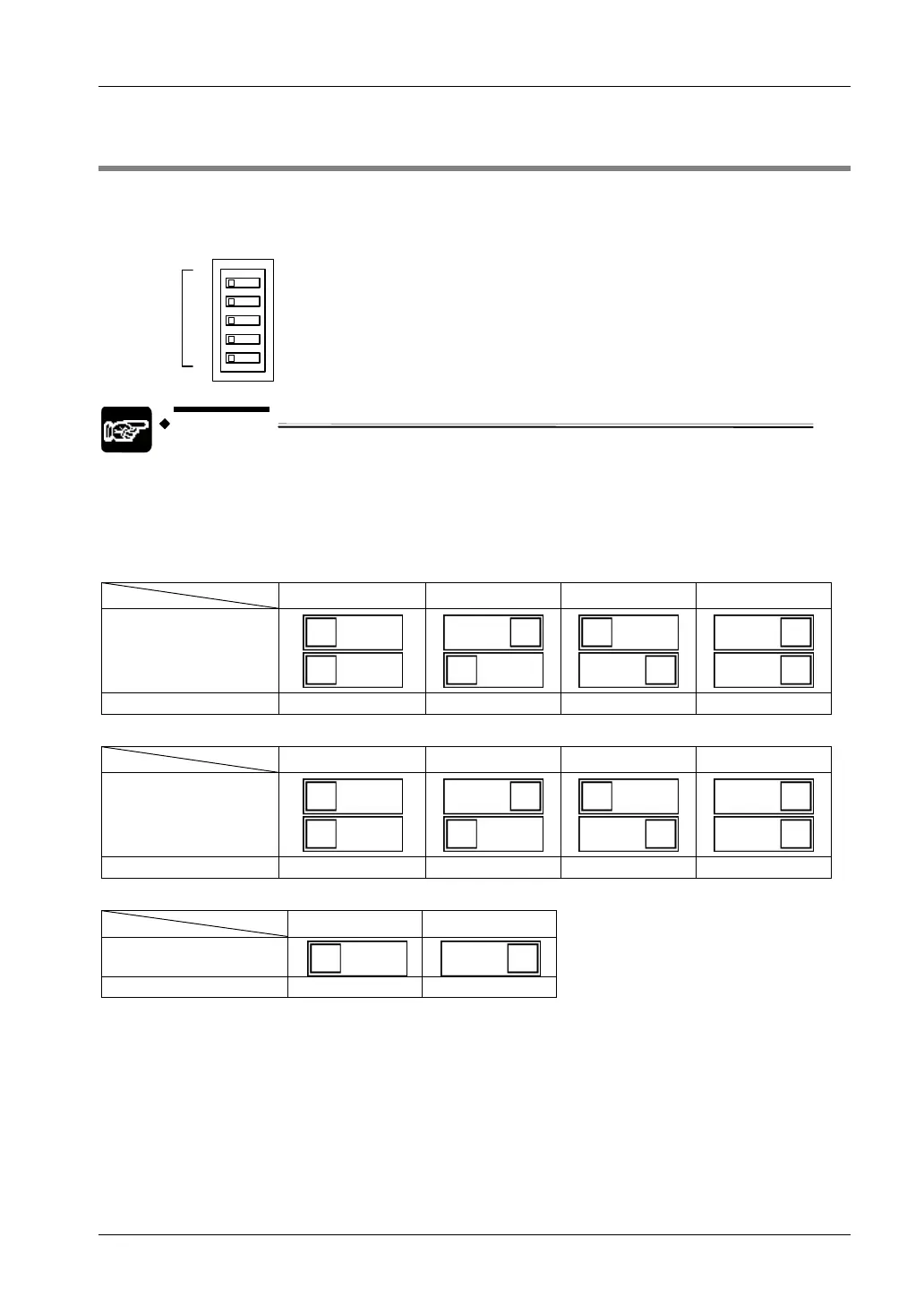

Input Range Setting Switch
FP0 RTD Unit
2 Input Range Setting Switch
Input range setting switch
OFF
2
3
5
4
MODE
ON
1
NOTE
The following switch settings are read once when the control unit is turned ON.
Changes will not be reflected if they are performed while the control unit is
turned ON.
Input range setting switch
OFF ON OFF ON OFF ON OFF ON
MODE SW 1
2
CH0, CH1, CH2 Pt100 Pt1000 Ni1000 Resistor
OFF ON OFF ON OFF ON OFF ON
MODE SW 3
4
CH3, CH4, CH5 Pt100 Pt1000 Ni1000 Resistor
OFF ON OFF ON
MODE SW 5
Sampling cycle 0.1s 1s
