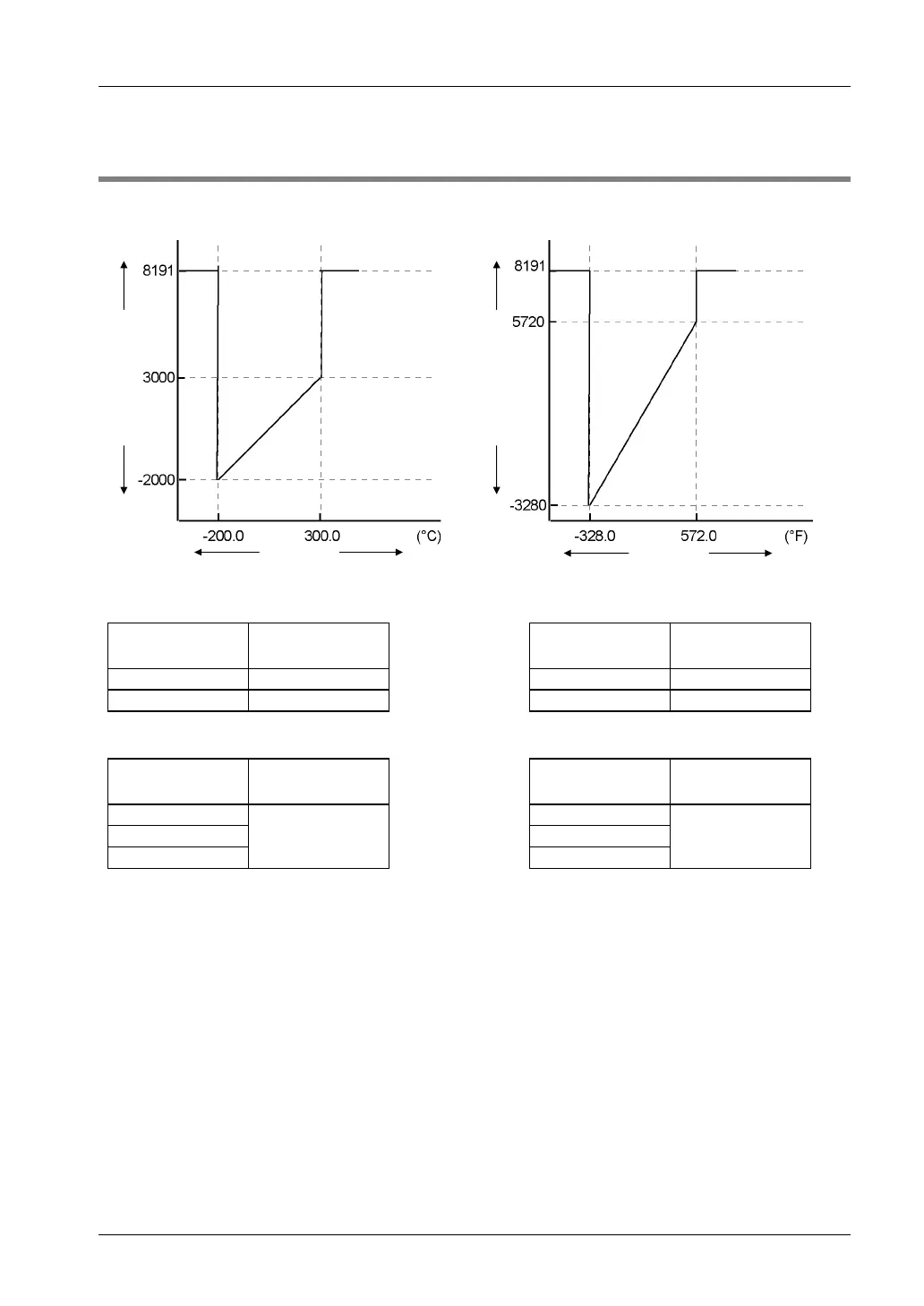

Conversion Characteristics
FP0 RTD Unit
4.2 Pt1000
Input range: -200.0°C to 300.0°C/-328.0°F to 572.0°F, resolution: 0.1K/0.1°F
Converted
value
Input value
Converted
value
Input value
Correspondence table for A/D conversion values
Analog input
value (°C)
Digital output
value
Analog input
value (°F)
Digital output
value
-200.0 -2000 -328.0 -3280
+300.0 +3000 +572.0 +5720
Processing if the input value range is exceeded
Analog input
value (°C)
Digital output
value
Analog input
value (°F)
Digital output
value
-200.1 or less -328.1 or less
+300.1 or more +572.1 or more
RTD broken
8191
RTD broken
8191
8
