NAiS FP Series - 1.2 Unit Types

Conversion Characteristics
FP0 RTD Unit
4.3 Ni1000
Input range: -30.0°C to 150.0°C/-22.0°F to 302.0°F), resolution: 0.1K/0.1°F
Converted
value
Converted
value
Input value
Input value

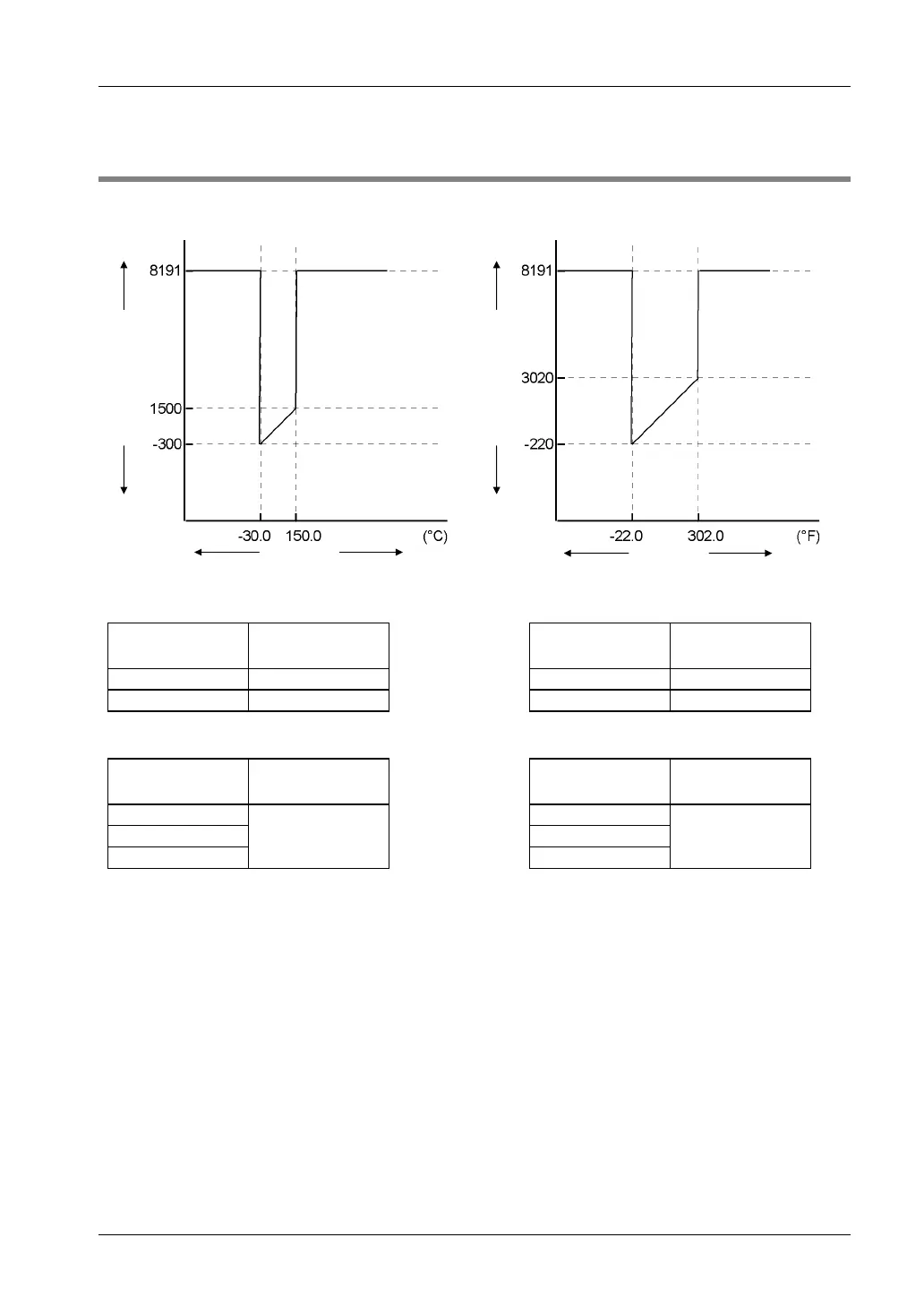

Correspondence table for A/D conversion values
Analog input
value (°C)
Digital output
value
Analog input
value (°F)
Digital output
value
-30.0 -300 -22.0 -220
+150.0 +1500 +302.0 +3020
Processing if the input value range is exceeded
Analog input
value (°C)
Digital output
value
Analog input
value (°F)
Digital output
value
-30.1 or less -22.1 or less
+150.1 or more +302.1 or more
RTD broken
8191
RTD broken
8191
