NAiS FP Series Technical Manual

I/O Allocation and Sample Programs
FP0 RTD Unit
5.2 Programming with FPWIN Pro
Control FPWIN Pro provides the convenient function block “Read_RTD6” to read data from
the input channels. It can be used by the FP0 RTD unit for all RTD types (Pt100, Pt1000,
Ni1000, and Resistor).
You may download it free of charge from Matsushita Electric Work (Europe) AG’s website at:
www.mew-europe.com.

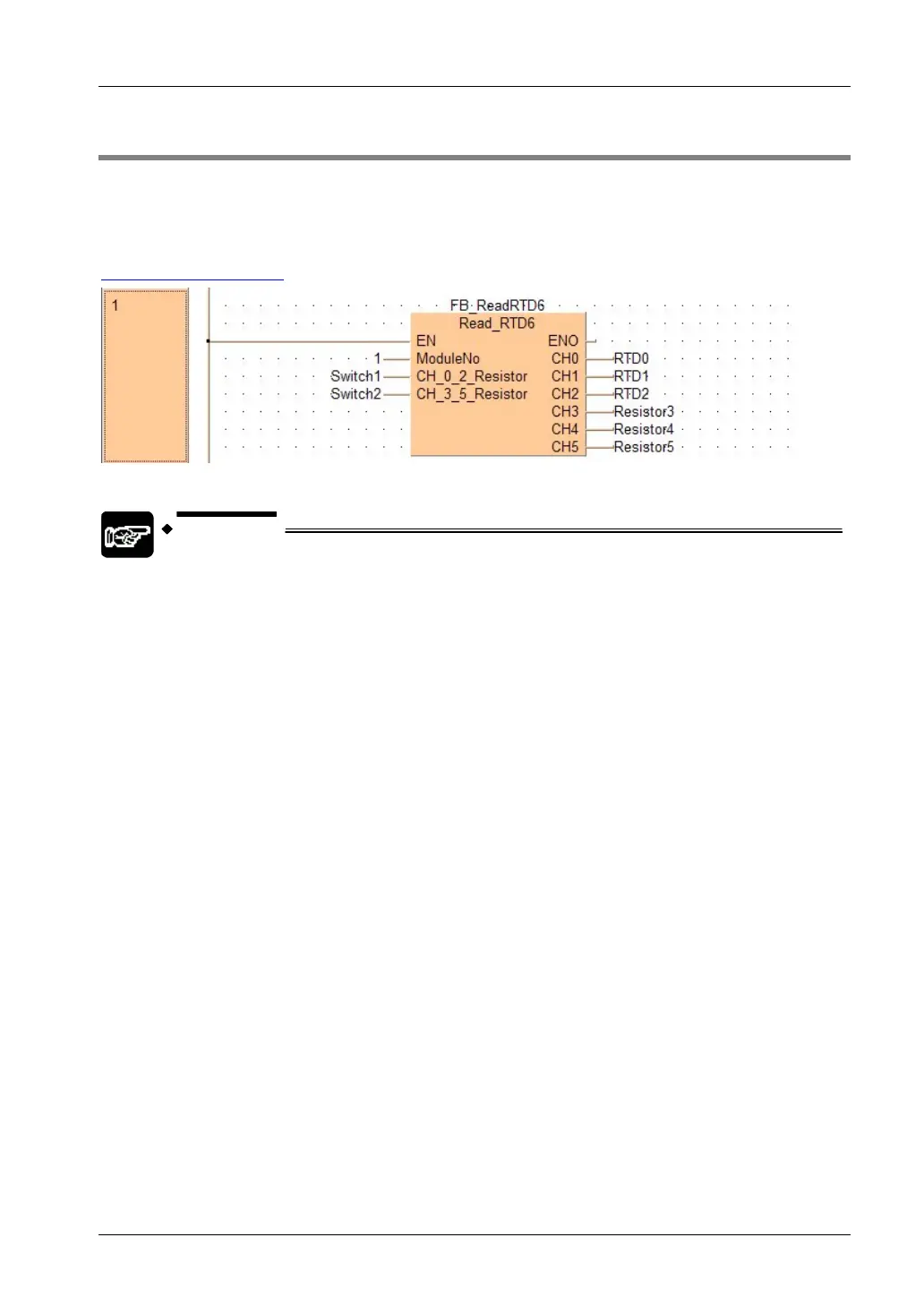

Figure 1: Function block Read_RTD6
NOTES
Select a data range with or without sign for Switch1 and Switch2:
Switch1,2 = FALSE: Pt100, Pt1000, Ni1000 (with sign)
Switch1,2 = TRUE: Resistor (without sign)
16
