NAiS FP Series Technical Manual

Unit Outline
FP0 RTD Unit
REFERENCE
For further information, see page 14, I/O Allocation and Sample Programs.

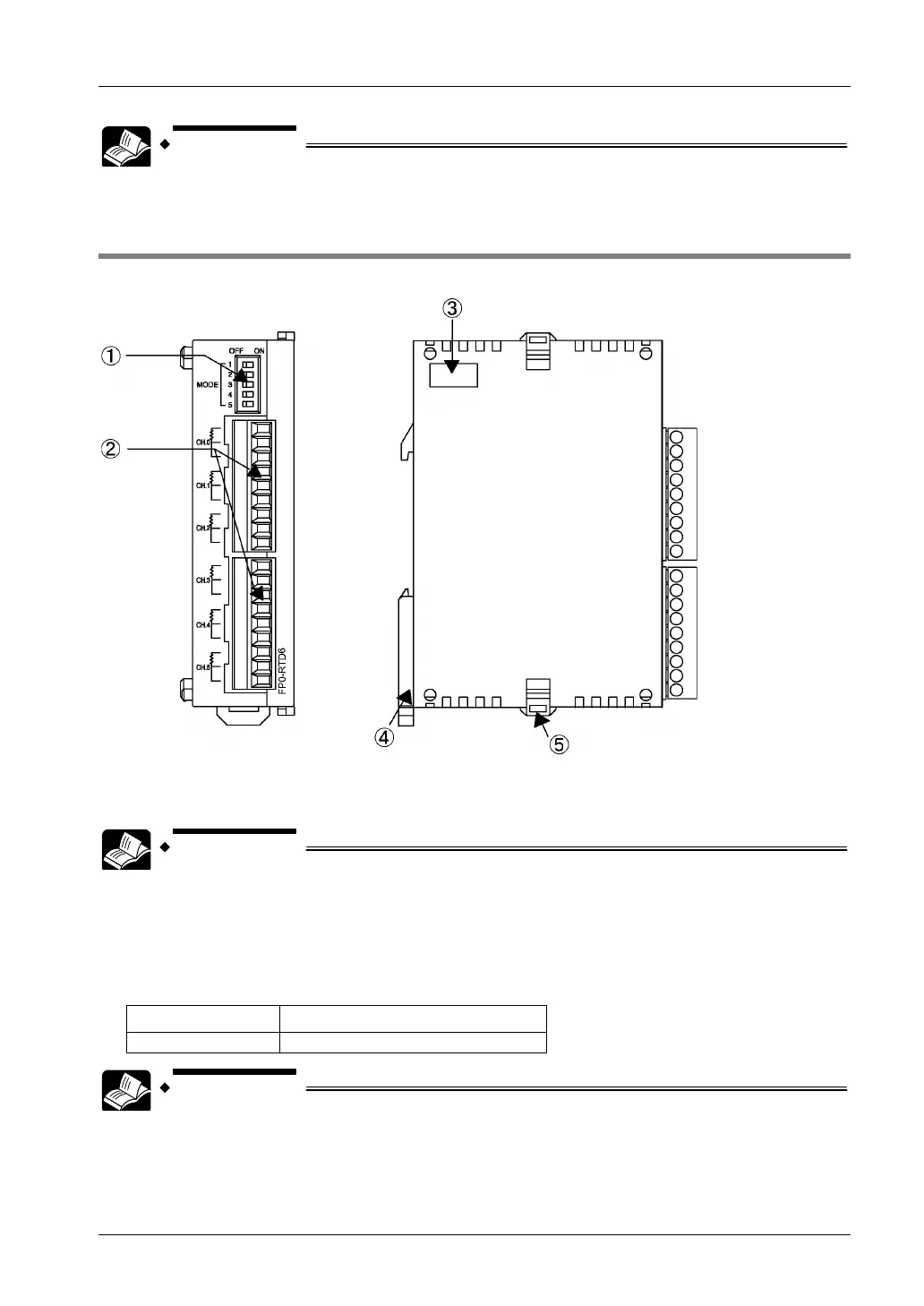

1.4 Part Names and Functions
Left sideFront
1. Input range setting switch
DIP switches to change between the input ranges (RTD types).
REFERENCE
For further information, see page 4, Input Range Setting Switch
2. RTD input terminal block (9-pin)
Manufactured by Phoenix Contact Co. Model No: MC1.5/9-ST-3.5 (Product No.: 1840434).
Suitable wires
Size Nominal cross-sectional area
AWG# 28 to 16 0.08 mm
2
to 1.25mm
2
REFERENCE
FP0 Hardware Manual “Wiring the Terminal Type”
FP∑ User’s Manual “Wiring of Terminal Block Type”
2
