I/O Allocation and Sample Programs

FP0 RTD Unit

Data for CH3 WX3

→

Data after masking

1 0100000000000001 → 0000000000000001

-1 0111111111111111 → 1111111111111111

Bit D: recognizes

positive or negative

Conversion data switch flag

NOTE

X3D, X3E, X3F, WX2 and WX3 may be different, depending on where the FP0

RTD unit is installed.

5.3.2 RTD Type Resistor

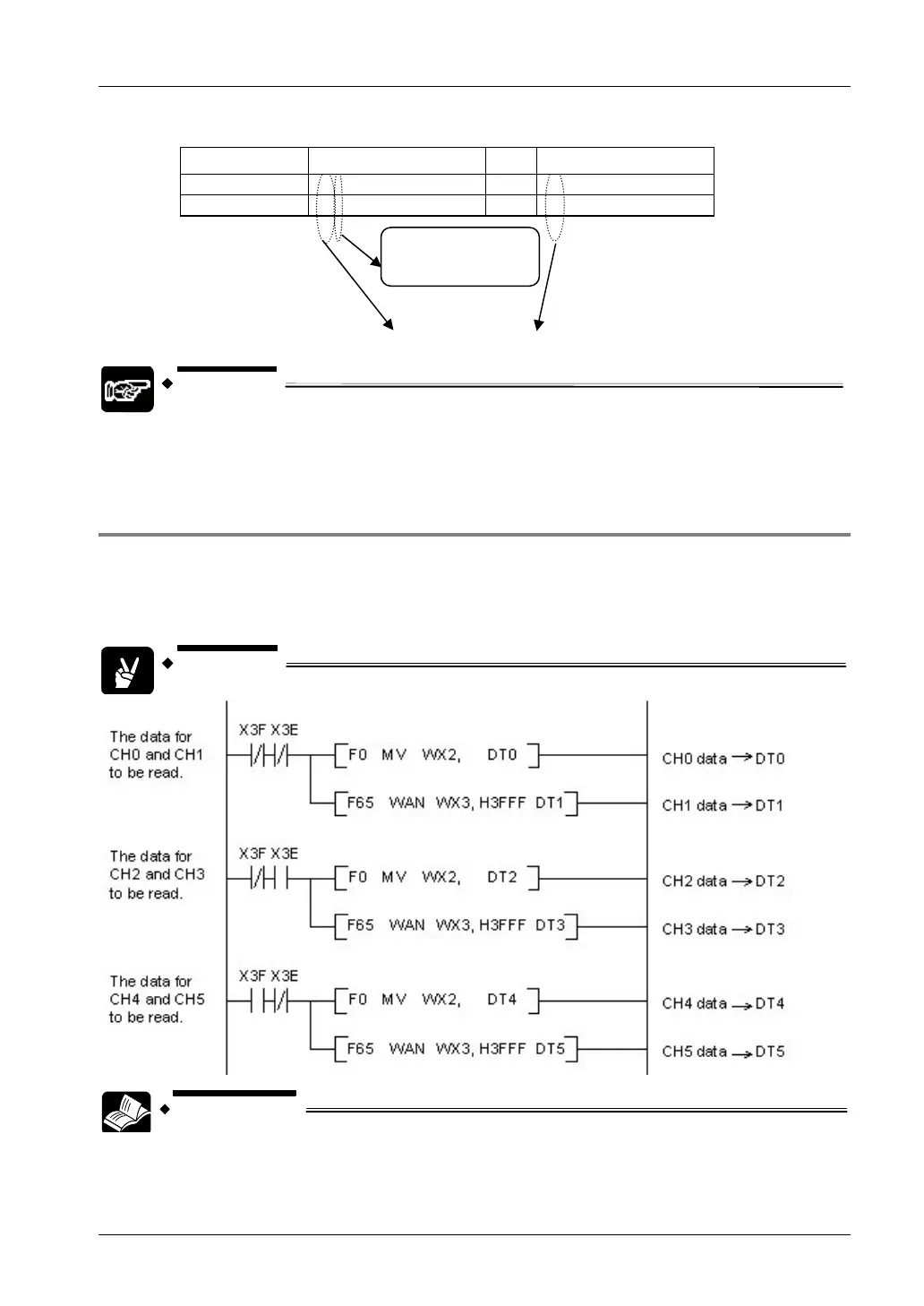

Ladder program to read data from input channels

This program shows you how to store temperature data for CH0 to CH5 of the FP0 RTD unit

installed as expansion unit no.1 in data registers DT0 to DT5.

EXAMPLE

REFERENCE

For further information, see page 14, I/O Allocation and Sample Programs.
