(1) Test Switch
Turning this switch “ON” enters the test mode, and activates the Game Option
Screen on the Player Monitor. This is where the self-tests are performed, and
game variables (pricing, level of difficulty, number of laps per game etc.) are
set/changed (Ref. S-3-(2)).
Turn the test switch to the “OFF position at any
time to return to The Game Screen.
(2) Sound Volume Control
Stereo left and right sound volume adjusrment is made separately for left/right
speakers located behind the marquee panel.
(3) Credit Switch
By pressing this switch, the number of credits can be increased without
advancing the coin counter.
COIN COUNTER
Illus@ation

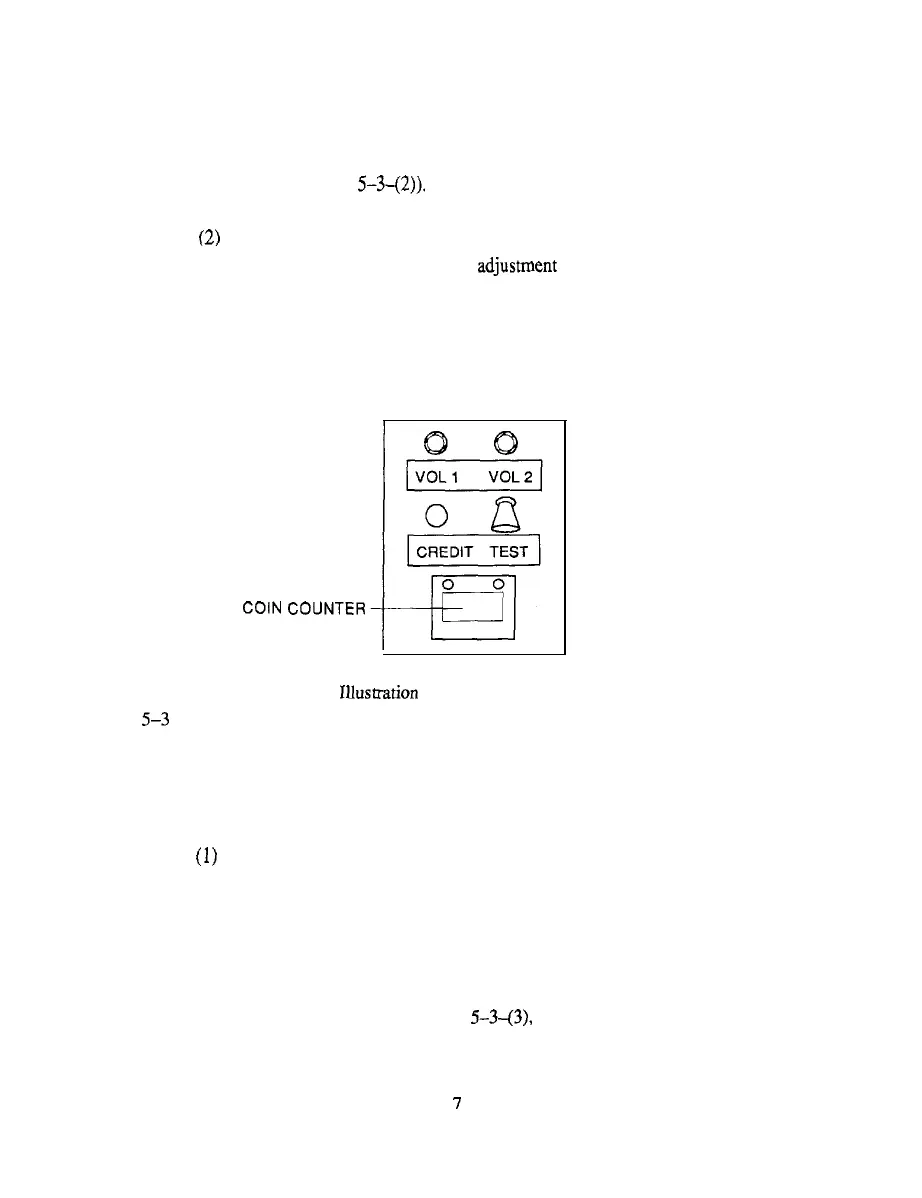

5-1, SERVICE PANEL
5-3
Test Mode
The self-test function is activated by using the test switch. There are five (5)
kinds of test mode screens where the game pricing is changed and where various
tests for each control are performed.
(1)
Self-test
Open the coin door and flip the test switch to the “ON” position. If the game
Printed Circuit Board is operating properly, the “Game Option Screen” is
displayed on the monitor, Pressing the credit switch while in the Game
Option Screen causes the various Test Screens 1 through 5 (Switch Test Mode
Screen, ADS (Bookkeeping) Mode Screen, Cross Hatch Pattern (2) and Color
Bar Test Screen) to appear. (Ref. 5-3-(3), “Test Mode Screens”, for infor-
mation regarding each screen).
