4. INSTALLATION
&l
Installing Game Cabinet
a.
Each Cabinet has two casters (one on each rear comer) and a Moving Assist
Handle located on the upper portion of the cabinet back to allow for easy
roll-
in and positioning of the game.
b.
Tilt and roll the cabinet near to its intended operating position, and lower the
four (4) leg levelers, one on each comer of the cabinet, until the game rests
firmly on the floor.
c.
Note that the cabinet design provides for front servicing through the “swing-
down” Control Panel illustrated below. This provides front access to the
Monitor Adjustment Board, the game PCB, and the Steering and Shift
Assemblies. This eliminates the need for the technician to move the game
away from the wall to service these components.
d.
Remove the three (3) security bolts on the top edge of the Control Panel, and
carefully (its heavy) swing it down on its hinge to open.

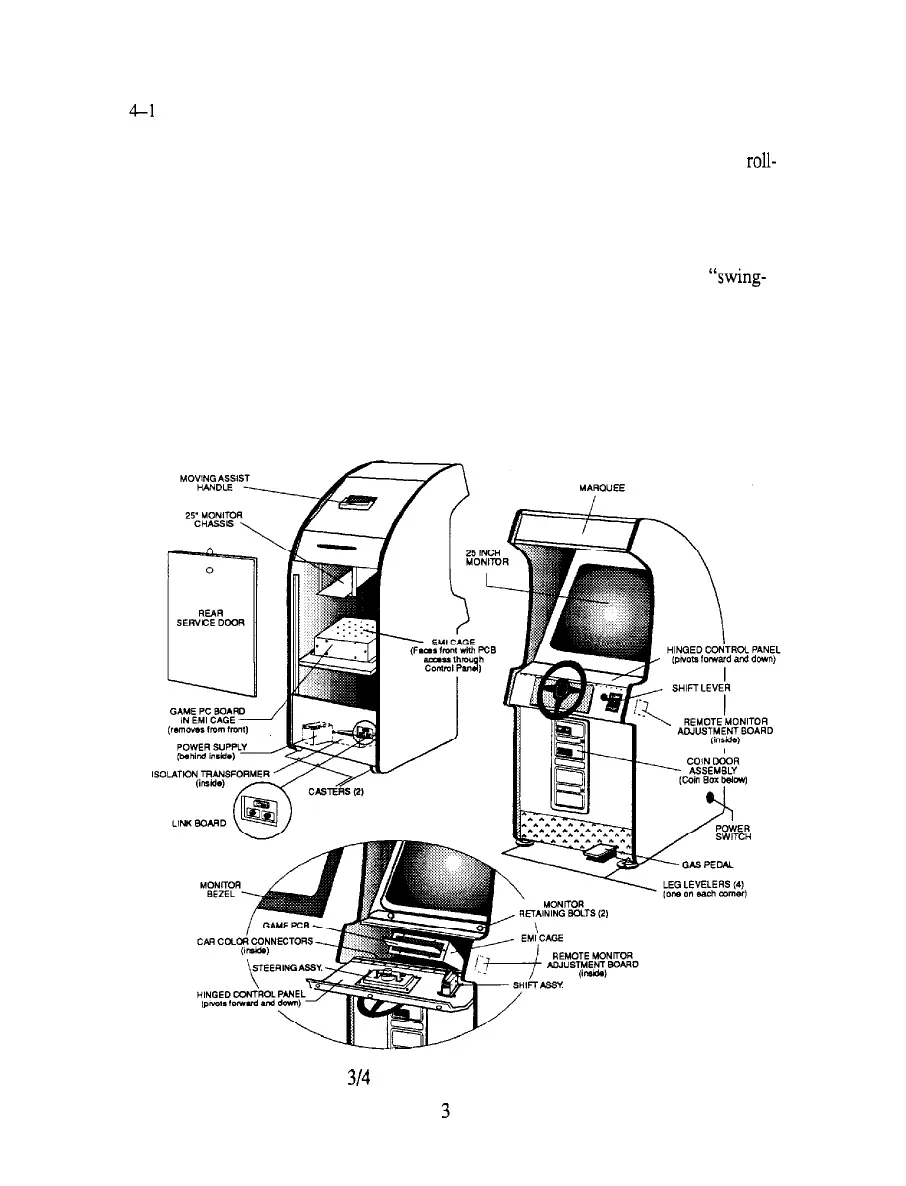

Illustration 4-1,
3/4
FRONT and BACK VIEW OF GAME
