NAMCO FINAL LAP 3 UPRIGHT User Manual

7. MAINTENANCE
Be sure to turn the power off before conducting any maintenance procedures.
7-l Opening the Control Panel
Remove the upper three (3) security bolts with the wrench provided.
Pivot the control panel open on the bottom control panel hinge. The Control
Panel is heavy, OPEN WITH CAUTION.
REMOTE MONITOR

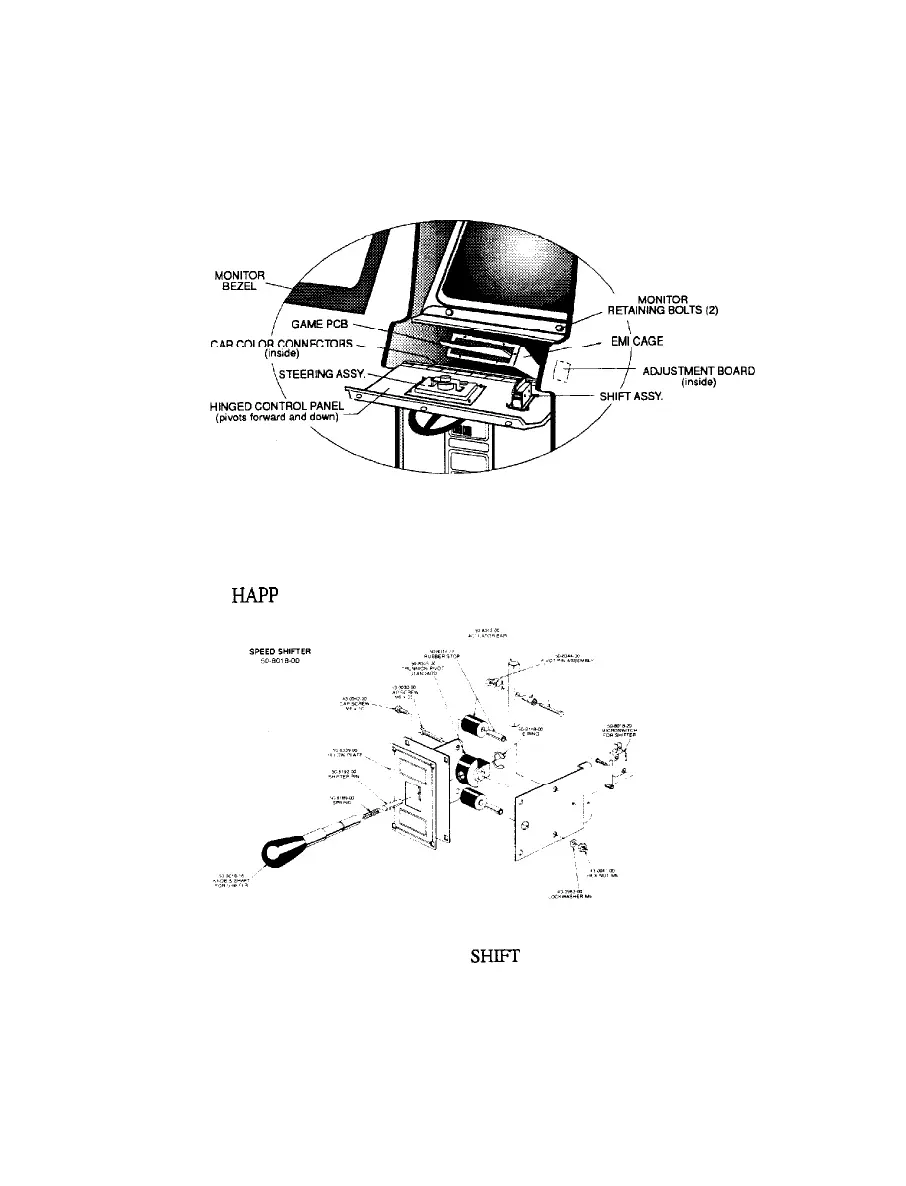

Illustration 7-1, OPENING CONTROL PANEL
NOTE: FINAL LAP 3 uses HAPP CONTROLS shift, steering and gas
pedal mechanisms.
7-l-l HAPP CONTROLS Shift Assembly
NOTE: Numbers shown are Happ Controls Part Numbers.
Illustration 7-2, HAPP SHIPI ASSEMBLY
(1) Open the control panel. (Ref. 7-l)
(2) Disconnect the wires from the shift assembly.
(3) Remove the four (4) sets of nuts which hold the shift assembly, then
the assembly can be removed toward the front. (When reassembling,
be sure to set “LOW’ at the upper side).
13
