NAMCO FINAL LAP 3 UPRIGHT User Manual

2. ADS Mode Screen (Bookkeeping for FINAL LAP 3)
The ADS screen denotes the four race tracks individually. The ADS keeps count
of the number of times the particular track was selected and played, and the num-
ber of laps completed on that track.
This provides an operator the ability to keep
track of the most played nacks. To clear the system (reset count to all o’s) shift
gears from LOW to HIGH. The “ADS CLEAR?” question should read “YES”.
Exiting the test screen will reset all the counters.
3. Cross Hatch Pattern Screen, (Ref. 541)
4. Cross Hatch Pattern Screen with White Block Adjustment. (Ref. 542)
5. Color Bar Test Screen. (Ref. 543)
54 Monitor Adjustments
The monitor remote adjustment control is located behind the control panel on the
right front of the cabinet side wall, and is accessed by opening the control panel.
IO ‘~““““““”
B B B
VR103 VR102
VRlOl
I3 D B
IO
VR106 VR105
VR104 0 I
TOP ROW - LEFT TO RIGHT SW-TOM ROW - LEFT TO RIGHT
YR 103 VERTlCAL PosrrlON “R 106 HORlZONTAL PcsmlON
YR 102 BLACK LEVEL “R 105 VERTICAL HOLD
VR 101 -CONTRAST VR ?04 VERTiCALSUE

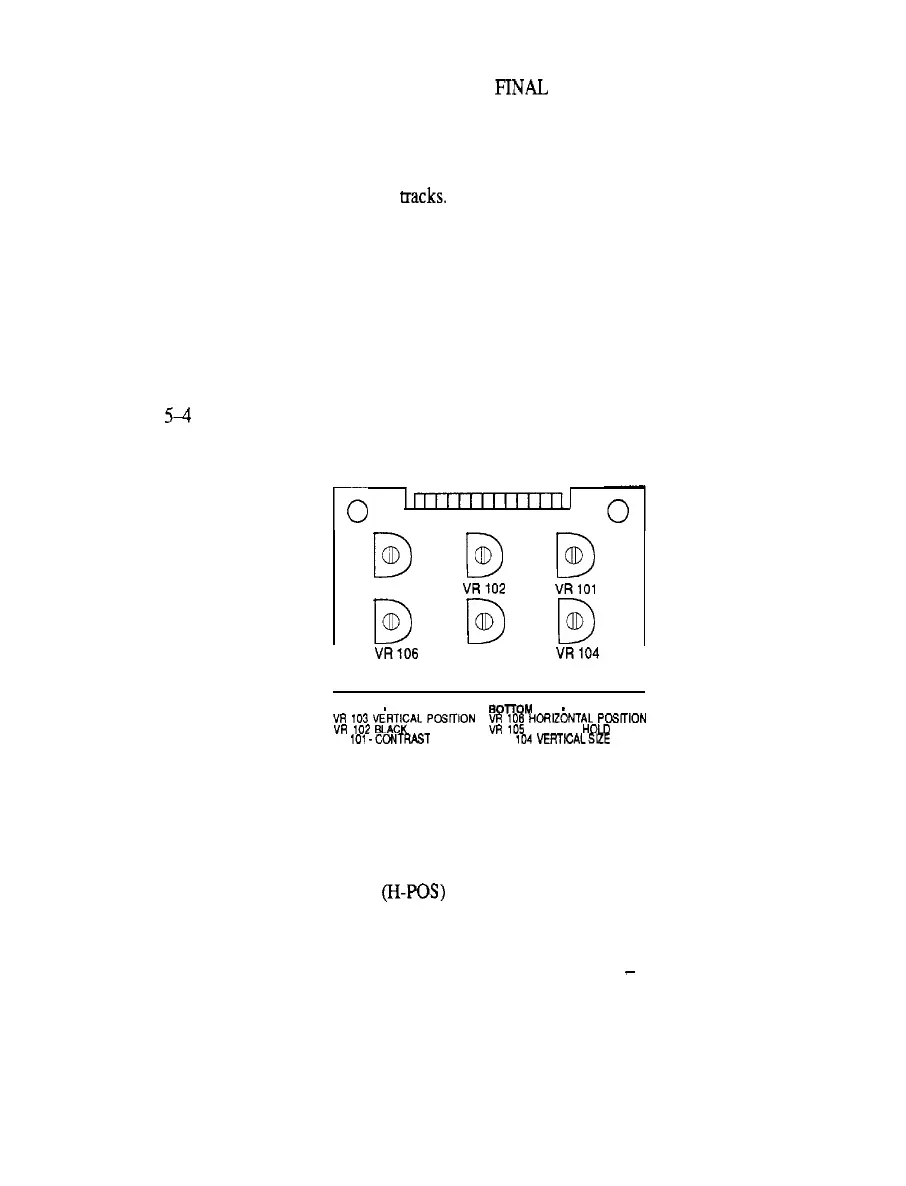

Illustration 5-5, MONITOR REMOTE ADJUSTMENT BOARD
541 Cross Hatch Pattern
To center cross hatch pattern:
l Use VR 103 (V-POS) to adjust cross hatch UP or DOWN.
l Use VR 106 @I-POS) to adjust cross hatch LEFT or RIGHT.
542 Cross Hatch Pattern with White Block Adjust
White block adjustment should not be necessary - just insure that block is
centered in the cross hatch, and is white. If it is not, call a qualified
Service Technician.
10
