(3) Test Mode Screens

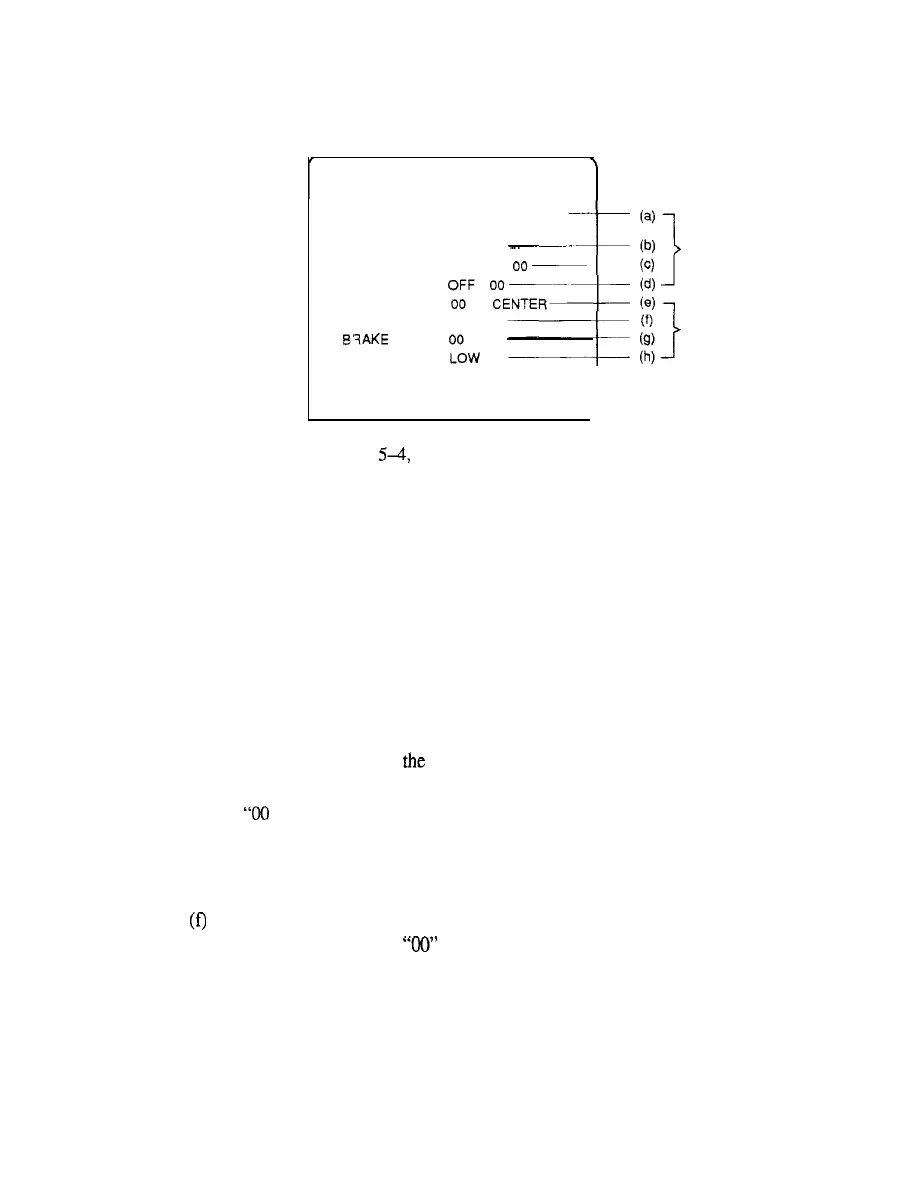

1. Switch Test Screen
,
SWITCH TEST
DIP SW 12345676
i TEST SW ON
-~--
COIN1 SW OFF
OO-
COIN2 SW
HANDLE
THROTTLE 00
B?AKE
SHIFT
Selectable
Non-selectable
Illustration
5a,
SWITCH TEST SCREEN
(a) The status of the option switches on the game PCB (CPU-PCB) is indicated
by this display. Any number opposite DIP SW (switch) that is lighted red
indicates that it is turned on.
(b) A lighted red “ON” opposite TEST SW (switch) indicates a normal condition.
(c) When the coin 1 switch is closed, a lighted red “ON” appears indicating
proper operation. The number displayed indicates the number of times the
switch has been triggered. The coin counter will also advance.
(d) When the coin 2 switch is closed, a lighted red “ON” appears indicating
proper operation. The number displayed indicates the number of times the
switch has been triggered. The coin counter will also advance.
(e) Under normal conditions,
the
following displays result from operating the
steering wheel.
1) “00
CENTER” is shown with hands off the steering wheel.
2)
When the wheel is turned to the left, the word “LEFT” and decreasing
numbers indicating degree of turn are shown.
3)
When the wheel is turned to the right, the word “BIGHT” and increasing
numbers indicating degree of turn are shown.
(f)
Pressing the gas pedal down gradually increases the number and “OK” will be
displayed if all is normal.
“M)”
should be displayed when the pedal is not
depressed.
(g) The Upright version of FINAL LAP 3 does not use a brake function or a
brake pedal.
(h) Moving the position of the shift lever from High to Low should produce a
matching “HIGH’ or “LOW’ display indicating normal operation.
9
