(CAUTION)
*
Make the Link Cable as short as possible to insure best signal transmission.
*
Link Cables transmit electronic data between games and are subject to elec-
tronic interference.
*
Install the Link Cable as far from other room cables as possible.
LINKING TWO CABINETS
LIIlimm
i_,,
Jlza
At,
LINK CABLE
LINKING THREE UP TO EIGHT CABINETS
LINK CABLE

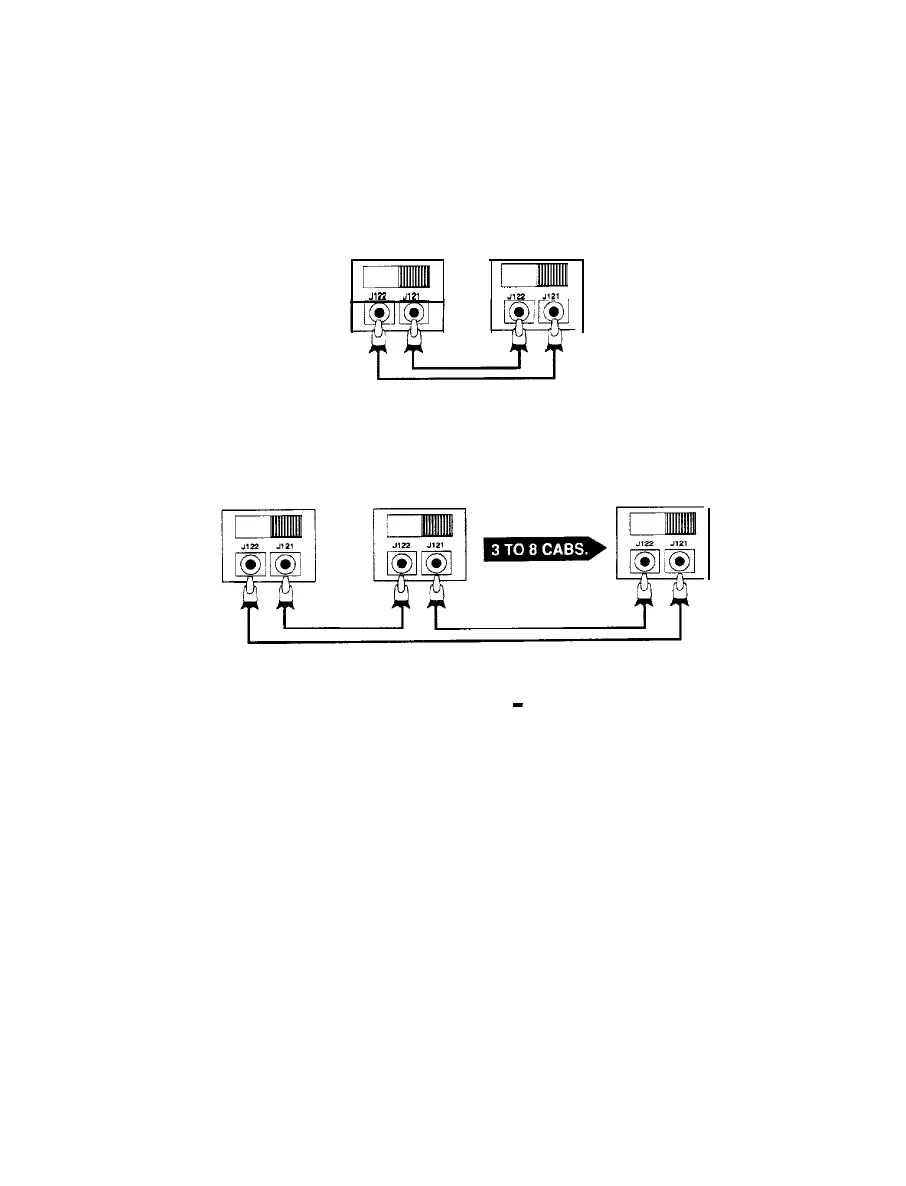

Illustration 4-3, LINK CONNECTIONS
-
2 to UP TO 8 CABINETS
4-4
Power On/Off Switch location
The power supply is located inside the back of the cabinet and accessed through
the Rear Service Door.
The on/off switch is accessed through an opening on the lower right rear side (as
you face the game) of the cabinet.
