NANO D3 - Premium Controller HMI Features

19
heatless desiccant air dryer
D3
1
start button;
the dryer is ready to start-up.
Press to Start.
stop button;
the dryer is ready to shutdown.
Press to Stop.
2
menu;
access to the menu structure.
3
general information
view the model number, serial number, build date and
installation date.
4
service information;
access total hours, hours run since last service and
service provider details.
service reminder;
the dryer will require a service soon.
sevice required
the dryer requires a service.
5
alarm records;
access alarm and event logs such as low inlet pressure
and high purity alarm.
alarm records;
minor alarm is active.
alarm records;
major alarm is active

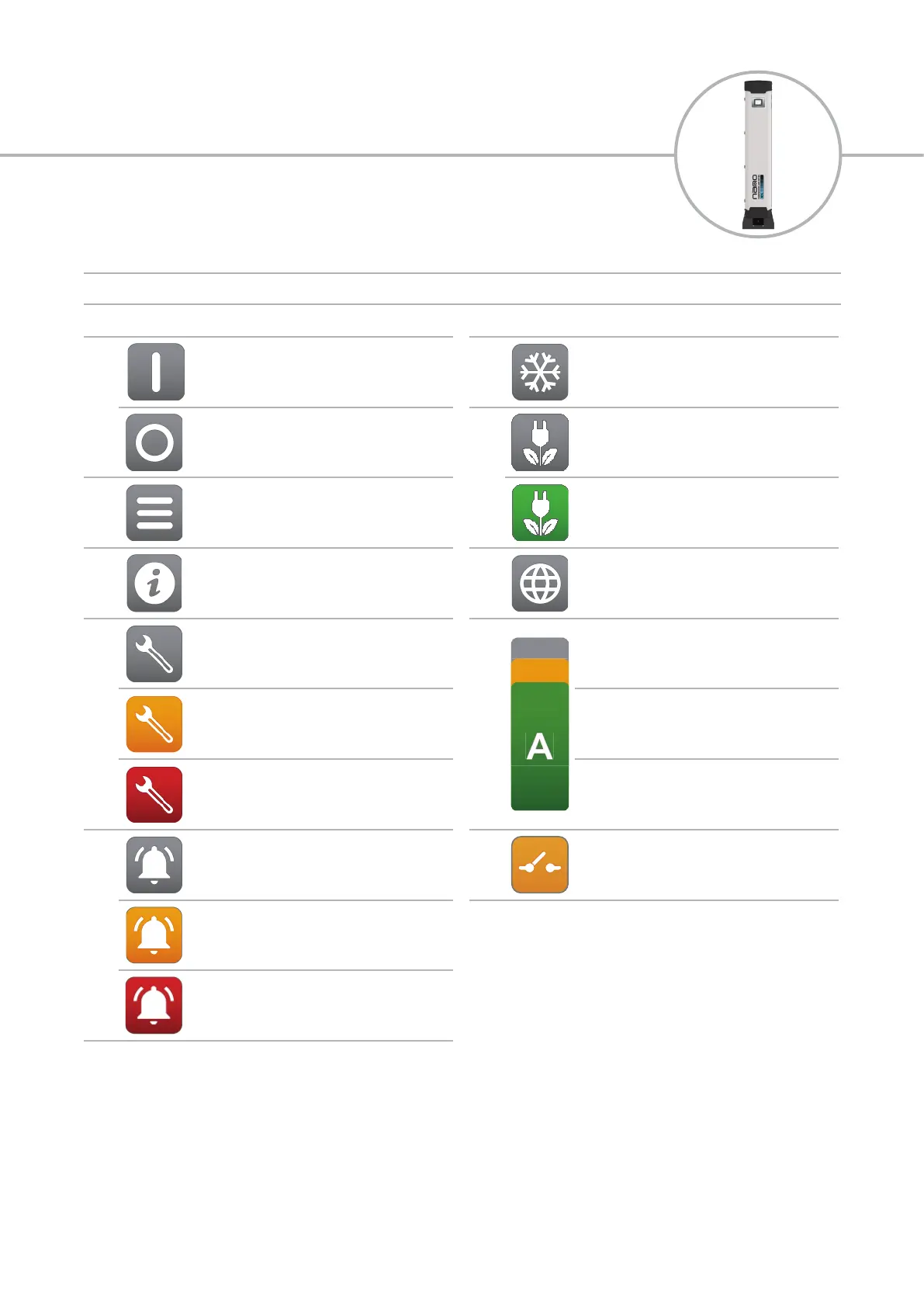

HMI display features - premium controller
No. symbol description No. symbol discription
6
dew point status;
access to the outlet dew point measurement
(optional extra)
7
economy;
access total hours in economy, percentage savings
economy;
if ashing green the dryer is in energy saving mode
8
language selection;
access to different languages such as french and
german.
9
column status;
when grey. column A and/or B is ofine.
column status;
when amber, column A and B is equalising.
column status;
when green, column A or B is online and
producing gas.
10
remote start/stop;
the generator is/has shutdown due to the
remote start connection being broken
