NANO D3 - Product Dimensions

7
heatless desiccant air dryer
D3
DIMENSION A
DIMENSION C
DIMENSION A
OUTLET
DIMENSION E
OUTLET DIMENSION D
DIMENSION B DIMENSION B

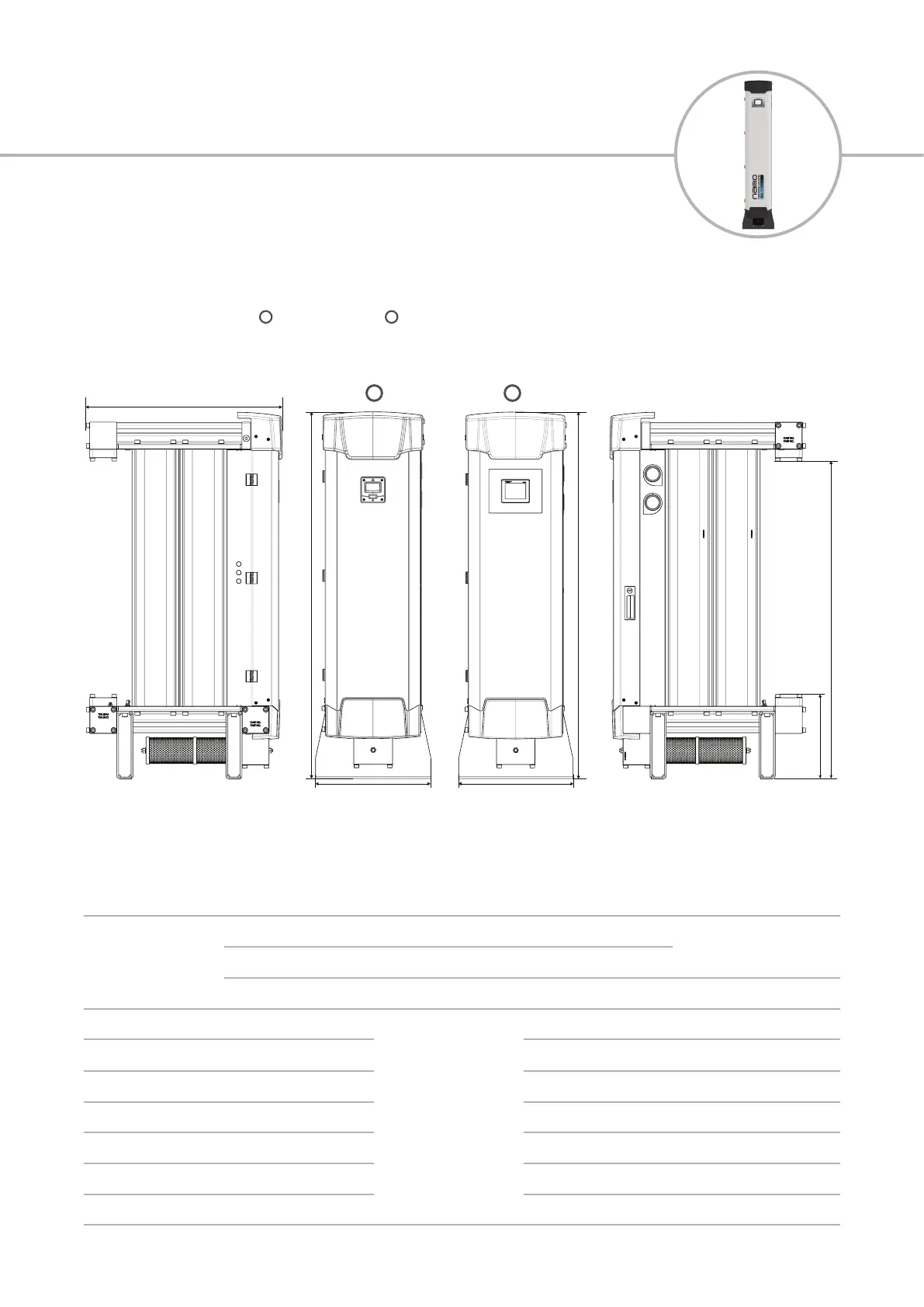

2.2 product dimensions
model
dimension
weight
A B C
mm inches mm inches mm inches kg lbs
NDL - 2110 1283 50.51
400 15.7
680 26.77 97 214
NDL - 2120 1533 60.35 680 26.77 179 394
NDL - 2130 1883 74.13 680 26.77 261 575
NDL - 3130 1883 74.13 849 33.42 249 548
NDL - 4130 1883 74.13 1017 40.03 331 729
NDL - 6120 1533 60.35 1352 53.22 439 967
NDL - 6130 1883 74.13 1352 53.22 623 1373
below illustration shows standard & premium controller
A
A B
B
DIMENSION C
DIMENSION B
DIMENSION A
DIMENSION A
OUTLET
DIMENSION E
INLET
DIMENSION B
DIMENSION D
