9
heatless desiccant air dryer
D3

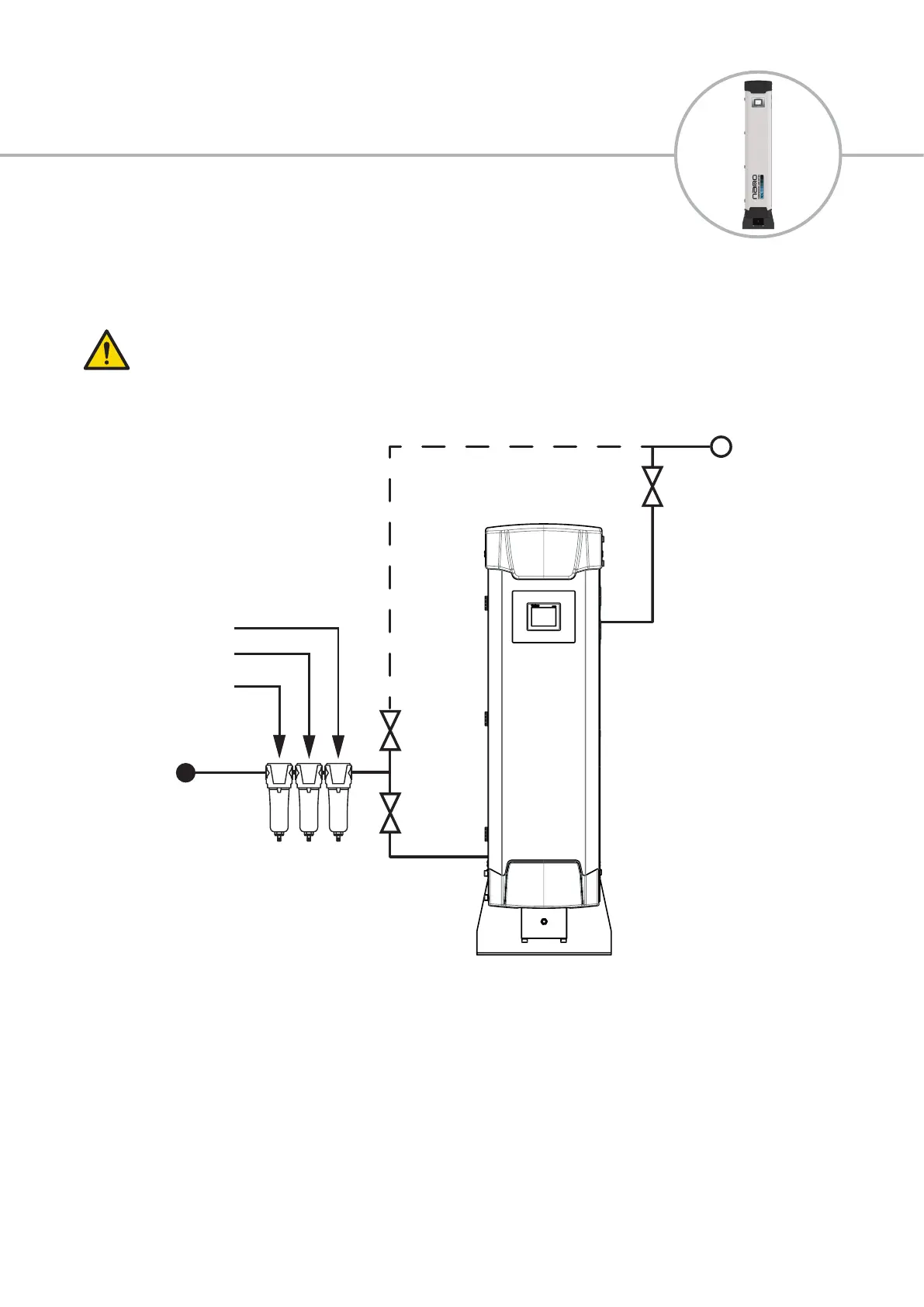

3.1 typical system layout
IMPORTANT: It is essential that the system into which the unit is installed is tted with a pressure limiting/
relief device. This device should be installed between the compressor and the unit.
By-pass
(optional)
0.01 µm filter
1 µm filter
water separator
(optional)
inlet flow
compressed
air outlet
compressed
air inlet
outlet flow
3.2 site location
When selecting an installation site for the unit, ensure the following conditions are met:
• Installation site should be located indoors on a at surface protected from the weather and other harmful conditions.
• The ambient temperature must not drop below 1.5°C (34.7°F) or exceed 50°C (122°F).
• The installation site should be level and able to support the weight of the product.
• Ensure sufcient space around the product, to allow access for operation and maintenance.
• Take into account the noise generated by the unit exhausting while in use when considering location.
